VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600 electrical parameters simultaneously. The use of VEGA74 is very simple and intuitive, thanks to the interface with color touchscreen display with icon structure. VEGA74 is ideal for solving problems deriving from low network quality, voltage anomalies, harmonics and high energy consumption which can then become much more harmful and complex phenomena to keep under control if neglected for too long. The measurements taken can be transferred to a PC with USB or WiFi connection with a dedicated software in order to analyze the data and create printed reports.
| 9 types of electrical systems | 1Φ-2 wires, 1Φ-center tap, 3Φ-3 wires, 3Φ-Aron, 3Φ-Δ Open, 3Φ-Y Open, 3Φ-2 el. 1/2, 3Φ-4 Y-wire, 3Φ-High Leg. |
| Integration with programmable period | 2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min, 15min, 30min |
| Three-phase Power quality and Energy consumption analysis: | Single-phase/Three-phase |
| AC/DC voltage in single-phase/three-phase systems | up to 600V |
| AC/DC current in single-phase/three-phase systems | up to 3000A |
| Voltage/current waveforms | |
| Active, reactive, apparent power/energy and DC power | |
| Voltage and current harmonics up to the 49th with THD | |
| Cosphi, Power Factor | |
| Voltage/current vector diagram | |
| Voltage unbalance (NEG%, ZERO%) | |
| Voltage Anomalies (dips and peaks) with a resolution of 20ms | |
| Summary table of main electric parameters | |
| Leakage Currents recording | |
| Recording Temperature and Relative Humidity | °C, °F, HR% |
| Recording of the Illuminance value | LUX |
| Indication of recording duration for mains analysis | |
| Touchscreen colour display | |
| Help on line on the display | |
| Measurement category | CAT IV 300, CAT III 350, MAX 600V between inputs |
| Size (LxWx H) (mm) | 225 x 165 x 75mm |
| Weight | 1.2kg |
*Not usable for the analysis of photovoltaic systems with SOLAR300N
VA500 is the ideal solution for those who want to protect their devices from water, dust and hostile environments. It is also suitable to contain all accessories for a perfect management of the job.

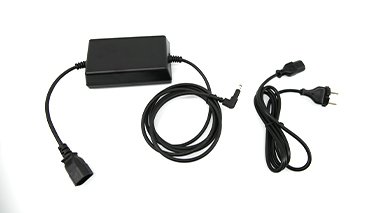

External power charger with shuko cable
TEMPERATURE
HUMIDITY
Soft bag with two big compartments to transport devices and accessories.
