GSC60 tester or all electrical safety tests and Power Quality analysis

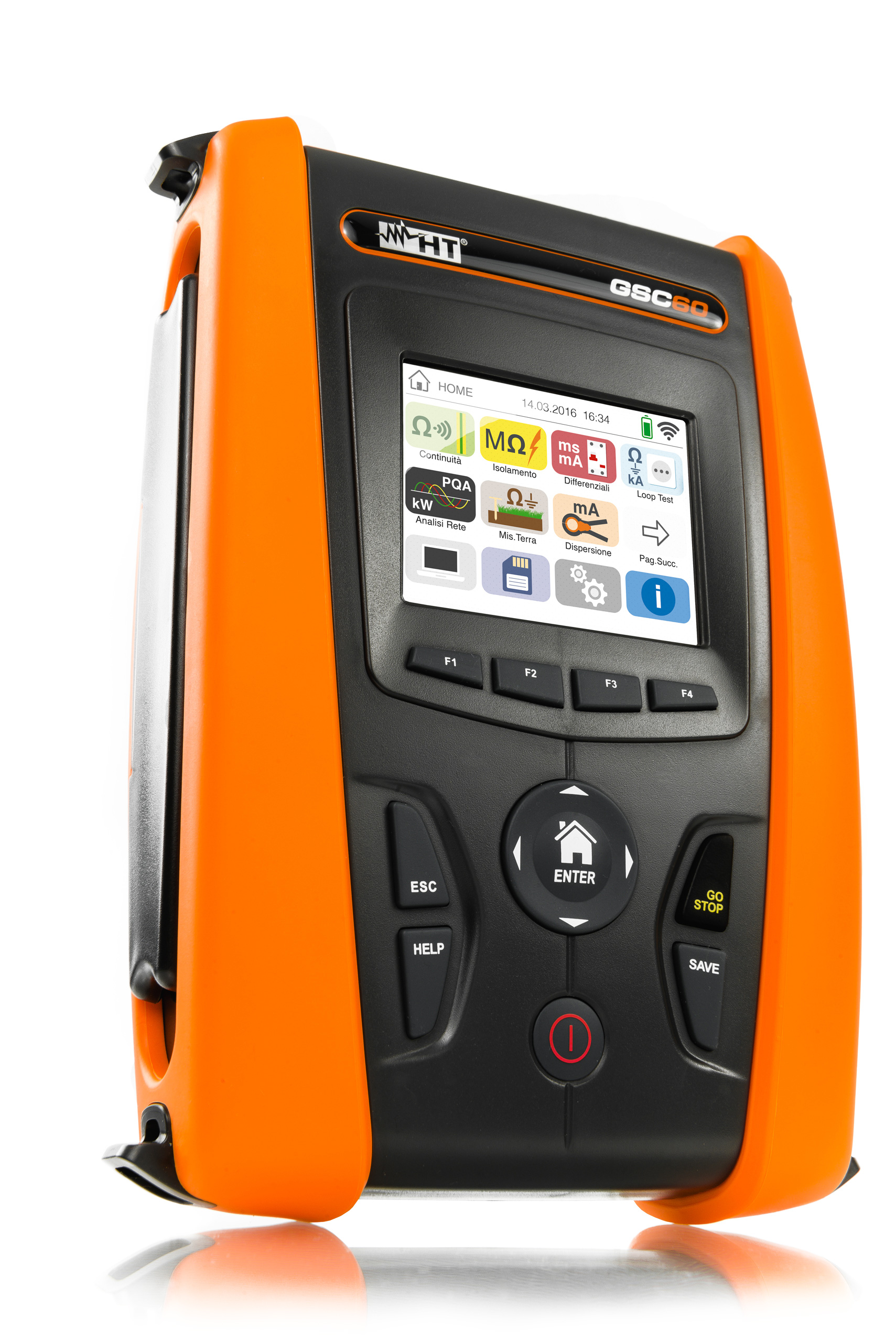

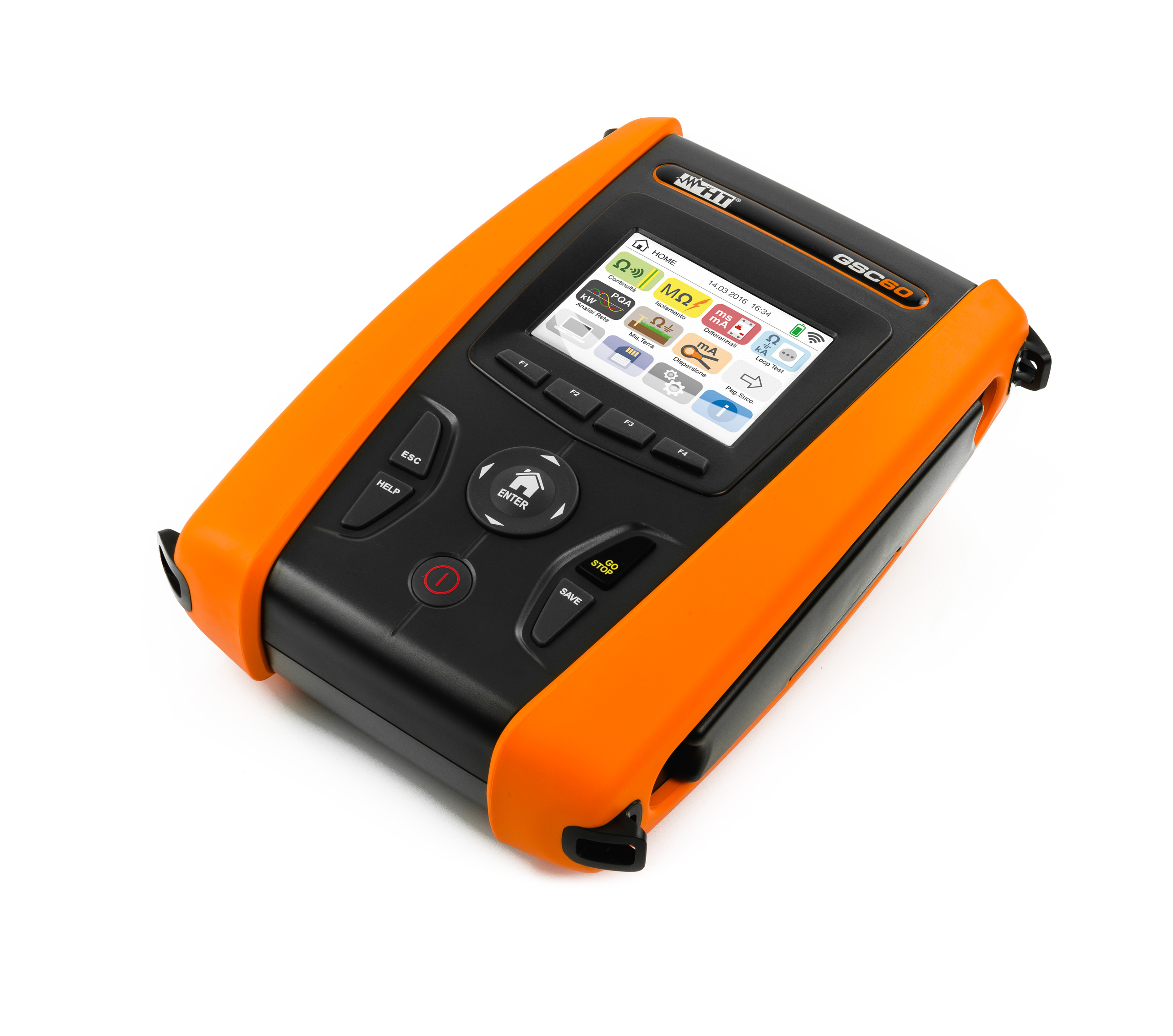

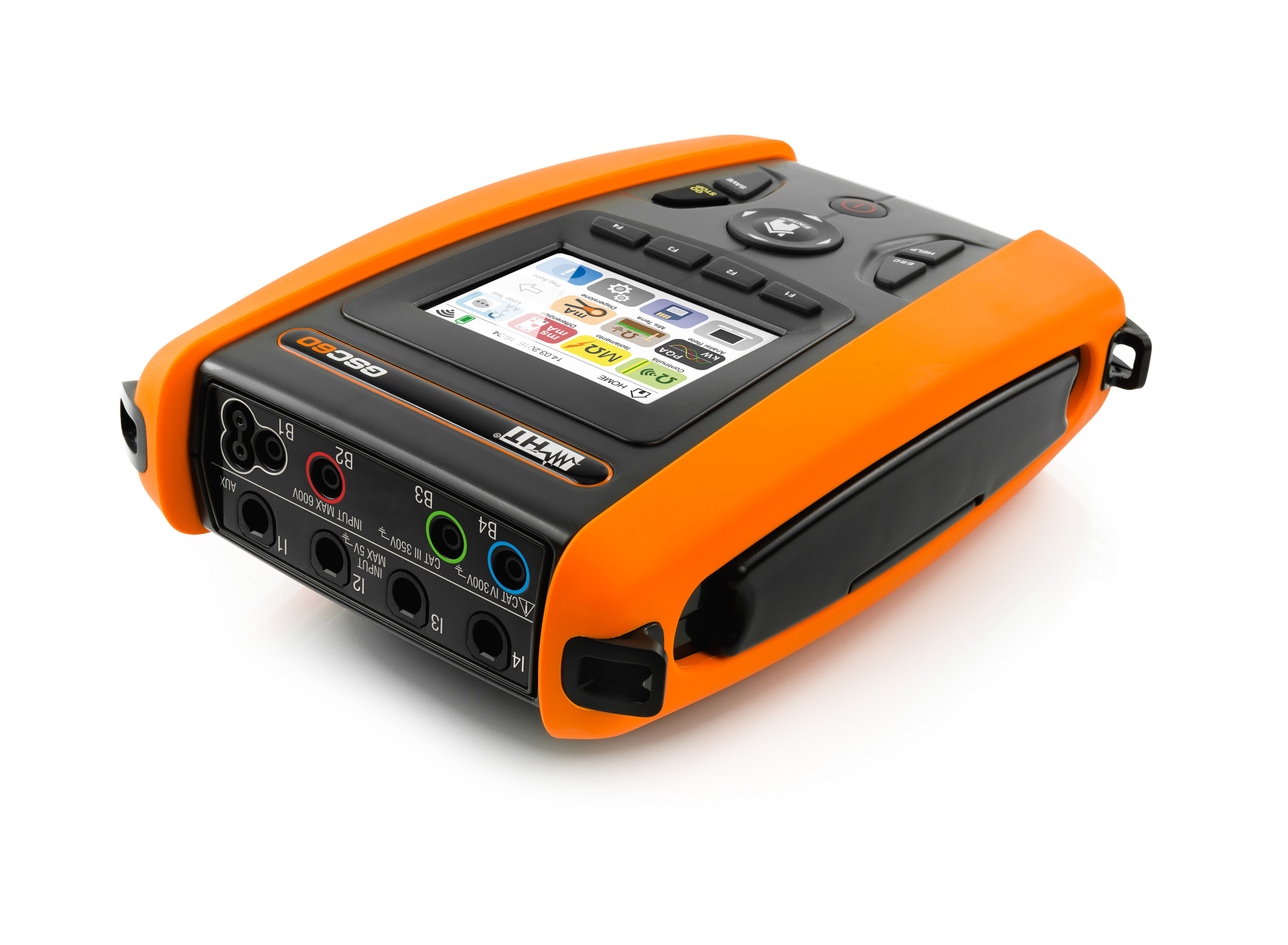

GSC60

One instrument for all electrical safety tests and Power Quality analysis

One instrument for all electrical safety tests and Power Quality analysis

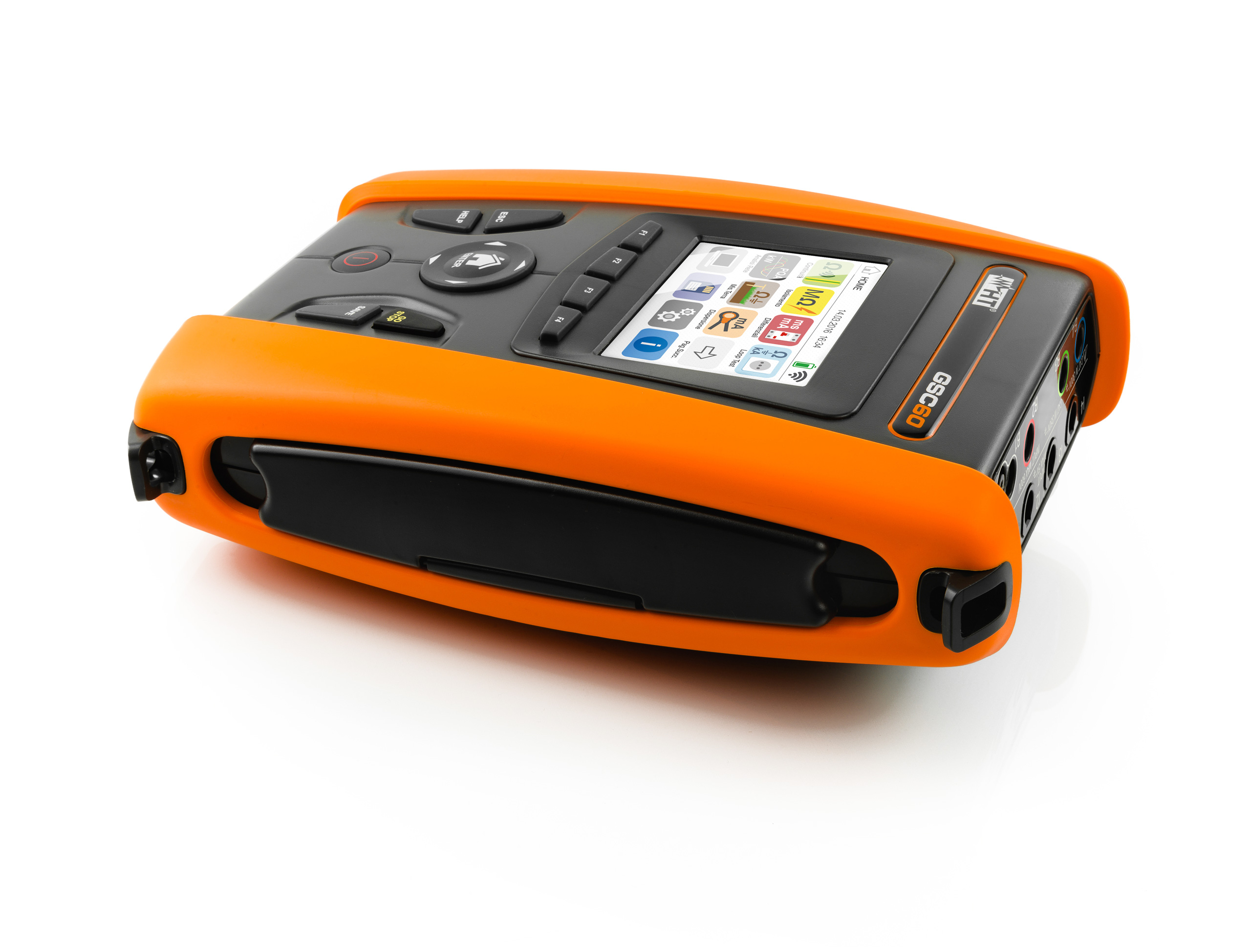

GSC60 was designed with the aim of making safety of electrical installations visible and valuable, easily and quickly.

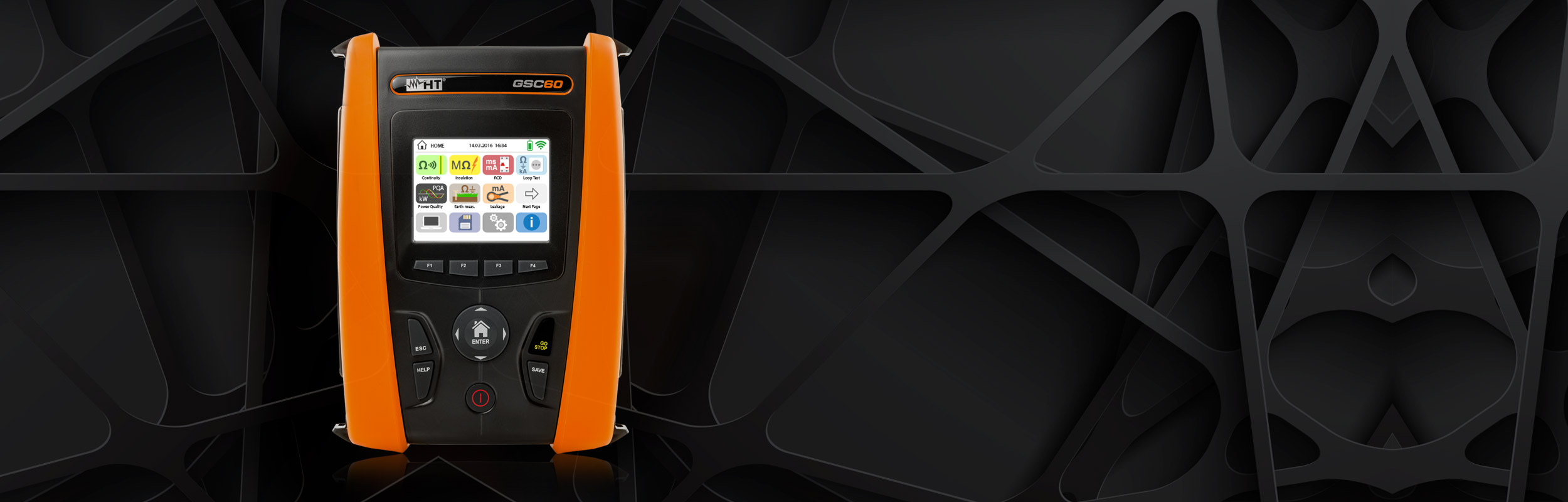

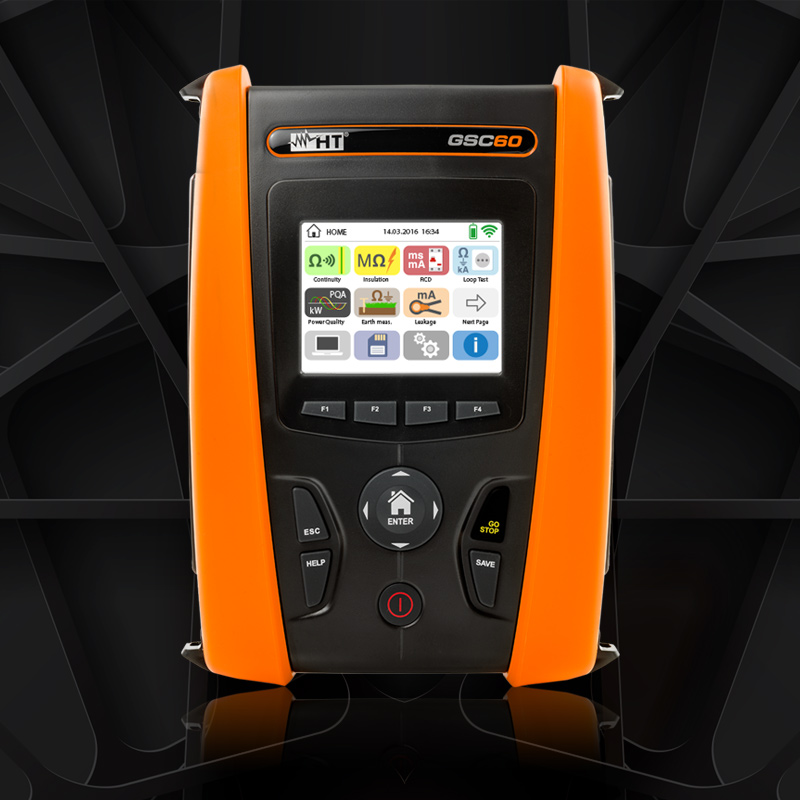

Thanks to the new HTOS™ system the unit displays a message OK - NOT OK after completing the test.
The user interface, totally updated under HTOS™, permits to set and carry out measurements in few steps.
You can store all recorded data and create folders and subfolders for each kind of test adding comments and notes by means of virtual keyboard.

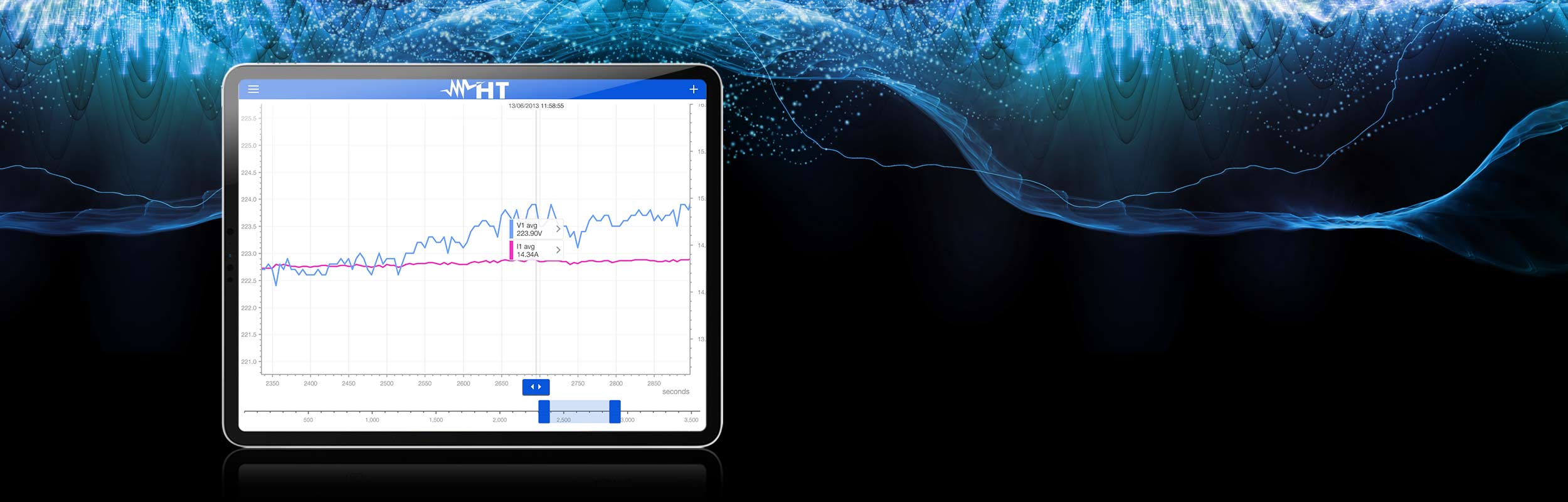

GSC60 is also a three-phase power and energy consumption analyzer boasting, as unique feature, its FREE APP HTAnalysis compatible with iOS and Android.

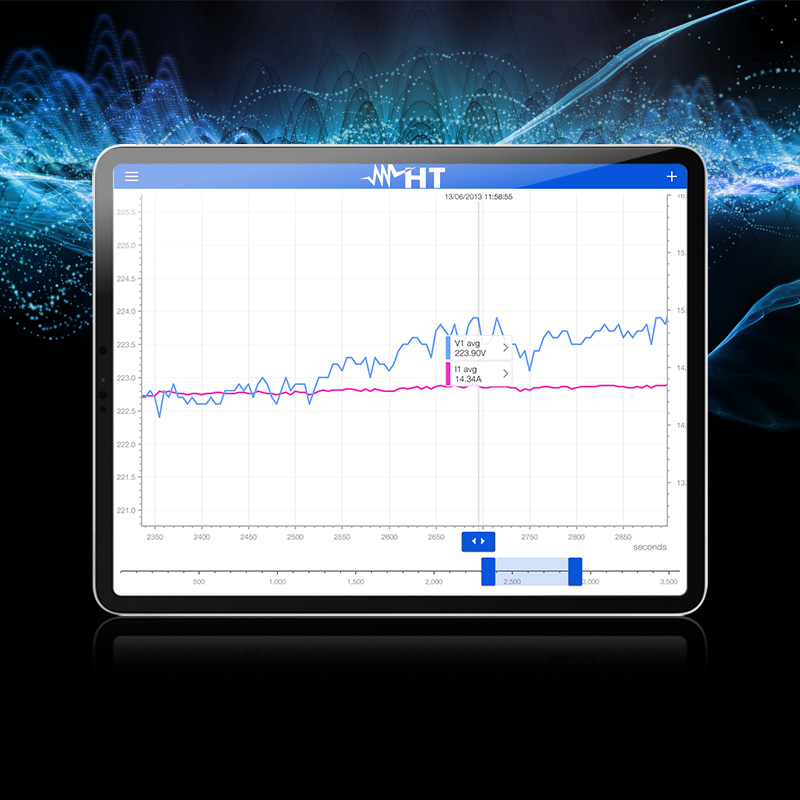

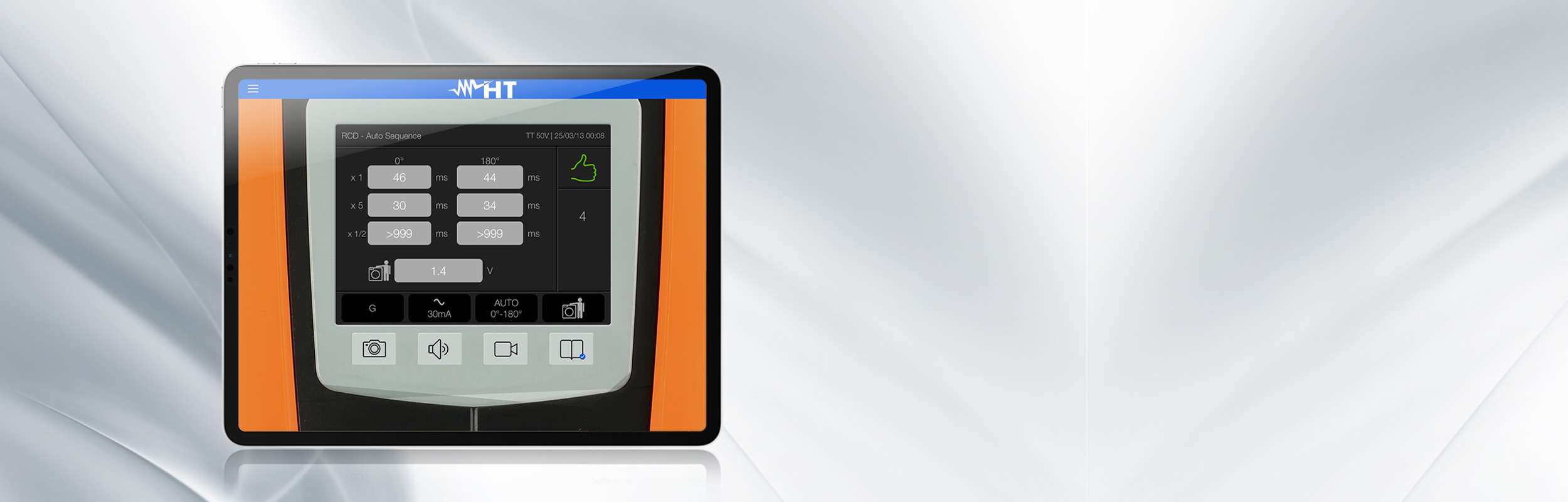

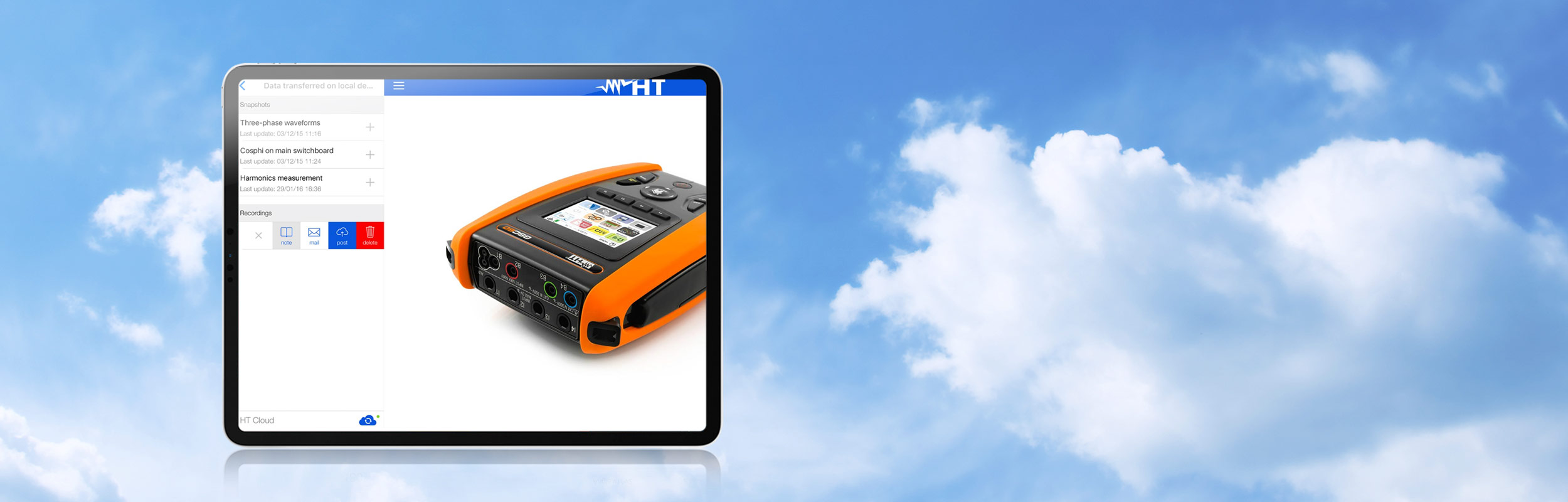

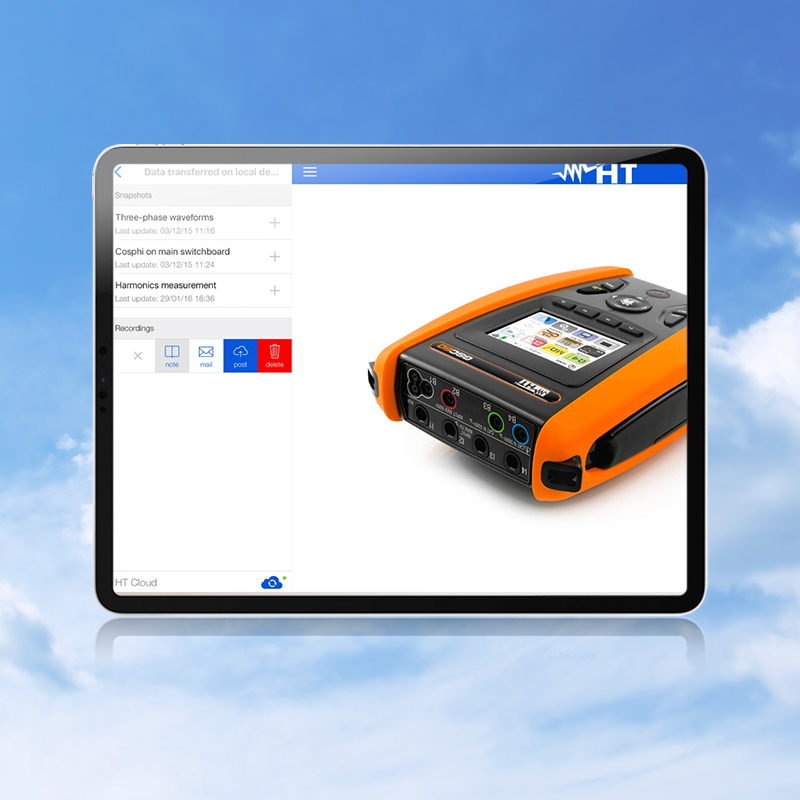

Test results can be transferred through Wi-Fi onto smartphone or tablet enclosing a picture, a video or a voice note to each measurement. You can transfer everything onto HT Cloud and make data available in real time for your colleagues all over the world.

GSC60 makes the job of installer, electrician or consultant easy, rapid and cost-effective.

Functions

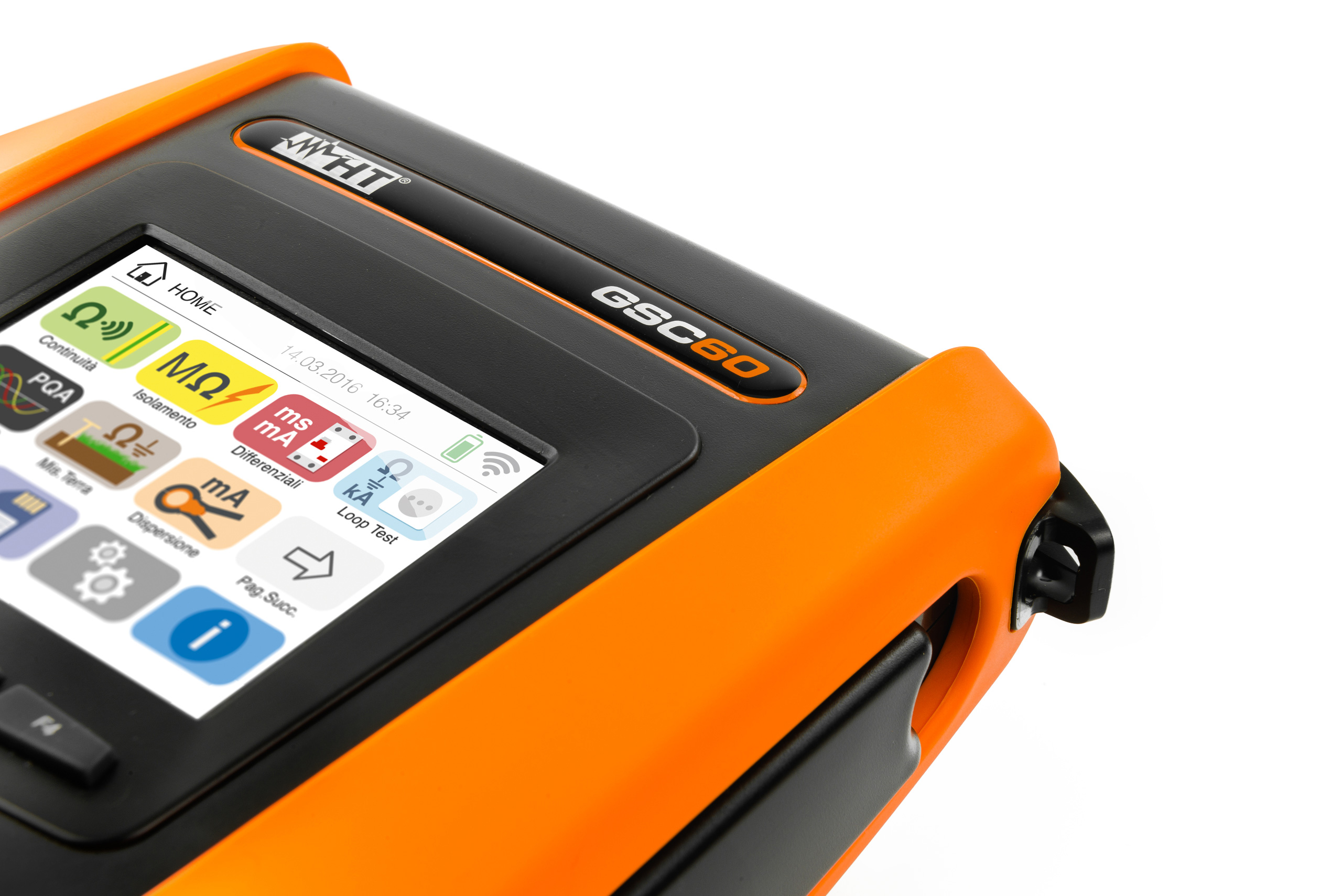

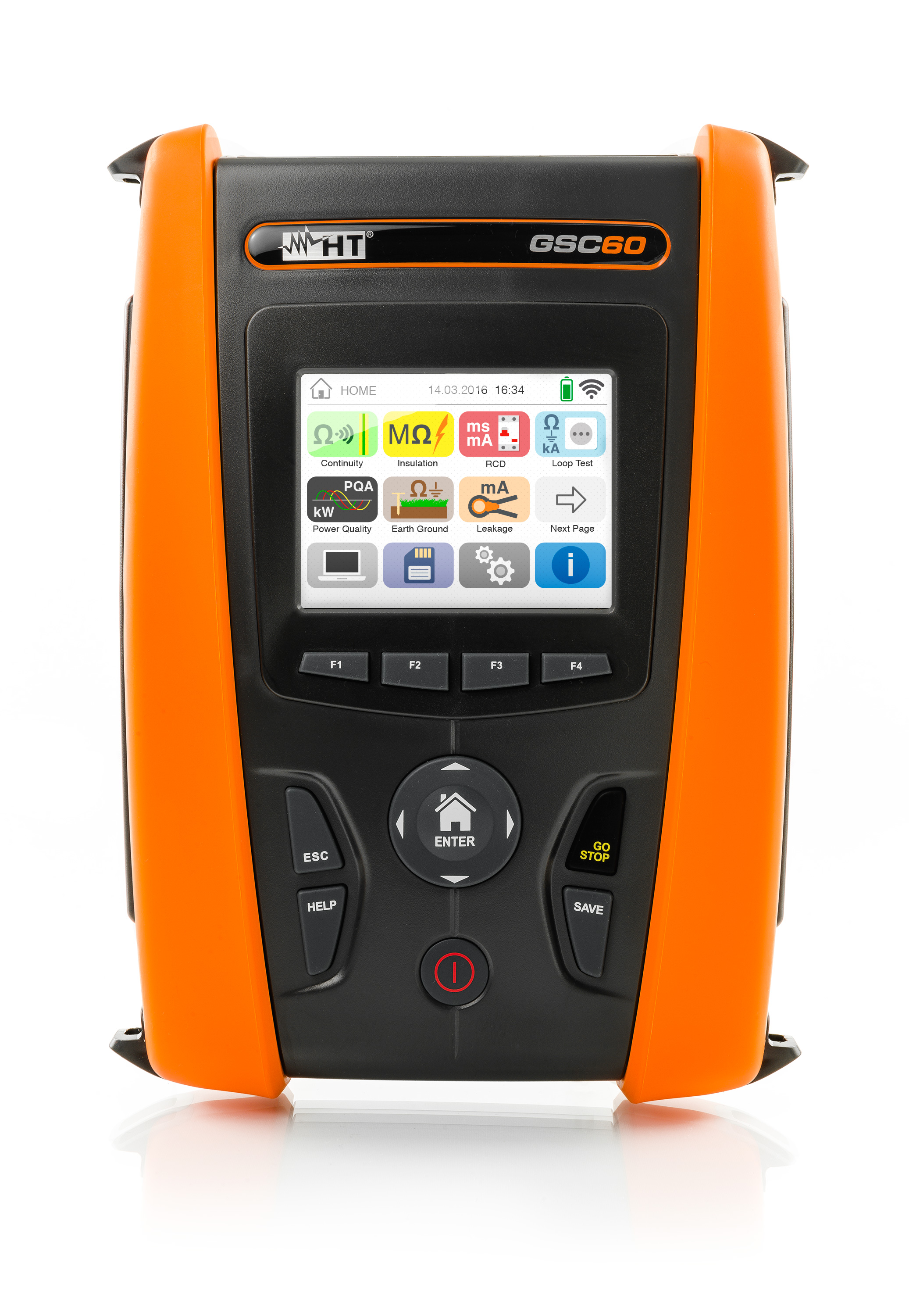

Touchscreen colour display
Integrated WiFi connection and compatibility with HTANALYSIS App
Continuity of protective circuit with 200mA
Continuity of protective conductors with 10A With optional accessory EQUITEST

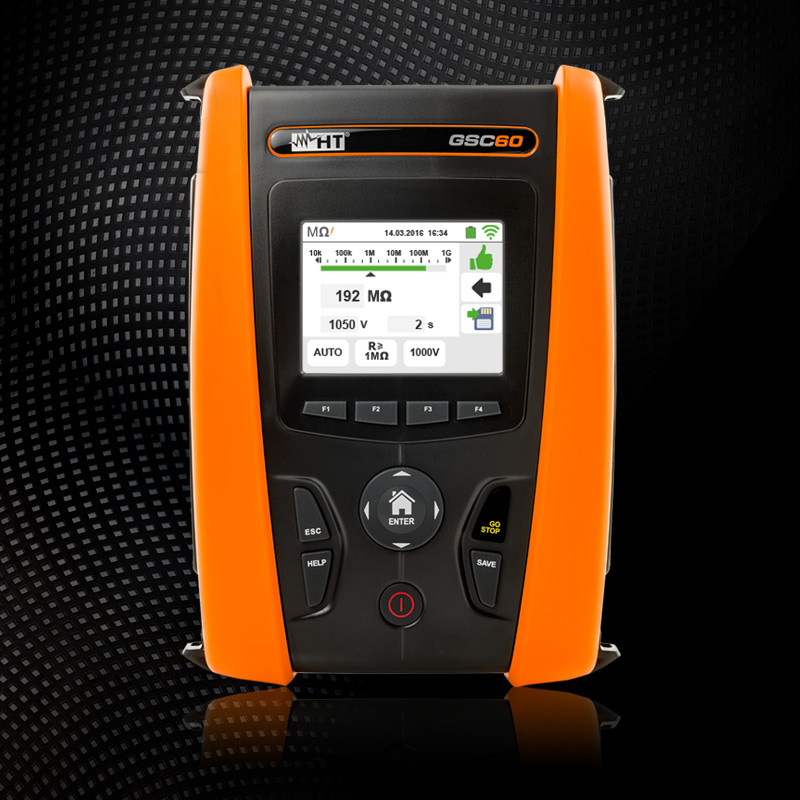

Insulation with voltage 50, 100, 250, 500, 1000VDC

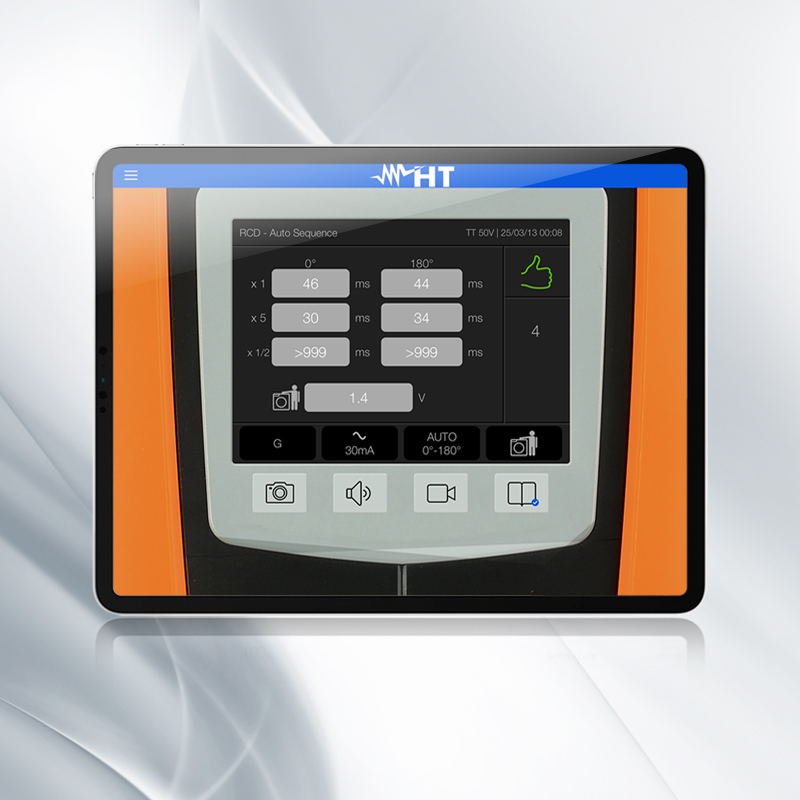

Time/Current tripping of A, AC General, Selective and Delayed RCDs up to 1000mA
Time/Current tripping of type B RCDs up to 300mA
Tripping time and current of RCDs with separate clamp jaws type B, A, AC Standard, Selective and Delayed up to 10A
Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current
Line/Loop impedance with high resolution (with optional accessory IMP57)
Percentage voltage drop on the line
Measurement and recording of leakage currents and environment parameters

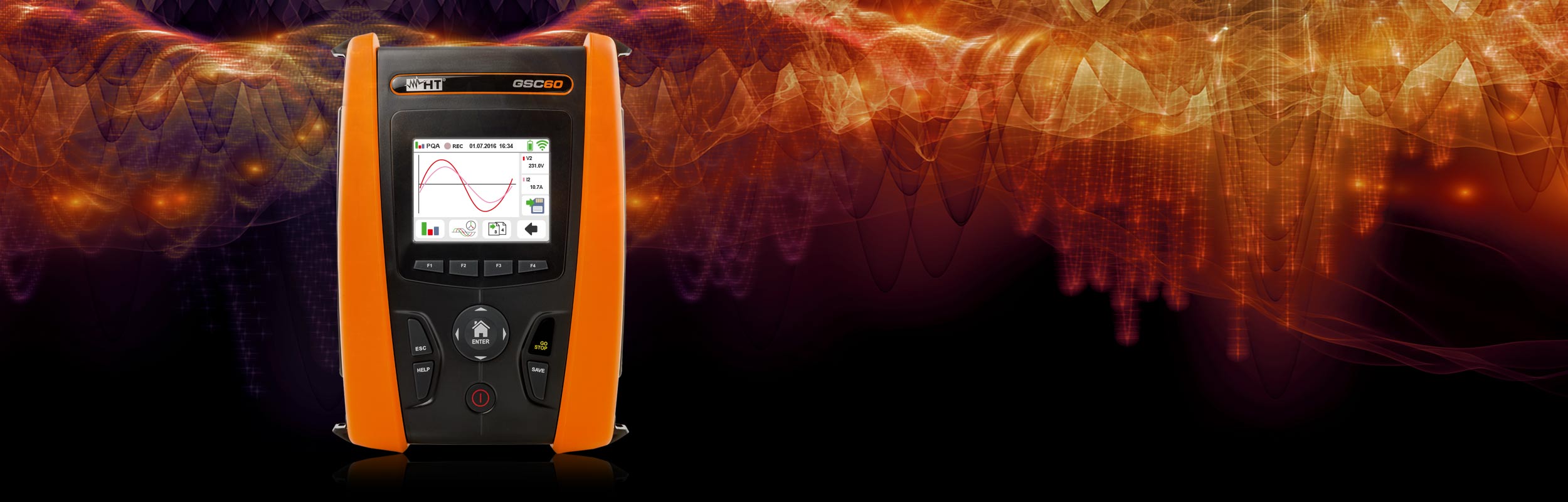

Three-phase Power quality and Energy consumption analysis:
9 types of electrical systems 1Φ-2wires, 1Φ-split phase, 3Φ-3 wires, 3Φ-Aron, 3Φ-Open Δ, 3Φ-Open Y, 3Φ-2 el. 1/2, 3Φ-4 wires Y, 3Φ-High Leg.
632 parameters can be recorded for over two months
Voltage Anomalies (dips and peaks) with a resolution of 20ms @50Hz
Measurement/recording of Active, Reactive, Apparent Power
Measurement/recording of Active, Reactive, Apparent Energy
Measurement/recording of Cosphi, Power Factor
Measurement/Recording of Voltage and Current Harmonics up to 49th with THD%

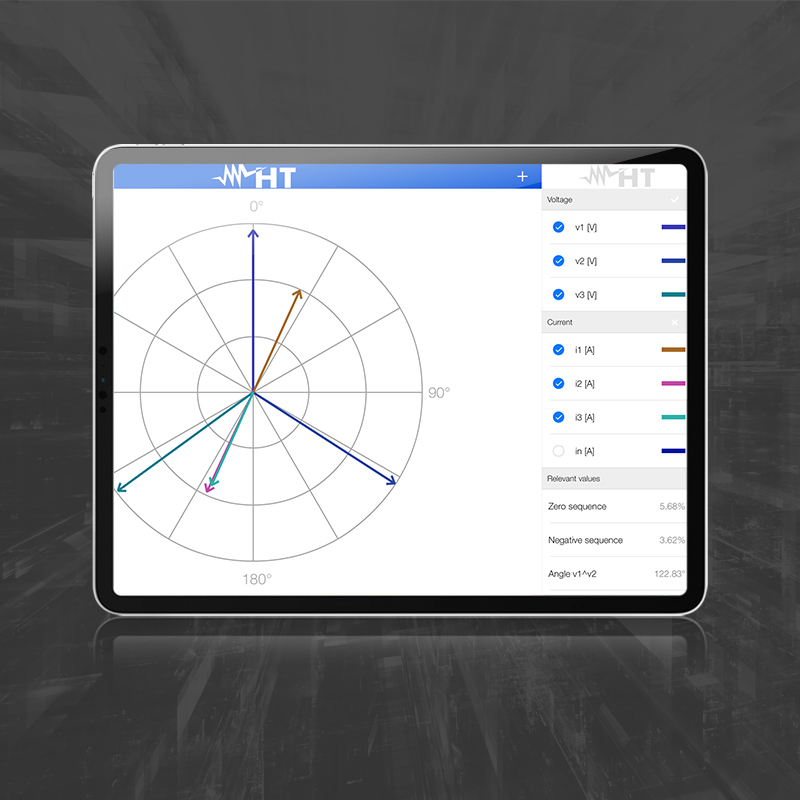

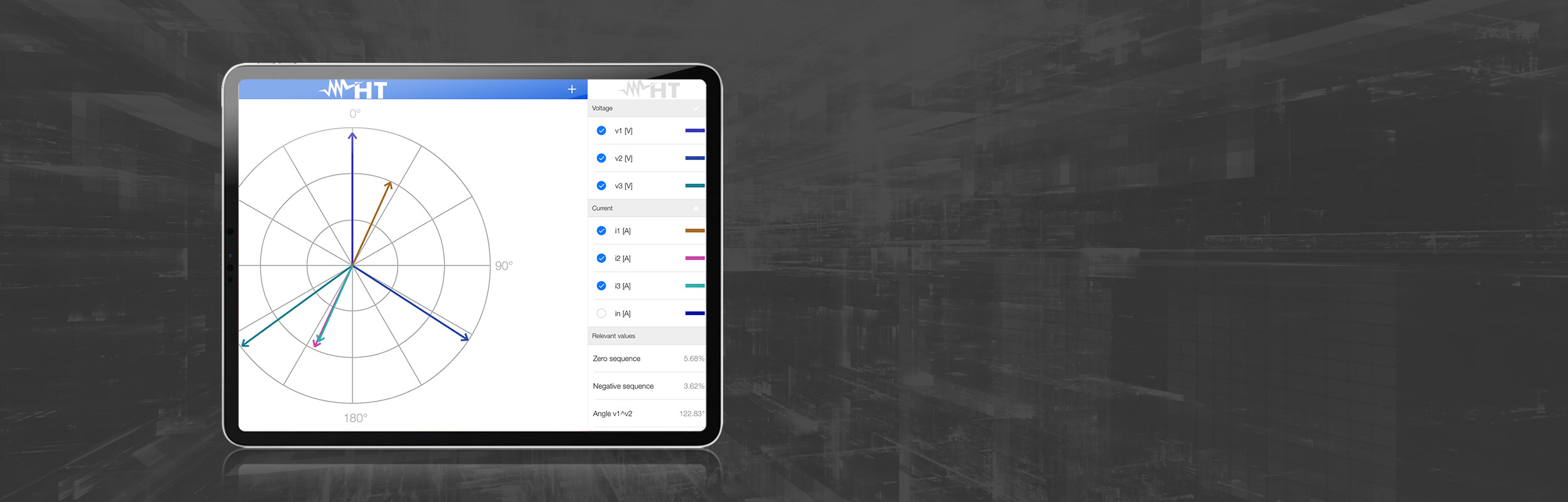

Voltage/current vector diagram

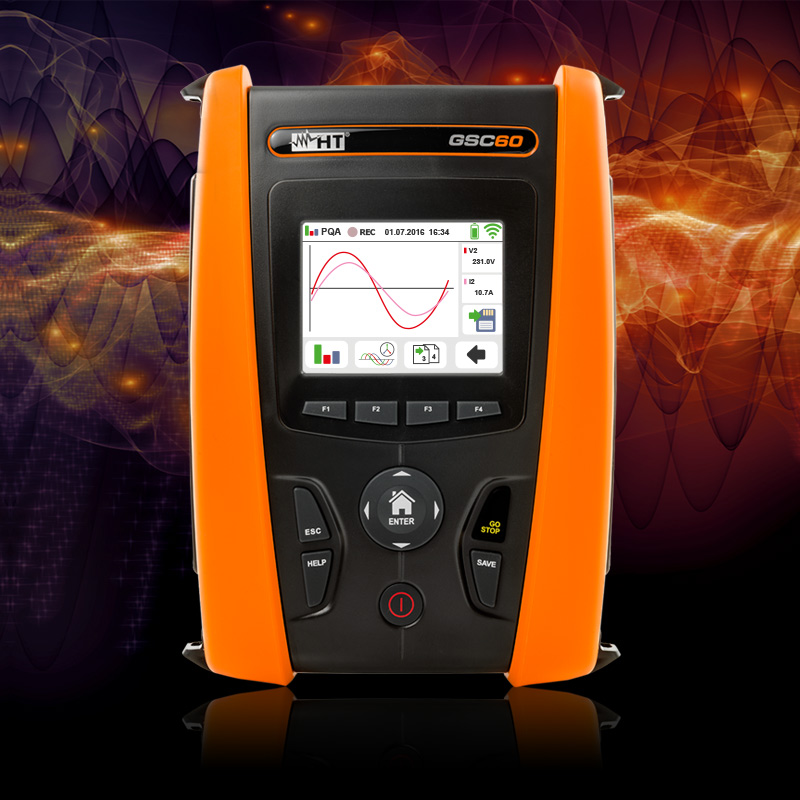

Voltage/current waveforms
Tables or histograms of Harmonics and THD%
Summary table of main electric parameters
Help on line on the display
Protection category CAT IV
Guidelines
  • EMC: IEC/EN61326
  • EN50160
  • EN50522
  • EN60909-0
  • EN61936-1
  • IEC/EN61010-031
  • IEC/EN61010-1
  • IEC/EN61010-2-032
  • IEC/EN61187
  • IEC/EN61557-1
  • IEC/EN61557-10
  • IEC/EN61557-2
  • IEC/EN61557-3
  • IEC/EN61557-4
  • IEC/EN61557-5
  • IEC/EN61557-6
  • IEC/EN61557-7
  • UNE20460

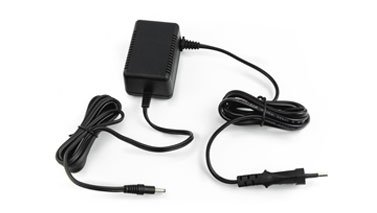

STANDARD ACCESSORIES
