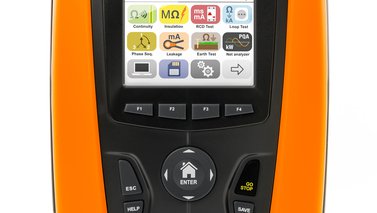

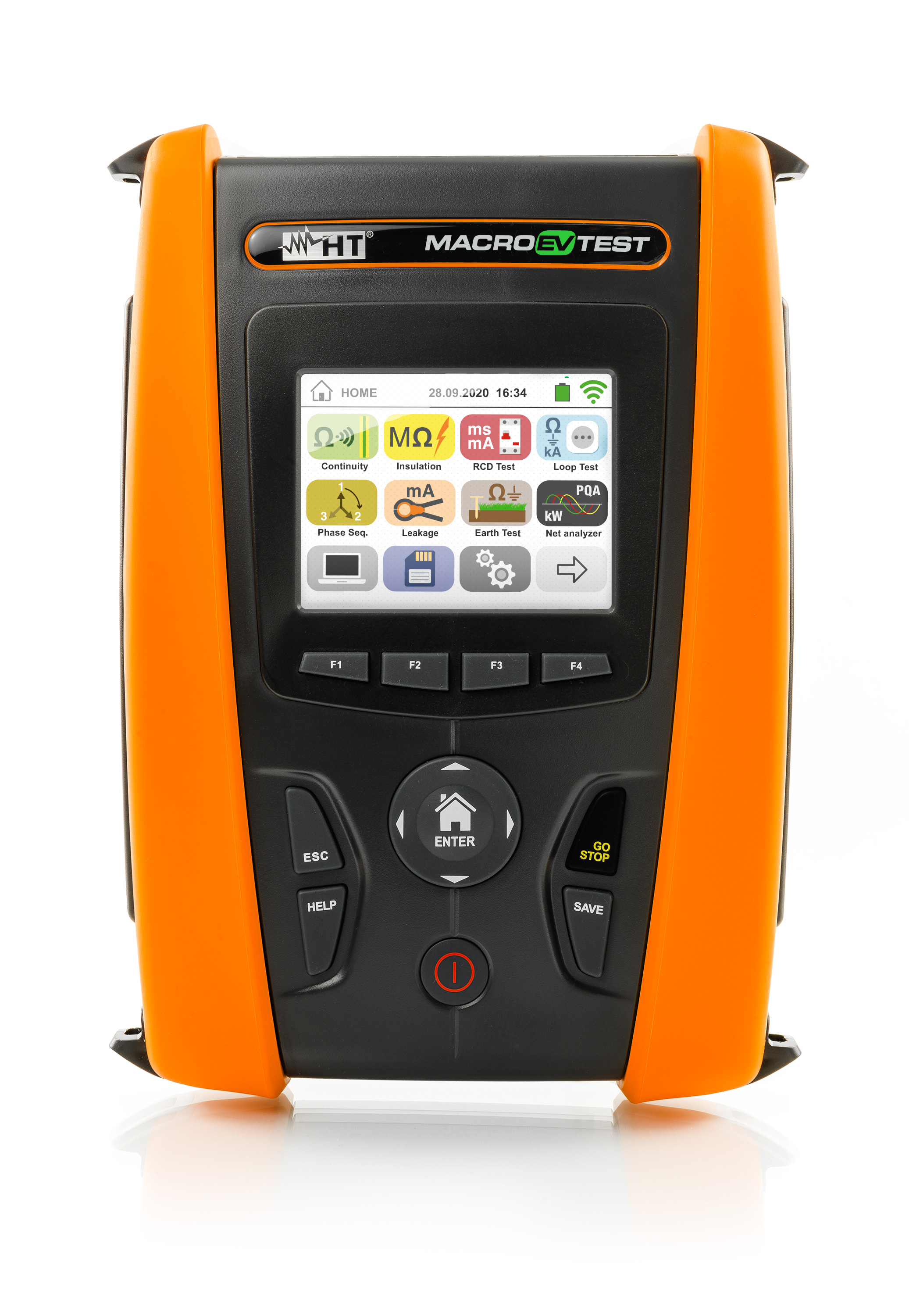

MACROEVTEST, the HT innovation regarding the verification and control of electric car charging stations (EVSE) in accordance with the IEC / EN 61851-1 and IEC / EN60364-7-722 standards, and for safety tests in environments civil and industrial CEI 64.8.
Functions
Sequence of tests for the verification of electric columns
|
with EV-TEST100 adapter |
TRMS
|
|
Insulation with test voltages 100, 250, 500, 1000VDC
|
|
Continuity of protective conductors with 200mA
|
|
Tripping time and current of RCDs type B, A, AC Standard, Selective and Delayed up to 1A
|
|
Tripping time and current of RCDs with separate clamp jaws type B, A, AC Standard, Selective and Delayed up to 10A
|
With optional accessory RCDX10 |
Non-trip earth resistance
|
|
Earth resistance by voltammetric method
|
|
Resistance of the single earth rods with clamp
|
With optional accessory T2100 |
Ground resistivity by 4-wire method
|
|
Loop/Line impedance, Phase-Phase, Phase-Neutral, Phase-PE
|
With optional accessory IMP57 |
Measurement of percentage voltage drop on the line
|
|
AUTO test (Non-trip ground resistance, RCD, Insulation) in sequence
|
|
Contact voltage
|
|
Phase sequence
|
|
Leakage current with optional clamp meter
|
|
Measurement of Voltage, Current, Active, Reactive, Apparent Power
|
(1) |
Measurement of Cosphi, Power Factor
|
(1) |
Voltage and current harmonics up to the 25th and THD%
|
25ª |
Protection category
|
CAT IV 300V |
Measurement of environmental parameters (°C,°F, %RH, Lux)
|
|
Test with remote lead
|
PR400 |
Help on line on the display
|
|
Internal memory for measured data saving
|
|
Optical/USB serial port for PC connection
|
|
Integrated WiFi connection and compatibility with HTANALYSIS App
|
|
Size (LxWx H) (mm)
|
225 x 165 x 75mm |
Weight in grams (batteries included)
|
1.2kg |
Guidelines
-
17th edition
-
CEI 64-8
-
CEI 64-8 612.2
-
CEI 64-8 612.3 .4 .5
-
CEI 64-8 612.6.1
-
CEI 64-8 612.6.2
-
CEI 64-8 612.6.3
-
CE MARK
-
DPR 462 del 22/10/2001
-
EMC 2014/30/EU
-
EMC: IEC/EN61326
-
EN50522
-
EN61008
-
IEC/EN6090-0
-
IEC/EN61010-1
-
IEC/EN61557-1
-
IEC/EN61557-2
-
IEC/EN61557-3
-
IEC/EN61557-4
-
IEC/EN61557-5
-
IEC/EN61557-6
-
IEC/EN61557-7
-
LVD 2014/35/EU
-
UNE20460
-
VDE 0100
STANDARD ACCESSORIES
User manual on CD-ROM and quick guide
Calibration report
Calibration report
Codmetel: -

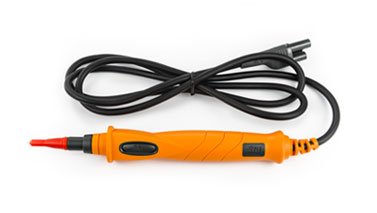

PR400
REMOTE LEAD WITH TEST STARTING BUTTON
Codmetel: HA000400
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 25cm
- Tip length: 1.9cm
- Tip diameter: 4mm
C2033X
CABLE WITH BANANA GREEN - BLACK - BLUE SHUKO PLUG
Codmetel: HA02033X
- Measuring range: 16A / 300V
- Measurement category: CAT III 300V
- Overall length: 1.5m
- Banana diameter: 4mm

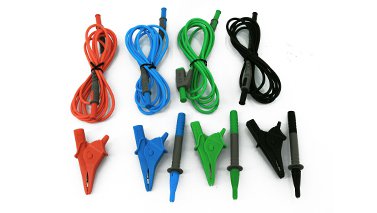

UNIVERSALKITG3
SET OF 4 CABLES, 4 ALLIGATOR CLIPS AND 3 LEADS BLACK RED-GREEN-BLUE
Codmetel: HA000203
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Cable length: 2m
- Maximum opening of alligator clip: 4cm
- Banana diameter: 4mm

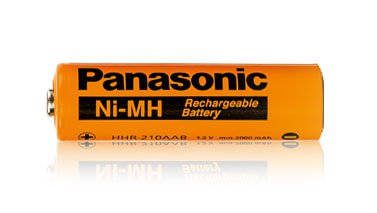

YABAT0003000
RECHARGEABLE BAT
Codmetel: HA030000
- Battery type: AA
- Composition: Ni-MH
- Rated voltage: 1.2V
- Power: min 2000mAh

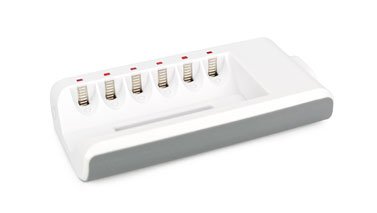

YABAT0004001
EXTERNAL BATTERY CHARGER
Codmetel: HA040010
- Power supply: 110-240VAC, 50/60Hz
- Plug type: C
- Supported batteries: AA e AAA Ni-Cd/NiMH
- Socket for batteries: 6x AA/AAA

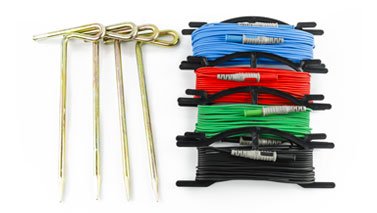

KITTERRNE
SET OF 4 RODS AND 4 CABLE COILS BLUE-RED-GREEN-BLACK
Codmetel: HA100001
- Length of rods: 25cm
- Blue cable length: 25m
- Red cable length: 20m
- Green-black cable length: 4.5m
- Measurement category: CAT III 600V
- Banana diameter: 4mm

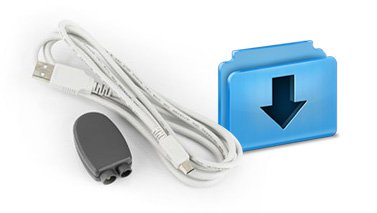

TOPVIEW2006
MULTI-LANGUAGE SOFTWARE TOPVIEW FOR MANAGEMENT OF
Codmetel: HA000716
- Cable length: 1.5m
- Output connector: USB
- Compatibility: Windows XP-7-8-10 (32/64 bit)

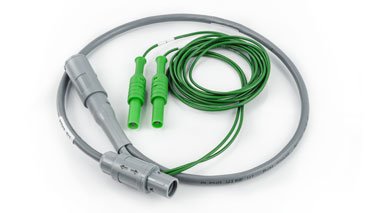

RCDX10
Accessory for industrial RCDs up to 10A
Codmetel: HA000801

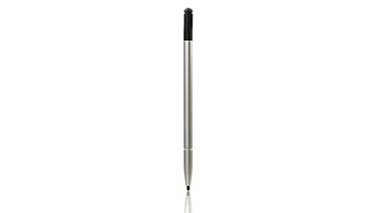

PT400
Touch-screen pen
Codmetel: HA0PT400

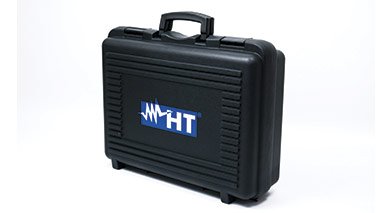

VA507
hard case
Codmetel: HA000507

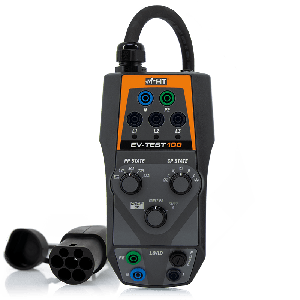

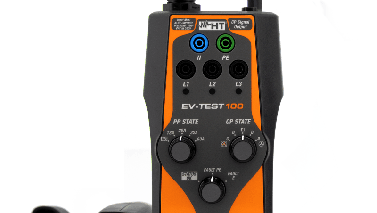

EV-TEST100
EVSE Adapter for Electric Vehicle Charger Testing
Codmetel: HA0EV100
OPTIONAL ACCESSORIES
HT96U
Codmetel: HP00096U
- Measuring range: 1mA÷1000A
- Basic Precision: ± 1.0%reading
- Basic accuracy: CAT III 600V
- Clamp jaw internal diameter: 54mm
- Output connector: Hypertac

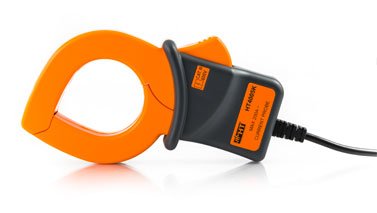

HT4005K
STANDARD CLAMP FOR AC CURRENT
Codmetel: HP04005K
- Measuring range: 0.1÷200A
- Basic accuracy: ±0.5%reading
- Measurement category: CAT III 600V
- Clamp jaw internal diameter: 40mm
- Output connector: Hypertac

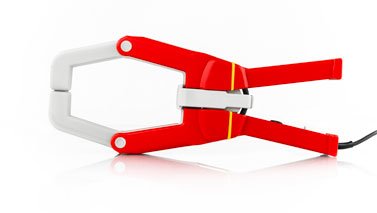

HP30D1
STANDARD CLAMP FOR DC CURRENT
Codmetel: HP0030D1
- Measuring range: 10÷1000A
- Basic accuracy: ±(1.5%reading + 2mV)
- Measurement category: CAT III 600V
- Clamp jaw internal diameter: 83mm
- Output connector: Hypertac

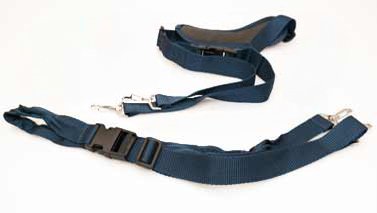

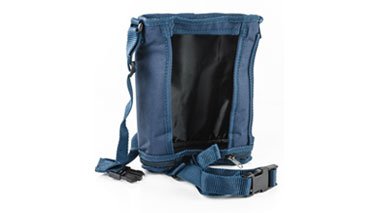

SP-0400
SET OF STRAPS FOR SLINGING THE DEVICE OVER ONE’S SHOULCODE
Codmetel: HA000112

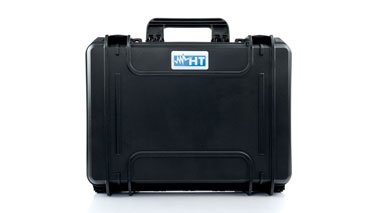

VA504
Codmetel: HA000237
VA504 has been designed to those who always want to have everything at hand. Further to the space for housing the device and its accessories such as measuring cables, earth rods, etc., VA504 is provided with an internal space for transporting and protecting also clamps for earth measurements such as T2000 or T2100. It is therefore the ideal solution for those who want to carry and protect their devices from water, dust and hostile environments.

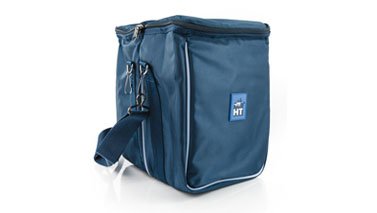

BORSA2051
Codmetel: HA002051
Soft bag with two big compartments to transport devices and accessories.
404-IECN
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400N
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm

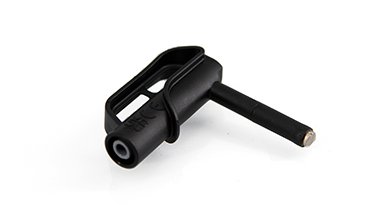

606-IECN
CONNECTOR WITH MAGNETIC TERMINAL
Codmetel: HA006060
- Measuring range: 4A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Magnetic tip length: 3.5cm
- Banana diameter: 4mm
1066-IECN
CONNECTOR FOR EXTENSION BANANA IN/OUT 4MM
Codmetel: HA10660N
- Measuring range: 36A / 1000V
- Measurement category: CAT III 600V / CAT II 1000V
- Overall length: 5.6cm
- Diameter of input/output banana: 4mm

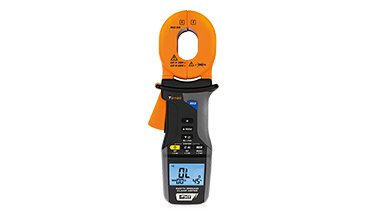

T2100
CLAMP FOR MEASURING EARTH RESISTANCE WITHOUT RODS
Codmetel: HP002100
- Resistance measuring range: 0.010÷1000Ω
- Resolution: 0.001÷20Ω
- Basic accuracy: ±0.01%reading + 0.01Ω
- Measurement category: CAT III 150V
- Clamp jaw internal diameter: 32mm
- Output connector: Jack 3.5mm
- Size: 293 x 90 x 66mm
- Weight, battery included: 1320gr
404-IECB
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400B
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm
1066-IECR
CONNECTOR FOR EXTENSION BANANA IN/OUT 4MM
Codmetel: HA10660R
- Measuring range: 36A / 1000V
- Measurement category: CAT III 600V / CAT II 1000V
- Overall length: 5.6cm
- Diameter of input/output banana: 4mm
404-IECV
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400V
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm
IMP57
ACCESSORY FOR LOOP IMPEDANCE MEASUREMENT WITH HIGH RESOLUTION AND PROSPECTIVE SHORT-CIRCUIT CUTRRENT UP TO 400KA
Codmetel: HAIMP001
- Type of measurement: Loop impedance P-N, P-P, P-PE and calculation of short-circuit current
- Measurement resolution: 0.1mΩ (Zloop); 400kA (Ipsc)
- Test current: approx. 200A
- Frequency range: 50Hz ± 5%
- Size (LxWxH): 340x300x150mm
