| TRMS | |
| Measuring counts | 10000 |
| DC/AC TRMS voltage up to 1000V | 1000V / AC+DC |
| DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer | |

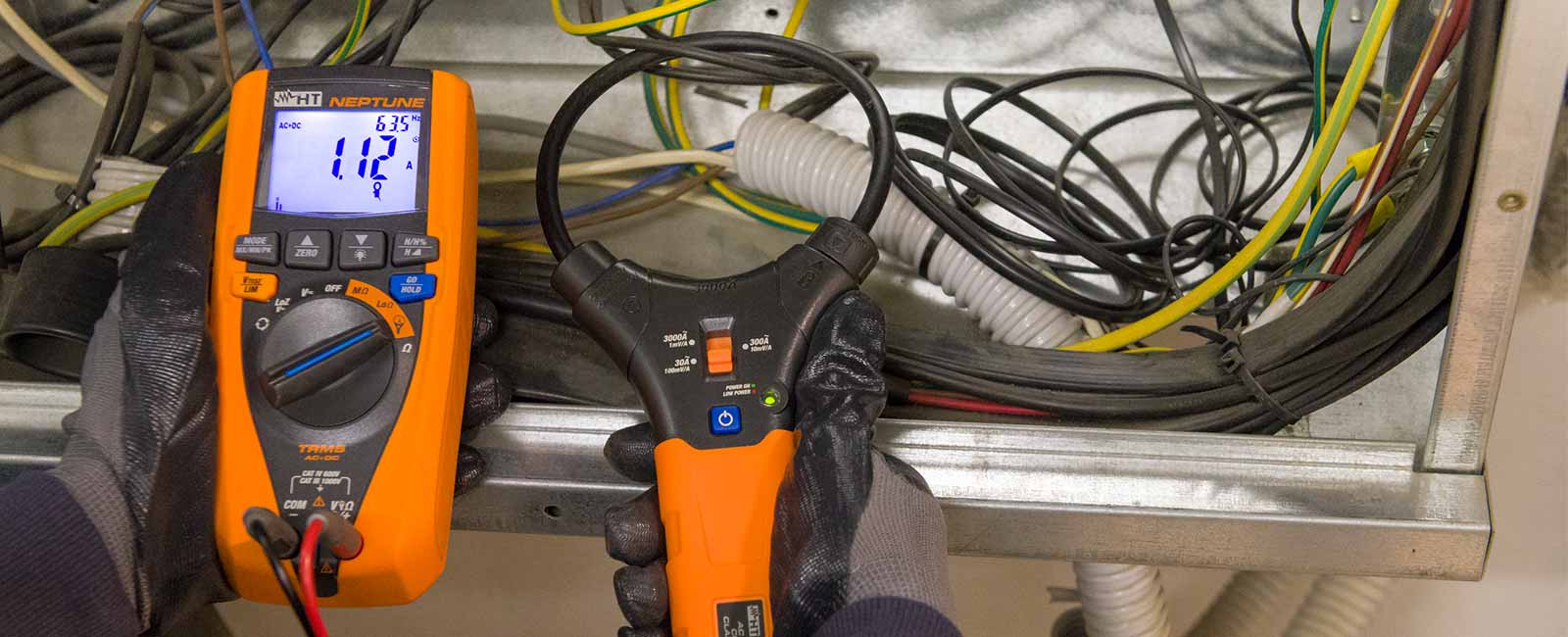

| AC TRMS current by means of external flexible transducer F3000U | |
| Leakage current with optional clamp meter | |
| Electric motor starting current (INRUSH) | |
| Insulation with voltage 50, 100, 250, 500, 1000VDC | According to IEC/EN61557-2 |
| Measurement of dielectric absorption ratio D.A.R. | |
| Measurement of polarization index P.I. | |
| Continuity of protective circuit with 200mA | According to IEC/EN61557-4 |

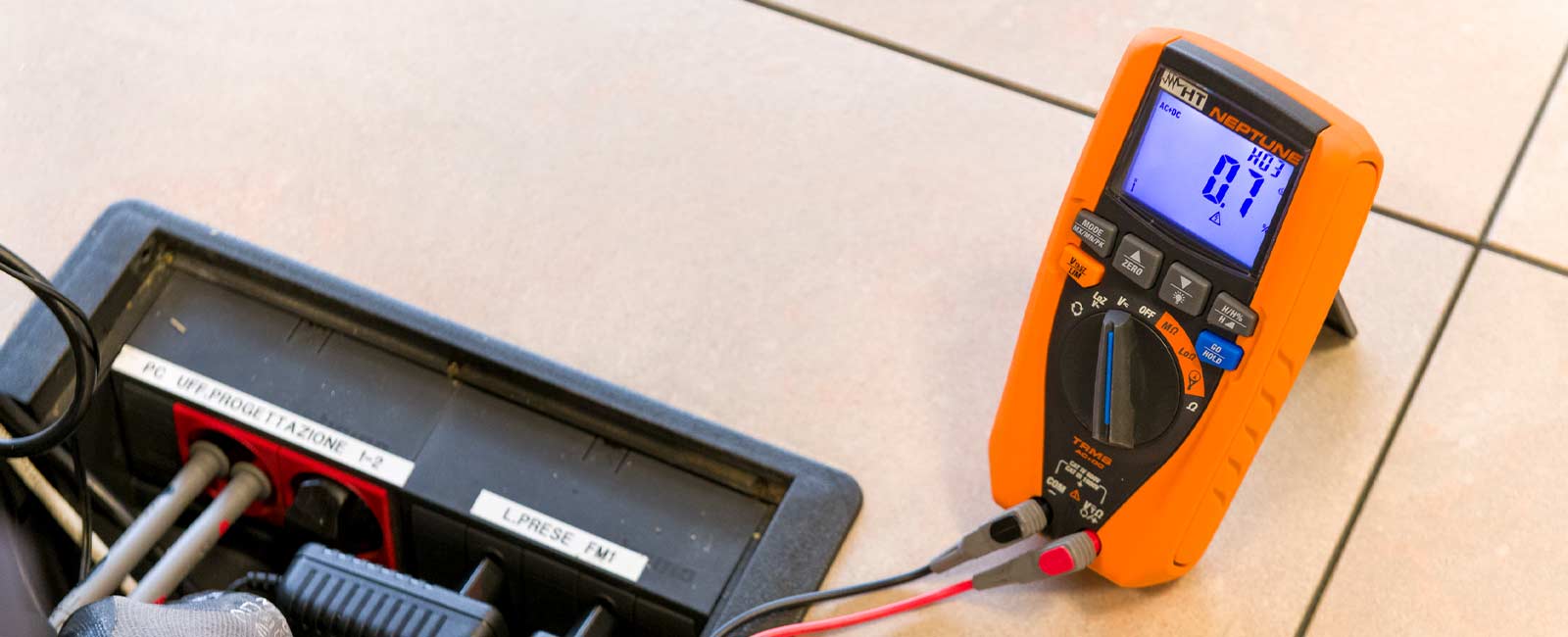

| Voltage and current harmonics up to the 25th and THD% | |
| LoZ Input | |
| Frequency | |
| Phase sequence | |

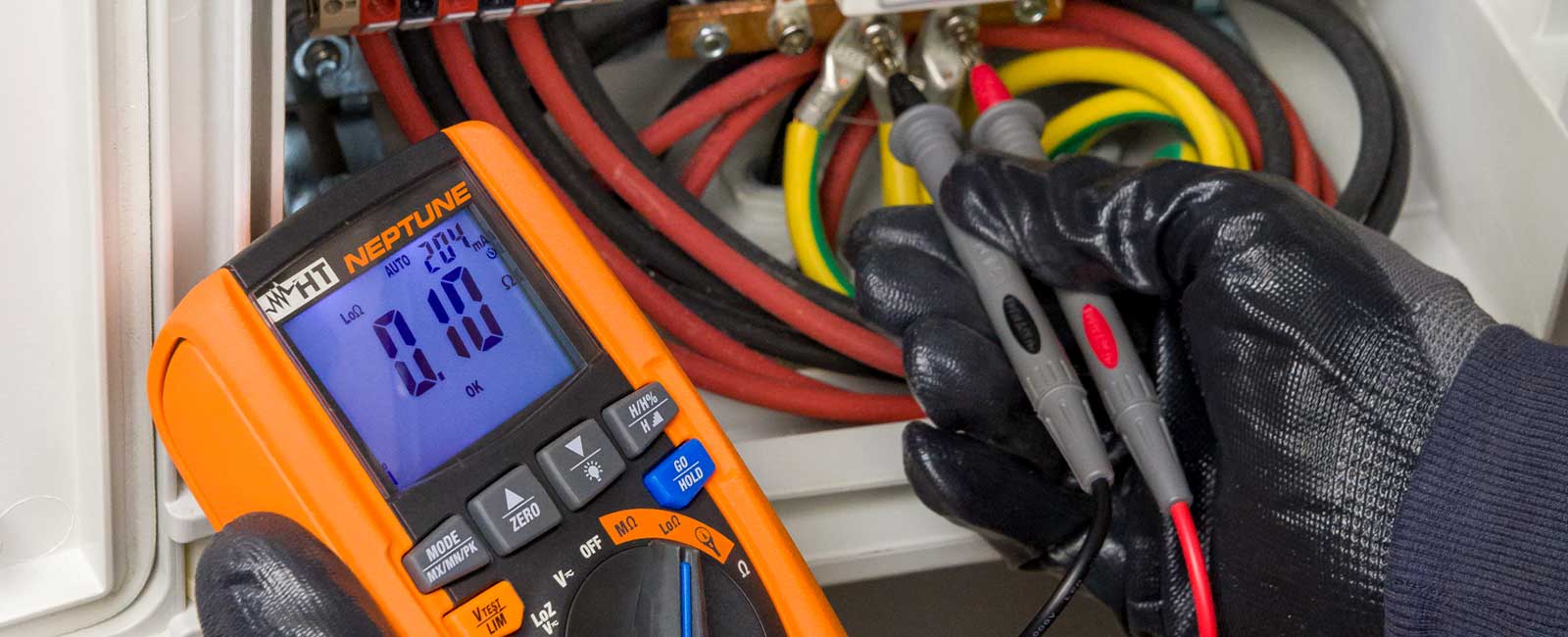

| Resistance and continuity test with buzzer | |
| Out come OK/NOT OK | According to IEC/EN60364-6 |
| Bargraph | |
| Backlit LCD display | |
| MAX/MIN/HOLD | |
| Measurement category | CAT IV 600V / CAT III 1000V |
| Weight in grams (batteries included) | 420 |
| Size (L x W x H) | 175x85x55 |
Can only be used with 4324-2 leads
When used with Multimeters and Clamps, the NOCANBA adapter (optional) is required.
When used with the PQA820, the ACONBIN adapter (optional) is required.
When used with the PQA924, the ACON3F5M adapter (optional) is required.
When used with Multimeters and Clamps, the NOCANBA adapter (optional) is required.
When used with the PQA820, the ACONBIN adapter (optional) is required.
When used with the PQA924, the ACON3F5M adapter (optional) is required.
AC flexible clamp with 30/300/3000A full scales
Strap with magnetic termination for attaching or hanging tools:
HT61, HT62, HT63, HT64, HT65
JUPITER

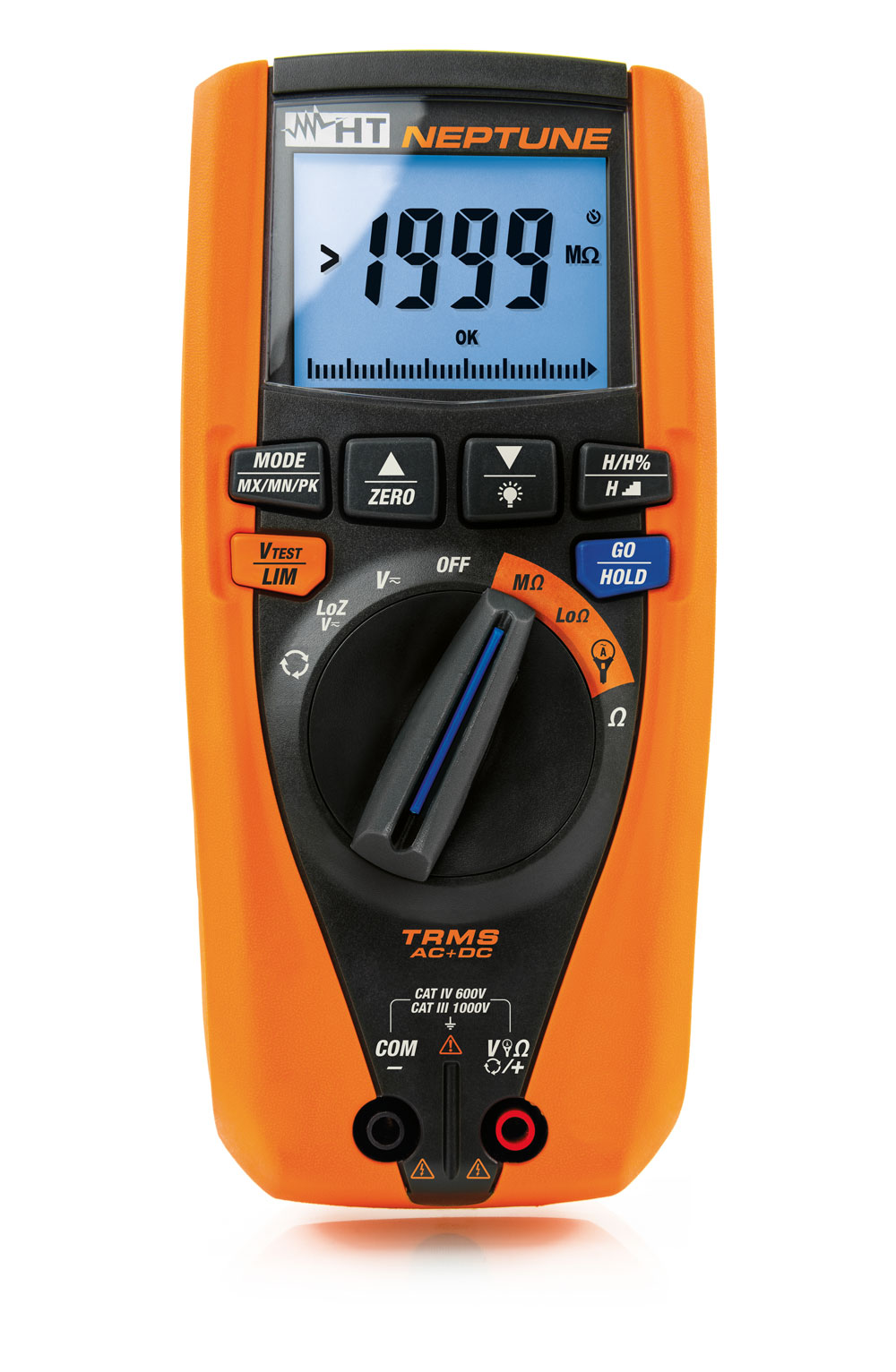

NEPTUNE

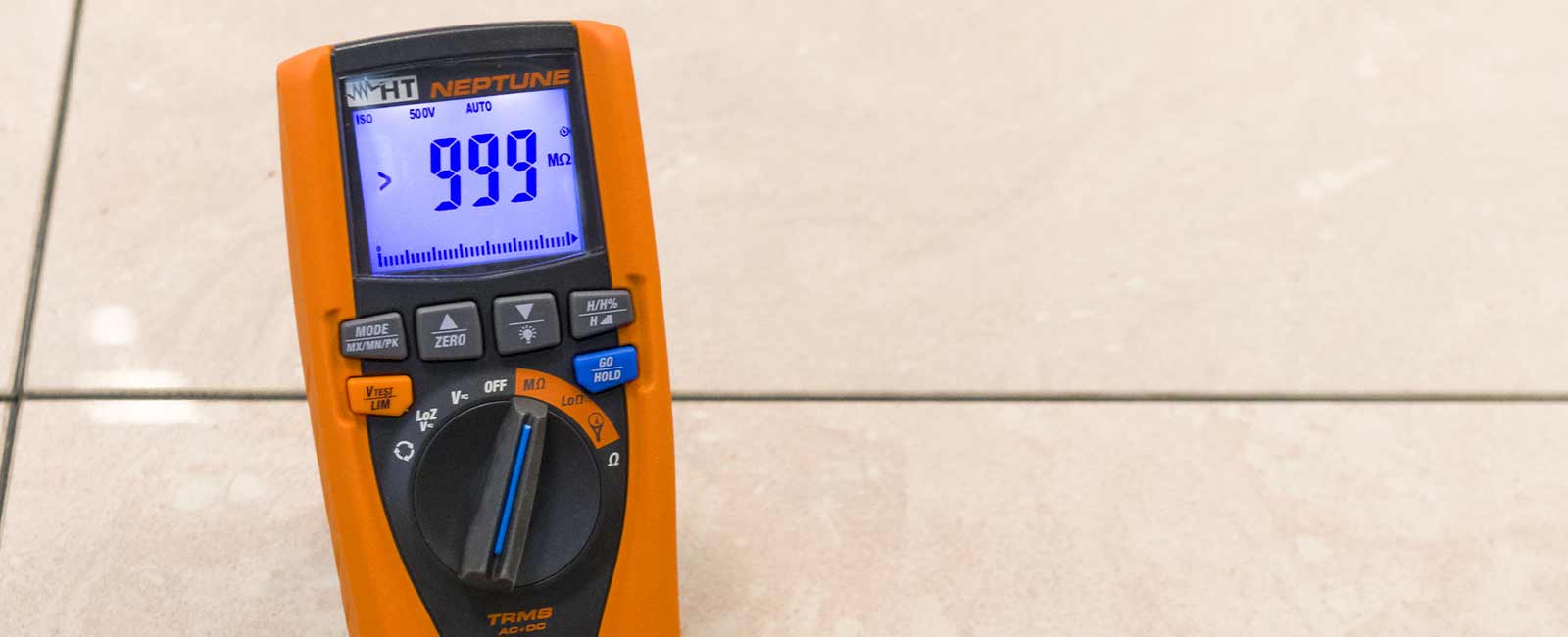

I measure Insulation Resistance up to 1000V and I evaluate the values of parameters PI and DAR, which are very useful for diagnostic purposes of materials in appliances undergoing long lasting monitoring.

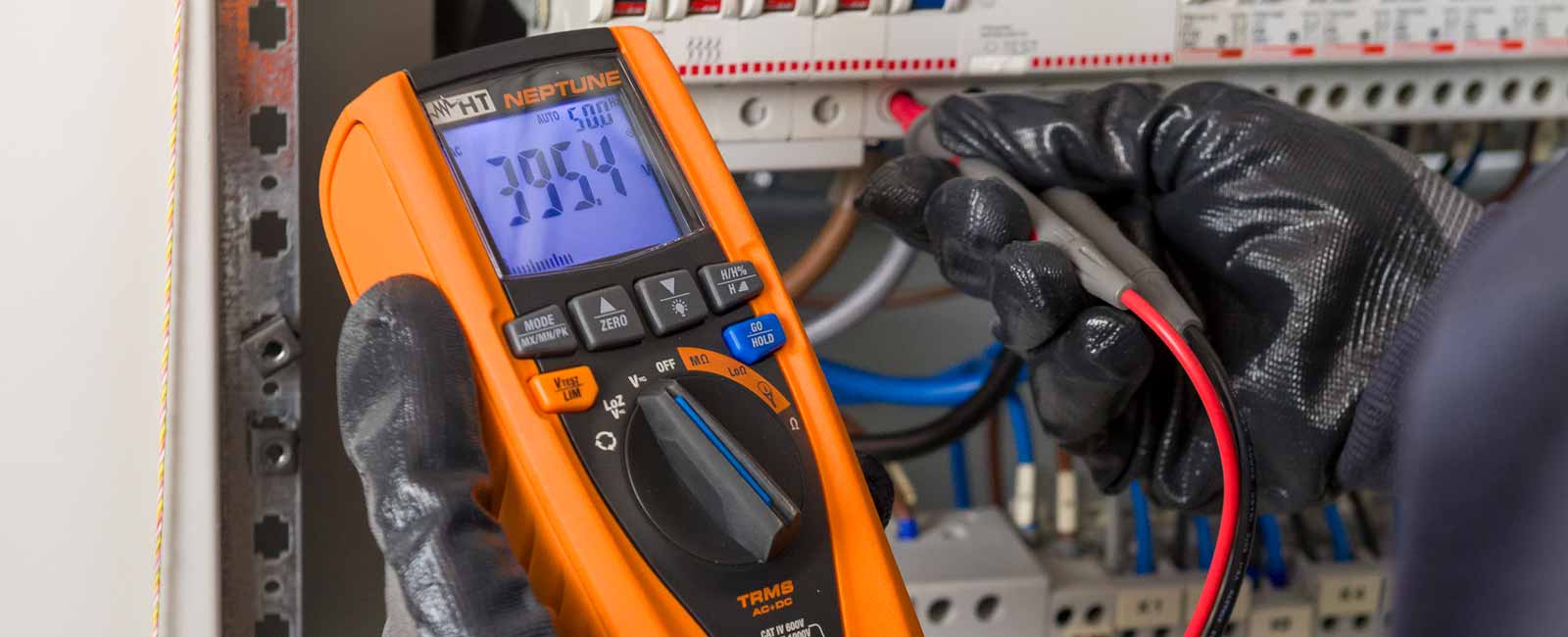

I measure AC/DC voltage with a “low impedance input” (LoZ) in order to eliminate incorrect readings due to stray voltages because of parasitic capacitive coupling.
