COMBI519 carries out tests on electric systems in compliance with IEC/EN 61557-1 and therefore measurements of continuity of the protection cable, insulation resistance (with calculation of PI and DAR), overall earth resistance, RCDs type B, A and AC tripping time and current, line / fault impedance with calculation of prospective short circuit / fault current, phase sequence and conformity.
The instrument is provided with the innovative AUTO function: by selecting this function and only setting the value of RCD current, COMBI519 carries out tests of overall earth resistance, RCD tripping time and insulation resistance in a sequence. At the end of the test, the device shows all results with the indication of compliance or non-compliance with the standards with simple symbols OK or NOT OK.
The internal memory allows saving the measures and subsequently transfer them onto the PC through the optical/USB connection.
Functions
AUTO test (Non-trip ground resistance, RCD, Insulation) in sequence
|
|
Insulation with voltage 50, 100, 250, 500, 1000VDC
|
|
Measurement of polarization index P.I.
|
|
Measurement of dielectric absorption ratio D.A.R.
|
|
Tripping time and current of F-type RCDs
|
|
Continuity of protective circuit with 200mA
|
|
|
B type up to 300mA |
Tripping time and current of RCDs type B, B+, F, A, AC Standard, Selective and Delayed up to 1A
|
Tiempo y corriente de intervención RCD toroidal separado tipo B, B+, F, A, AC Standard, Selectivo y Retardado hasta 10A |
Non-trip earth resistance
|
|
Loop/Line impedance Phase-Phase, Phase-Neutral, Phase-PE with high resolution (0.1mΩ)
|
With optional accessory IMP57 |
Loop/Line impedance, Phase-Phase, Phase-Neutral, Phase-PE
|
|
Percentage voltage drop on the line
|
|
Contact voltage
|
|
Phase sequence
|
|
Help on line on the display
|
|
Internal memory for measured data saving
|
|
Optical/USB serial port for PC connection
|
|
Protection rating
|
|
Power supply
|
|
Protection category
|
CAT IV 300V |
Weight in grams (batteries included)
|
1200 |
Size (LxWx H) (mm)
|
222x162x57 |
Guidelines
-
17th edition
-
CEI 64-8
-
CE MARK
-
EN60909-0
-
IEC/EN61010-031
-
IEC/EN61010-1
-
IEC/EN61010-2-030
-
IEC/EN61010-2-033
-
IEC/EN61010-2-034
-
IEC/EN61187
-
IEC/EN61326-1
-
IEC/EN61557-1
-
IEC/EN61557-10
-
IEC/EN61557-2
-
IEC/EN61557-3
-
IEC/EN61557-4
-
IEC/EN61557-6
STANDARD ACCESSORIES
Calibration report
Calibration report
Codmetel: -
BORSA75
Codmetel: HA750000
Bag with three internal compartments, medium size, for transporting devices and accessories.
C2033X
CABLE WITH BANANA GREEN - BLACK - BLUE SHUKO PLUG
Codmetel: HA02033X
- Measuring range: 16A / 300V
- Measurement category: CAT III 300V
- Overall length: 1.5m
- Banana diameter: 4mm
UNIVERSALKITCOMBI
SET OF 3 CABLES, 3 ALLIGATOR CLIPS AND 3 LEADS BLACK
Codmetel: HA000201
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Cable length: 2m
- Maximum opening of alligator clip: 4cm
- Banana diameter: 4mm
C2006 + Downloadable Software
Optical/USB cable C2006 and downloadable TopView software
Codmetel: HA002006
- Cable length: 1.5m
- Output connector: USB
- Compatibility: Windows XP-7-8-10 (32/64 bit)
C2006
USB CABLE + OPTICAL ADAPTER
Codmetel: HA002006
Compatibility with models provided with optical interface.
SP-5100
Carrying straps
Set of bells for slinging the instrument over one’s shoulder
|
ZEROLOOP

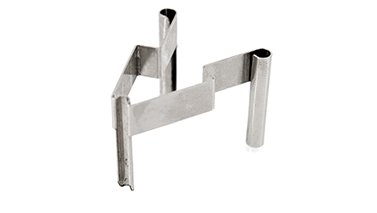

Loop zero adapter
Codmetel: HA00LOOP
OPTIONAL ACCESSORIES
VA500
Codmetel: HA050000
VA500 is the ideal solution for those who want to protect their devices from water, dust and hostile environments. It is also suitable to contain all accessories for a perfect management of the job.
PR400
REMOTE LEAD WITH TEST STARTING BUTTON
Codmetel: HA000400
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 25cm
- Tip length: 1.9cm
- Tip diameter: 4mm
404-IECN
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400N
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm
607-IECN
CONNECTOR WITH MAGNETIC TERMINAL
Codmetel: HA00607N
- Measuring range: 4A / 1500V
- Measurement category: CAT IV 1000V / CAT III 1500V
- Magnetic tip length: 3.5cm
- Banana diameter: 4mm
5001-V
MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE
Codmetel: HA05001V
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 1.5m
- Banana diameter: 4mm
5004-IECN
ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA
Codmetel: HA50040N
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 2.3cm
- Banana diameter: 4mm
404-IECB
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400B
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm
5001-N
MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE
Codmetel: HA05001N
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 1.5m
- Banana diameter: 4mm
5001-B
MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE
Codmetel: HA05001B
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 1.5m
- Banana diameter: 4mm
5001-R
MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE
Codmetel: HA05001R
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 1.5m
- Banana diameter: 4mm
404-IECV
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400V
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm
5004-IECB
ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA
Codmetel: HA50040B
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 2.3cm
- Banana diameter: 4mm
5004-IECR
ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA
Codmetel: HA50040R
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 2.3cm
- Banana diameter: 4mm
5004-IECV
ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA
Codmetel: HA50040V
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 2.3cm
- Banana diameter: 4mm
IMP57
ACCESSORY FOR LOOP IMPEDANCE MEASUREMENT WITH HIGH RESOLUTION AND PROSPECTIVE SHORT-CIRCUIT CUTRRENT UP TO 400KA
Codmetel: HAIMP001
- Type of measurement: Loop impedance P-N, P-P, P-PE and calculation of short-circuit current
- Measurement resolution: 0.1mΩ (Zloop); 400kA (Ipsc)
- Test current: approx. 200A
- Frequency range: 50Hz ± 5%
- Size (LxWxH): 340x300x150mm
404-IECR
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400R
