EQUITEST

10A Continuity tester

EQUITEST is the new verification instrument for measuring continuity of protective conductors up to 10A.
EQUITEST can work both in combination with a "MASTER" verification tool via C2050 cable (supplied), and independently wirelessly driven by the dedicated HT Equitest APP, freely downloadable for Android and iOS systems.

 EQUITEST provides the following functions:

  • Continuity of protective and equipotential conductors with test current >10A AC and open-circuit voltage <24V AC
  • Available power supplies: 110V±10% or 230/240V±10%
  • 4-terminal measurement method (self-compensating test lead resistance)
  • LED indications of measurement in progress
  • Wi-Fi connection to mobile devices with HT Equitest APP
  • Manual and Automatic operating modes
  • Fuse-protected input

COMPATIBILITY LIST
EQUITEST can also be used connected to the following instruments:

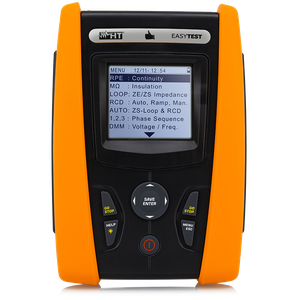

  • EASYTEST

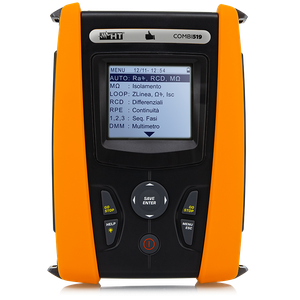

  • COMBI519

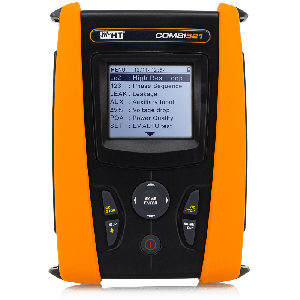

  • COMBI521
  • MACROTESTG3

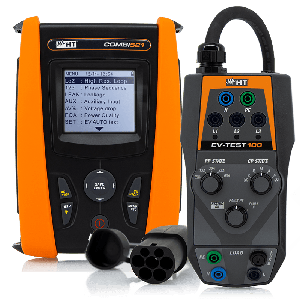

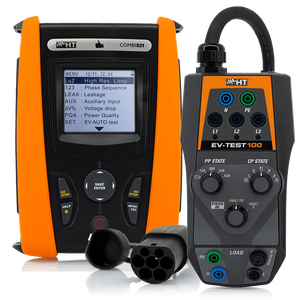

  • MACROEVTEST
  • GSC60
Functions
Continuity of protective conductors with 10A 0.001 + 1.999Ω
Current measuring range
Serial/optical port for connection to MASTER unit
Integrated WiFi and compatibility with HT Equitest APP for independent operation
Mechanical protection IP40
Power supply 110V o 230V/240V 50+60Hz
Measurement category CATIII 300V
Weight 1 Kg.
Size (LxWxH) (mm) 210 x 115 x 60
Guidelines
  • EMC: IEC/EN61326
  • IEC/EN60204-1
  • IEC/EN61010-1
  • IEC/EN61010-2-030
  • IEC/EN61326-1
  • IEC/EN61439-1
  • IEC/EN61557-1

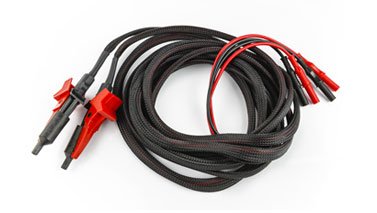

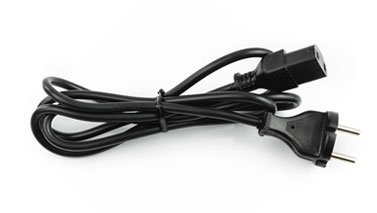

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
