Earth Ground Clamp Meter


Earth Ground Clamp Meter

Earth Ground Clamp Meter with leakage current measurement up to 20A AC

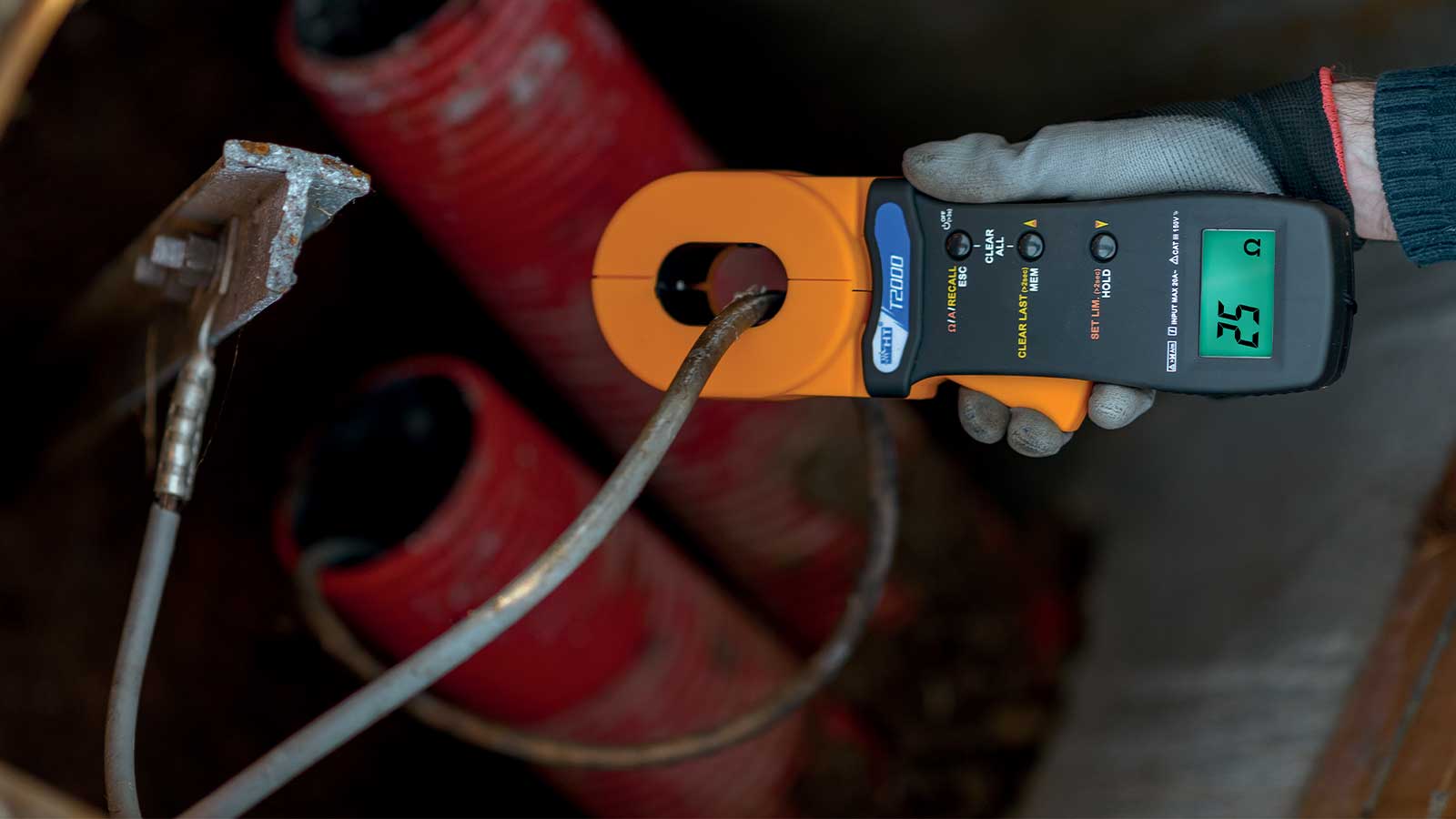

T2000 is a professional clamps specially developed to evaluate resistance of earth rods with no need to disconnect any part of the system (STAKELESS METHOD)

The inner part of the device is made of 2 jaws, one for current reading and the other for voltage generation. The voltage jaws generate a potential (E) on the loop during resistance (R) measurement. A current (I) is consequently generated on the loop and is measured by the current jaws. Based on the value of parameters E and I, the instrument displays the resistance R value calculated as their ratio. The value measured by the device can be used in case the single rods do not influence each other. T2000 also measures AC current up to 20A and leakage current with resolution 0.1mA. This device complies with standard IEC/EN61010-1 in CAT IV 300V, CAT III 600V and it is the ideal solution for measurements to be carried out both in private and in industrial environments.

Measuring range 0.01Ω ÷ 1.2kΩ

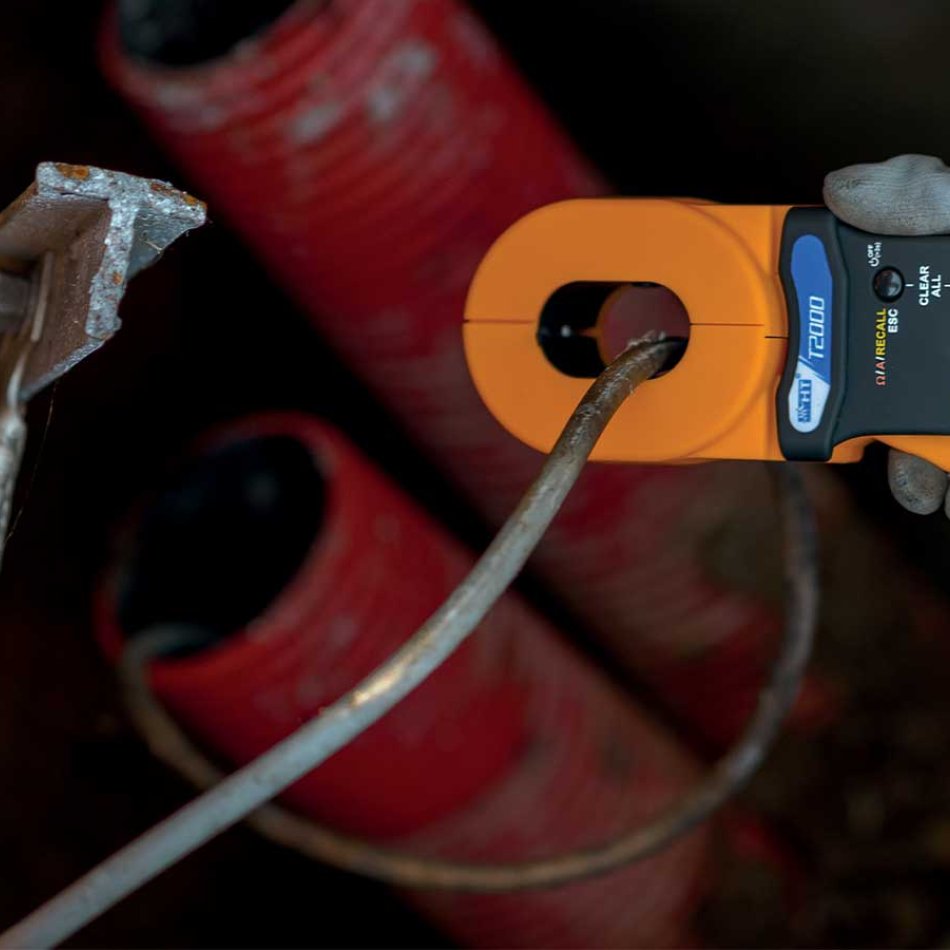

Direct measurement on earth probes without any cable interruption STAKELESS METHOD
Measurement of leakage current on earth systems 0.1mA -> 20A
LCD display
Auto Power OFF
Internal memory for measured data saving 99 locations
Weight in grams (batteries included) 1120
Protection category CAT III 600V, CAT IV 300V
Size (LxWx H) (mm) 293x105x54
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • IEC60364-6
  • IEC/EN61010-032
  • IEC/EN61010-1
  • IEC/EN61557-4
  • LVD 2014/35/EU
