Earth resistance tester

M71

Compact earth resistance tester

Compact earth resistance tester

M71 has been developed to measure earth resistance with 2 wires and 3 wires by voltammetric method in compliance with standard IEC/EN61557-1.

This device allows carrying out measurements with a wide measuring range (50kΩ) and an efficient internal automatic compensation of the disturbance effects found on the installations, and it is provided with an ergonomic design with electronic function selector for quickly carrying out the tests. The 2-wire method allows carrying out earth measurement by taking advantage of appropriate external masses as a reference (metal surfaces, tubes, neutral conductor, etc.), which is particularly useful in private environments where, because of logistic problems, it is not possible to use the 3-wire method.

Functions
TRMS
Measuring range 50KΩ
Earth resistance by 2- and 3-wire method
Compensation of disturbance voltages
Compensation of test cables
Protection category
Detection of disturbance currents on measurement
LCD display
Auto Power OFF
Size (LxWx H) (mm) 240x100x45
Weight in grams (batteries included) 600
Guidelines
  • CEI 64-8
  • CEI 64-8 612.6.2
  • CE MARK
  • DPR 462 del 22/10/2001
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • IEC/EN61010-1
  • IEC/EN61557-1
  • IEC/EN61557-5
  • LVD 2014/35/EU
  • UNE20460

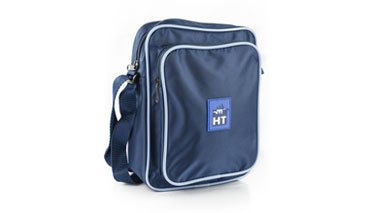

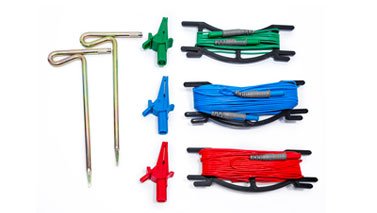

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
