EARTH RESISTANCE METER

MT-200

Multifunction earth tester for measuring earth resistance, protective conductors’ continuity, insulation up to 1000V, with touch-screen display and integrated Wi-Fi

Advanced multifunction device for verification of electric safety of private and industrial electric systems (IEC/EN61557-1)

  • Earth resistance by voltammetric method with 2 or 3 spots in TT, TN and IT systems, overall earth resistance measurement and with clamp meter T2100 (optional).
  • Ground resistivity.
  • Measurement of electric parameters insingle- phase installations (V,A, W, VAR, VA, PF).
  • Measurement of insulation resistance
  • Measurement of continuity of protection conductors with 200mA

MT-200 fully takes advantage of the touch-screen technology developed for MT-300 and, hence, of all its settings, but its application range is for measuring insulation resistance and earth resistance by voltammetric method, also with optional clamp T2100 and, finally, for continuity measurement of protective conductors. Cutting-edge management of measurement with indication, at the end of each safety test, of compliance or non-compliance with requirements with simple symbols OK o NOT OK.

Available through HT China office on the Chinese market only. For the international market please refer to MACROTESTG2.

Functions
Guidelines
  • 17th edition
  • CEI 64-8
  • CE MARK
  • EMC: IEC/EN61326
  • IEC/EN61010-1
  • IEC/EN61557-5
  • UNE20460

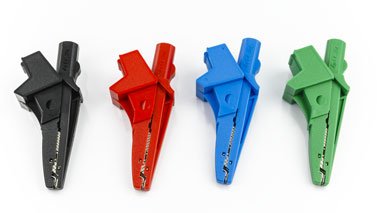

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
