| IR Resolution | 384x288 pxl |
| Temperature range | -20° ÷ 650°C |
| Image frequency | 50Hz |
| Thermal sensitivity / NETD | <0.05°C @ 30°C / 50mK |
| Field of view (FOV) | 41.5° x 31.1° |
| Focal length | f 1.0 |
| Lens | 9mm |
| IFOV | 1.89mrad |
| Focus mode | Manual Focus |
| Built-in camera | 2 MP, focus free |
| Picture in Picture function | ● |
| AutoFusion image enhancement | ● |
| Uncertainty about the measure | ±2°C (±3.6°F) o±2% de ler |
| Digital zoom | 1x ÷ 32x |
| Measurement tools (in live mode) | none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode |
| Area measurement information | max, min, AVG |
| IR Video recording | ● |
| Measurement corrections | emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation |
| Color Palettes | iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm |
| Internal memory | 3,4 GB |
| On-camera report building | text annotation |
| Communication modes | USB type C, Wi-fi, SD card |
| Display | touch screen |
| Battery operation time | 4 hours |
| Size (LxWxH) (mm) | 240 x 101 x 110mm |
USB cable for PC connection

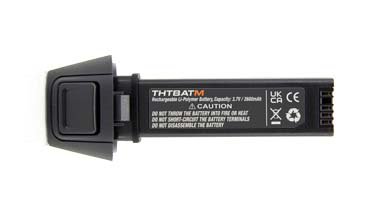

Li-on battery for medium format infrared cameras.

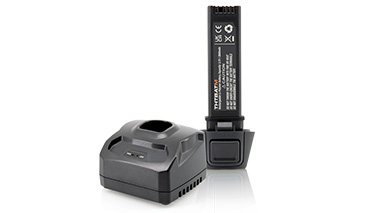

THTBATM additional battery and THTCBM charging base, for THT100, THT200, THT300 and THT400 cameras.

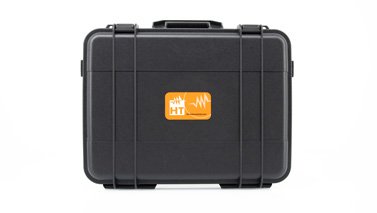

Rigid case for transporting THT100, THT200, THT300 and THT400 thermal imaging cameras.
