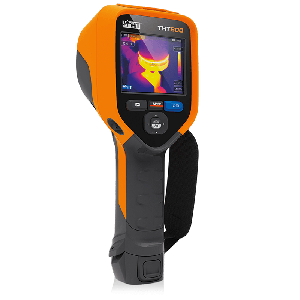

THT600H is the new professional thermal camera equipped with a high resolution 384x288pxl IR sensor and a specific measuring range for high temperatures -20°C ÷ 1200°C which makes it suitable for both industrial and manufacture monitoring. It features a 17.3°x 12.7° field of view, producing high resolution thermal images and videos, as well as enabling AutoFusion and Picture in Picture functions. It also has an ergonomic strap and an integrated laser distance meter, which allows you to measure the distance to the subject under analysis. The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display. Thanks to the Wi-Fi connection it is possible to download the thermograms on your mobile device and through the new and convenient HT Pro Camera application you can create PDF reports and share them quickly.
Functions
IR Resolution
|
384x288 pxl |
Temperature range
|
-20° ÷ 1200°C |
Image frequency
|
50Hz |
Thermal sensitivity / NETD
|
<0.05°C @ 30°C / 50mK |
Field of view (FOV)
|
17° x 12.7° |
Focal length
|
f 1.0 |
Lens
|
22mm |
IFOV
|
0.77mrad |
Focus mode
|
manual focus |
Picture in Picture function
|
● |
AutoFusion image enhancement
|
● |
Uncertainty about the measure
|
±2°C (±3.6°F) o±2% of reading |
Digital zoom
|
1x ÷ 32x |
Measurement tools (in live mode)
|
none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode |
Area measurement information
|
max, min, AVG |
IR Video recording
|
● |
Measurement corrections
|
emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation |
Color Palettes
|
iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm |
Span modes
|
Automatic / Manual / Histogram |
Laser pointer
|
● |
Laser distance meter
|
● |
Built in LED light
|
● |
Internal memory
|
3,4 GB |
On-camera report building
|
text notes, voice notes |
Communication modes
|
micro USB, Wi-fi, micro SD, micro HDMI |
Display
|
touch screen |
Battery operation time
|
4 hours |
Size (LxWxH) (mm)
|
240 x 101 x 110mm |
Guidelines
-
CE MARK
-
EMC 2014/30/EU
-
EMC: IEC/EN61326
-
IEC/EN61010-1
STANDARD ACCESSORIES
Calibration report
Calibration report
Codmetel: -
Quick Guide and Downloadable Manual
Windows software on CD-ROM
BAT8X
Li-ION rechargeable battery (2pcs)
AC / DC power supply + universal plugs
OPTIONAL ACCESSORIES
THTBATL
Li-on battery for large format thermal imaging cameras.
Codmetel: HA00BATL
Li-on battery for large format thermal imaging cameras.
