Professional multimeter with built-in camera

MERCURY

Professional multimeter with built-in infrared camera + F3000U AC flexible clamp with 30/300/3000A full scale

Professional multimeter with built-in infrared camera

MERCURY is a TRMS digital multimeter capable of measuring AC/DC voltage up to 1000V, AC/DC current up to 10A as well as resistance, continuity test, diode test, frequency, capacitance and temperature with K-type probe. Other major functions include AC+DC mode taking into account DC components overlapping AC signals and current measurement with standard and flexible transducer clamps (provided accessory F3000U).
A camera with 80x80pxl resolution is built inside to get simultaneous readings of thermal and electrical values for the item under test.
MERCURY is provided with Data Logger function capable of carrying out and saving recordings of every parameter as well as displaying the values’ diagram.

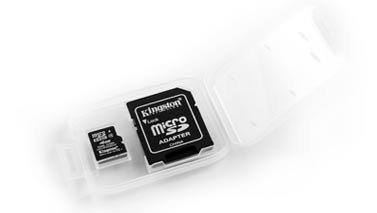

Snapshots can be saved into BMP format inside a micro SD card supplied as accessory and Bluetooth permits connection with mobile devices (tablet/smartphone) through HTMercury APP creating reports to share measuring results.
The instrument was designed in compliance with safety standards IEC/EN61010-1 with double insulation protection according to CAT IV 600V or CAT III 1000V.
MERCURY is equipped with analogue bargraph LCD and each function can be selected by rotary switch. Additional functions include HOLD to keep displayed data, MAX/MIN, PEAK and Auto Power OFF to save the internal rechargeable battery.

Functions
Measuring counts 6000
  up to 1000V
  up to 10A
DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer
AC TRMS current by means of external flexible transducer F3000U
“Voltsense” for AC voltage recognition
Resistance
Continuity with buzzer
Temperature with K-type probe
Diode test
Capacity
Frequency
Relative measurement
MAX/MIN
PEAK
Data HOLD
Bargraph
Backlight
Datalogger and Graph
Auto Power OFF
IR sensor resolution
Thermal sensitivity / NETD
NETD
Spectrum range
IFOV
Field of view (FOV)
Lens
3 cursors: Central, Min, Max.
Focus mode
8 standard + 10 custom colour palettes
Readings in °C, °F, °K
Integrated white light illuminator
Laser pointer
Infrared temperature measuring range
Mechanical protection IP65
Power supply
Size (LxWxH) (mm)
Weight in grams (batteries included)
Guidelines
  • EMC: IEC/EN61326
  • IEC/EN61010-1

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
