| Measuring counts | 6000 |
| AC TRMS current by means of external flexible transducer F3000U | |
| DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer | |
| TRMS | |
| AC/DC voltage | 690V / AC+DC |
| LoZ Input | |
| AC/DC current | AC+DC with external clamp transducer |
| Resistance and continuity test with buzzer | |
| Frequency | |
| RCD tripping time | 30mA, 100mA, 300mA A/AC |
| Tripping time and current of F-type RCDs | |
| RCD trip current measurement | RCD A/AC 30mA |
| Leakage current (with optional accessory HT96U) | |
| Non-trip earth resistance | |

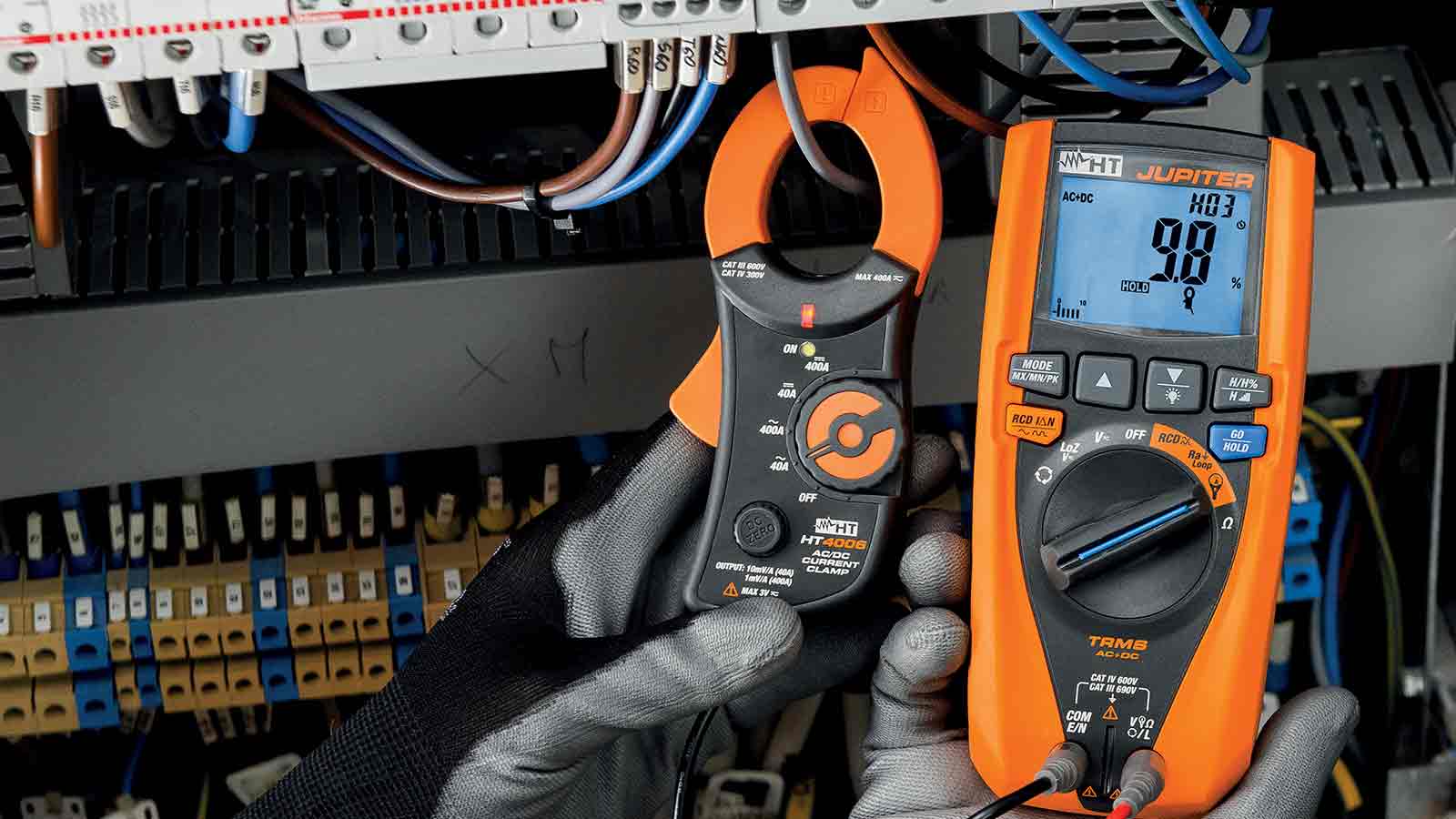

| Voltage and current harmonics up to the 25th and THD% | |
| Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current | |
| Electric motor starting current (INRUSH) | |
| Auto x1/2, x1, x2, x5, 0°, 180° | |
| Phase sequence | |
| Out come OK/NOT OK | According to IEC60364-6 |
| Backlit LCD display | |
| MAX/MIN/HOLD | |
| Measurement category | CAT IV 600V / CAT III 690V |
| Weight in grams (batteries included) | 420 |
| Size (LxWxH) (mm) | 175x85x55 |
When used with Multimeters and Clamps, the NOCANBA adapter (optional) is required.
When used with the PQA820, the ACONBIN adapter (optional) is required.
When used with the PQA924, the ACON3F5M adapter (optional) is required.
When used with Multimeters and Clamps, the NOCANBA adapter (optional) is required.
When used with the PQA820, the ACONBIN adapter (optional) is required.
When used with the PQA924, the ACON3F5M adapter (optional) is required.
AC flexible clamp with 30/300/3000A full scales
Strap with magnetic termination for attaching or hanging tools:
HT61, HT62, HT63, HT64, HT65

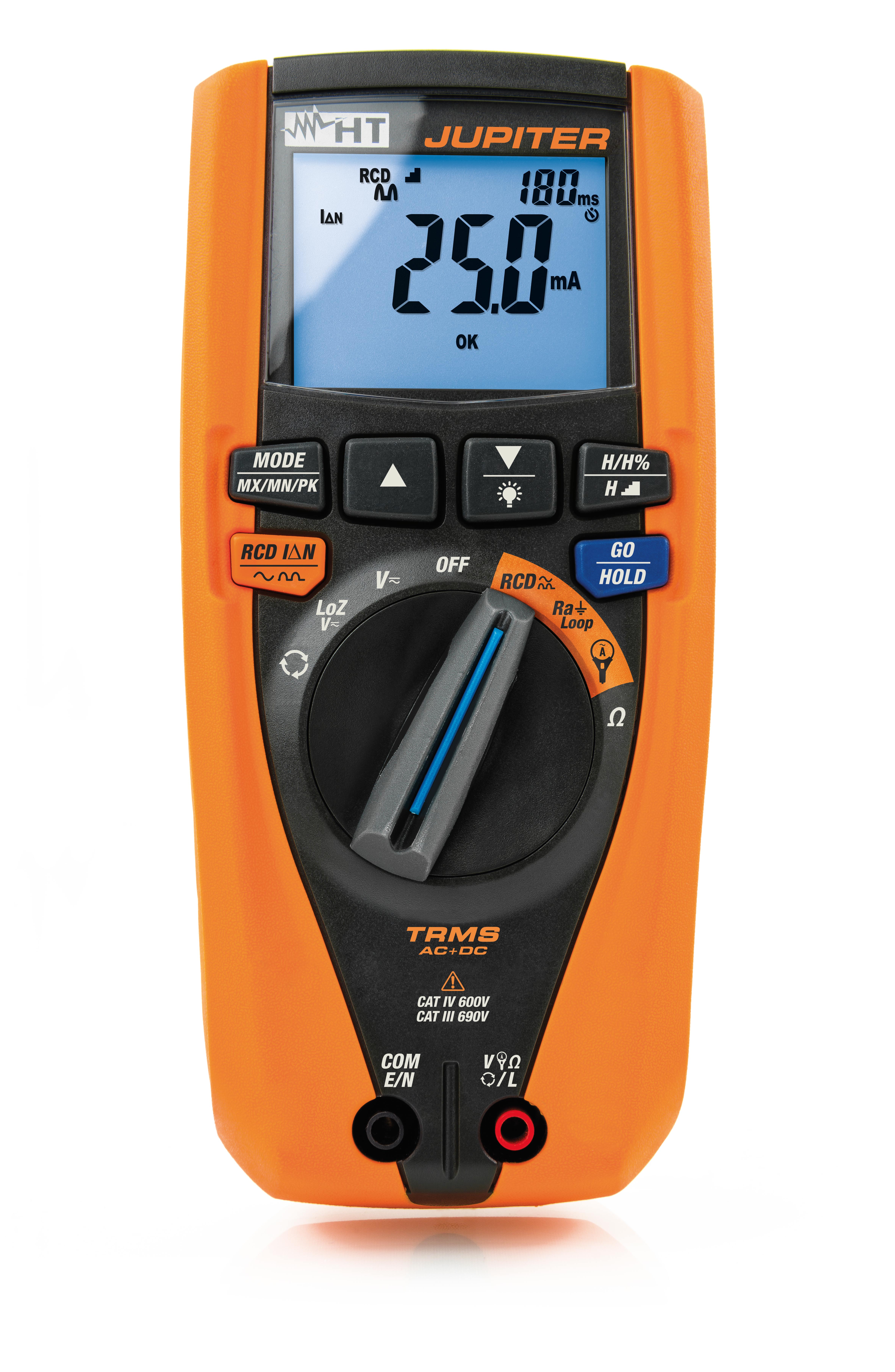

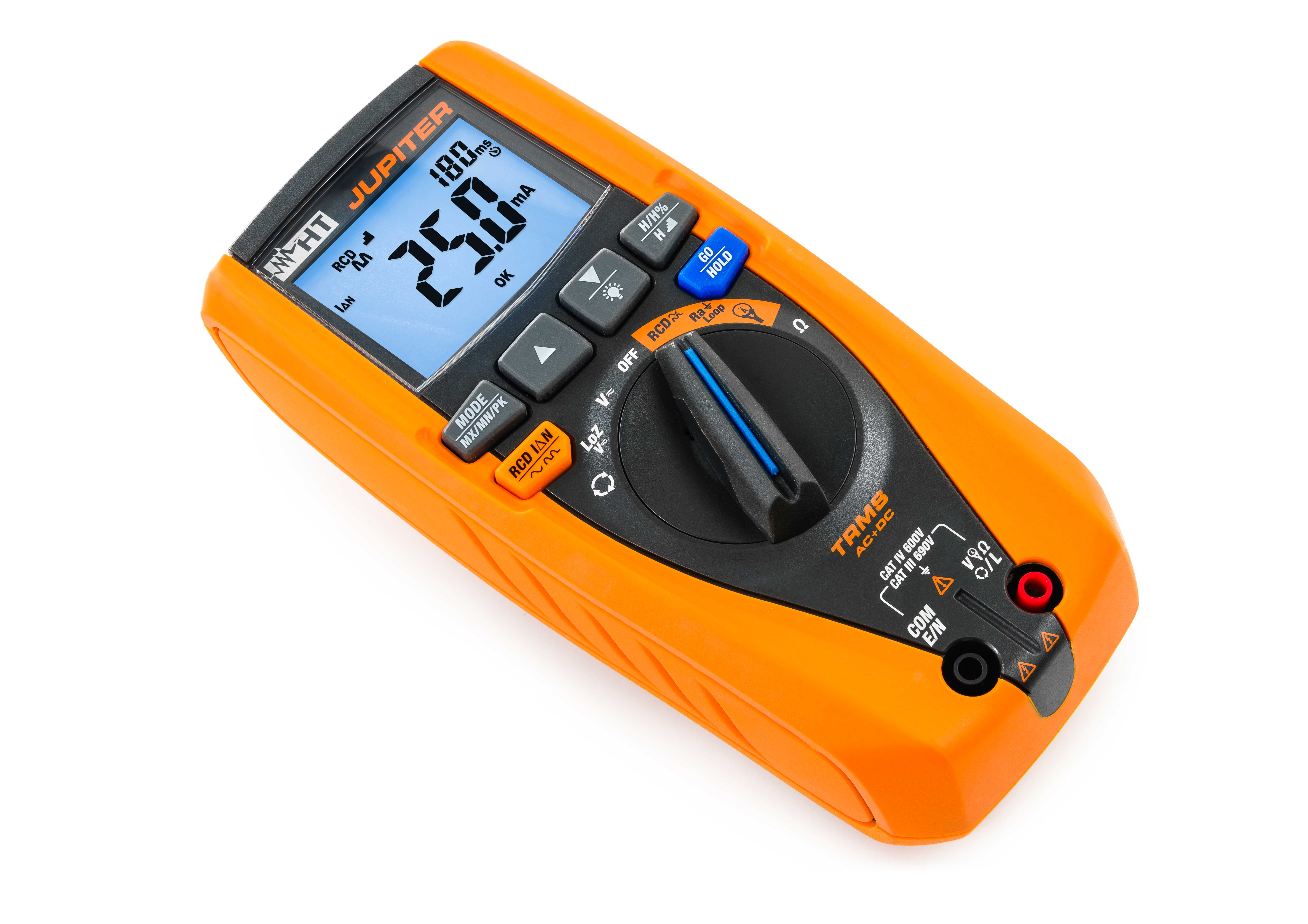

JUPITER
NEPTUNE

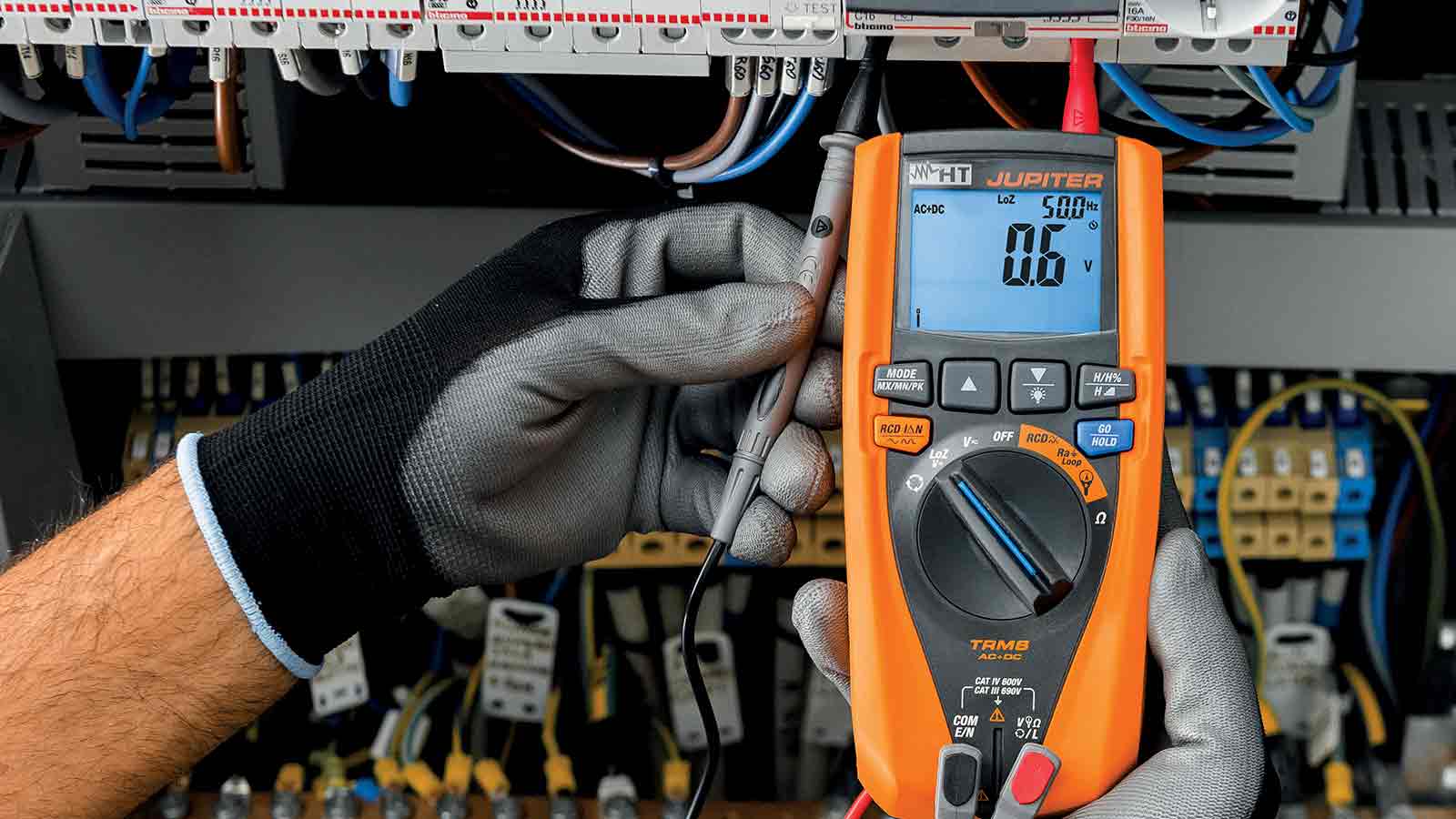

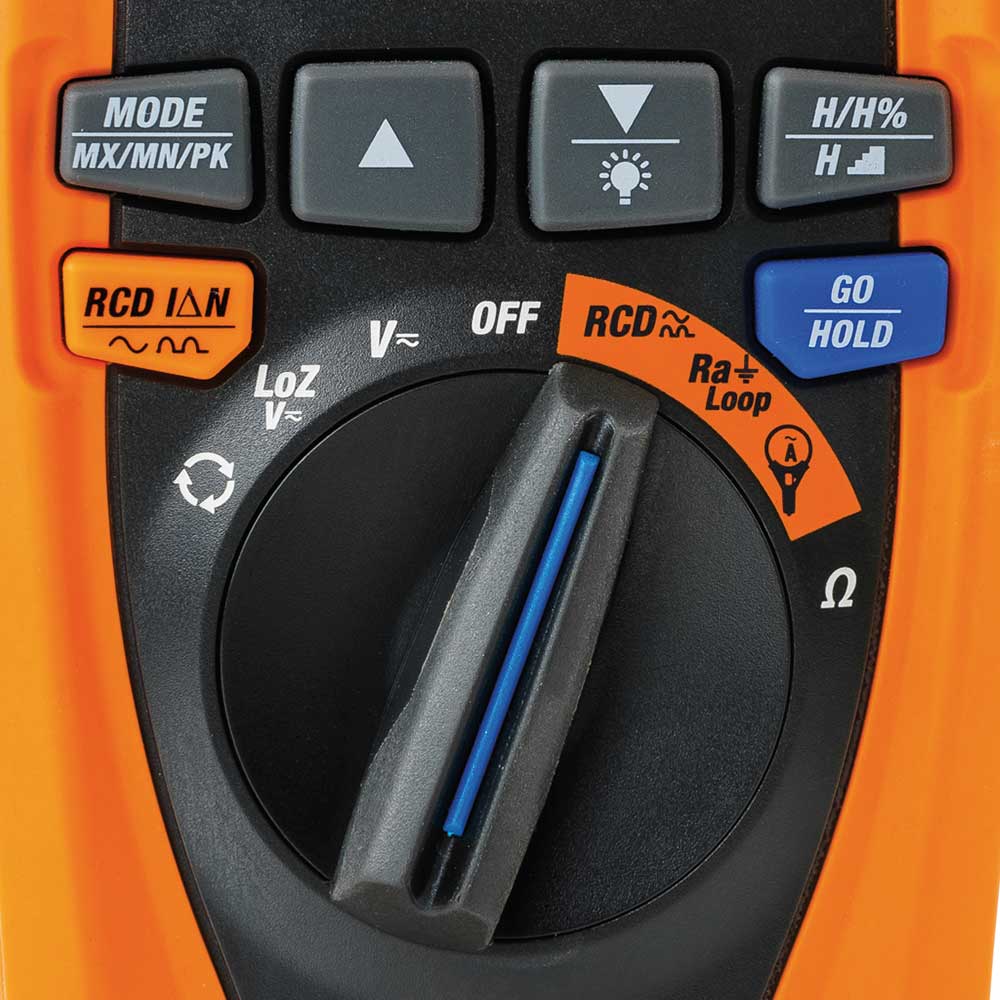

Bat take a look on my rotary switch
RCD tripping time and current: full control!

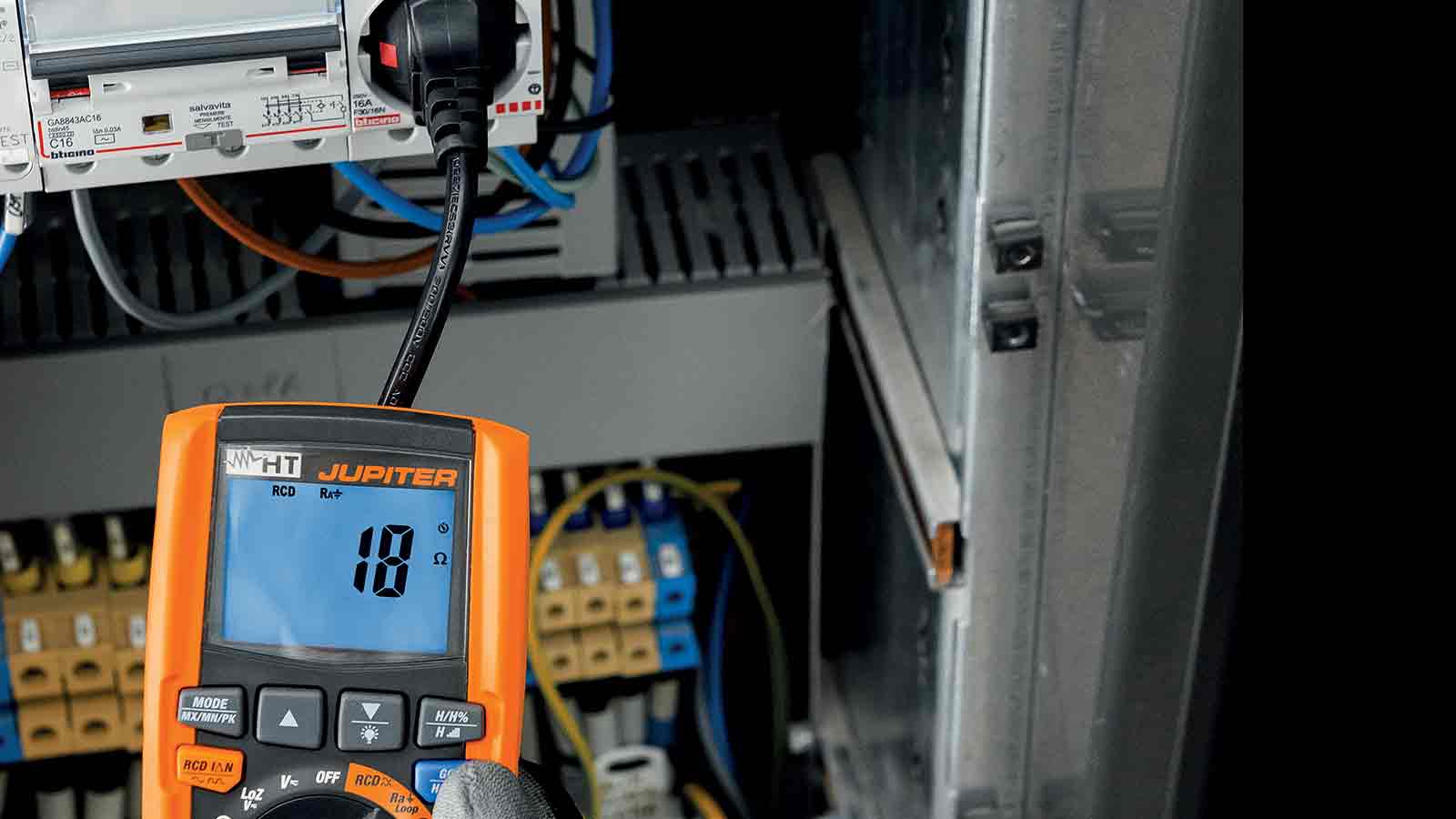

Non-trip earth ground resistance and Line (Loop) impedance

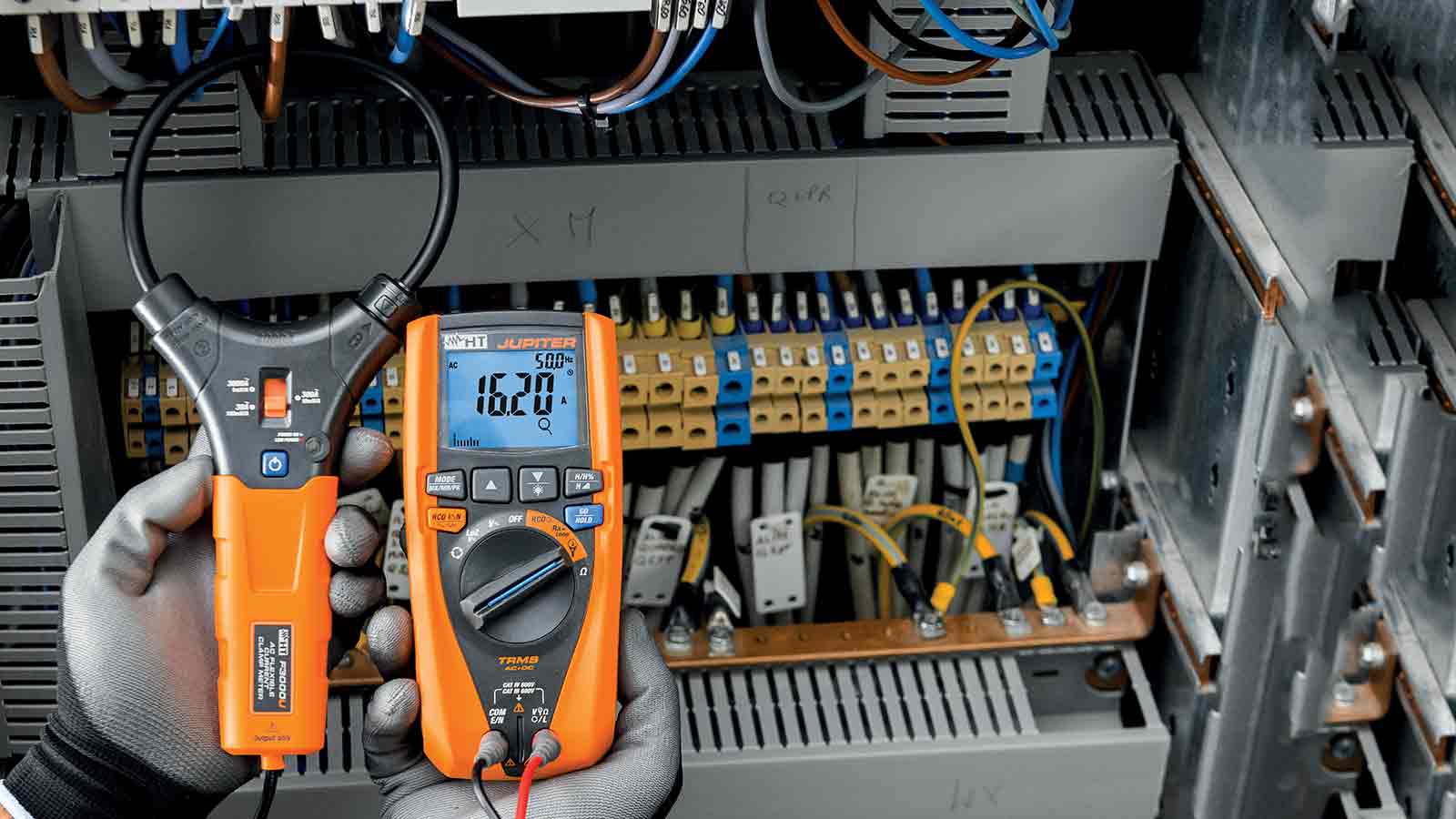

Current measurement.

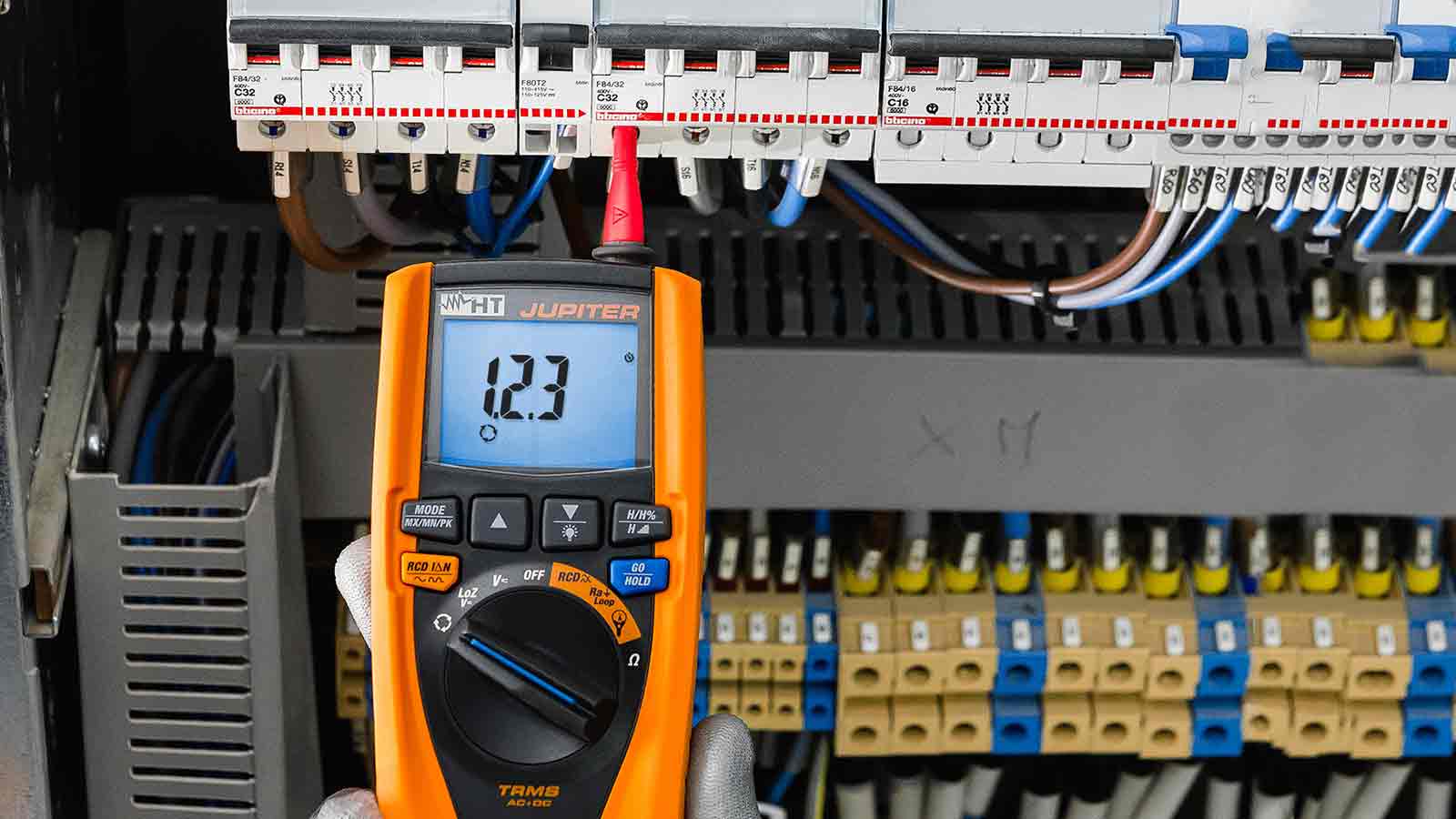

Phase sequence.
