HT9025T | AC/DC

HT9025T

AC/DC TRMS 1000A clamp meter with integrated thermal imager 120 x 120 pxl

HT9025T has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025T also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera 120 x 120 pxl. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.



Functions
TRMS
Current measuring range 1000A
AC/DC current AC+DC
AC/DC voltage 1000VAC/1500VDC
IR Resolution 120 x 120 pxl
Leakage current with optional clamp meter External pliers
Frequency
Resistance and continuity test with buzzer
Capacity
Diode test
Duty Cycle (%)
Temperature with K-type probe
AC/DC current
Inrush current measurement (INRUSH)
Measurement category
Maximum diameter for clamp 40mm
Measuring counts 6000
Backlight
Bargraph
Autorange
Auto power off
Detection of AC voltage without contact
Data HOLD function
MIN/MAX function
Relative measurement
Colour LCD display
Datalogger and Graph
Memory for data saving

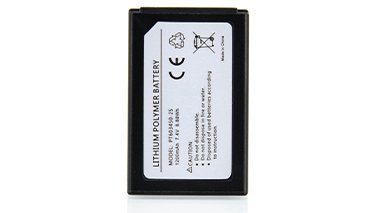

Power supply LI-ION battery
Size (LxWx H) (mm) 280x100x50
Weight in grams (batteries included) 505
Guidelines
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • IEC/EN61010-1

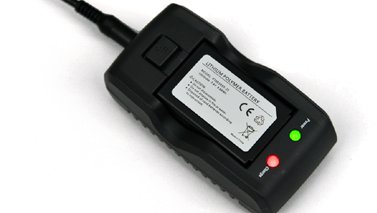

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
