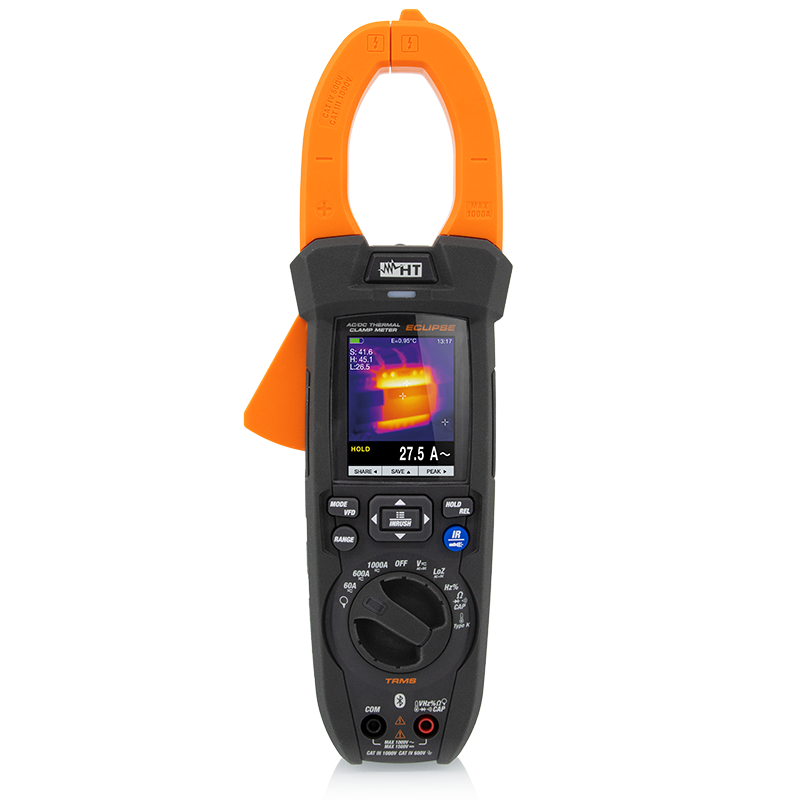

ECLIPSE has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. ECLIPSE also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.
Functions
TRMS
|
|
Current measuring range
|
1000A |
AC/DC current
|
AC+DC |
AC/DC voltage
|
1000VAC/1500VDC |
Leakage current
|
External Clamp |
Frequency
|
|
Resistance and continuity test with buzzer
|
|
Capacity
|
|
Diode test
|
|
Duty Cycle (%)
|
|
Temperature with K-type probe
|
|
AC/DC current
|
with external clamp transducer |
|
|
Inrush current measurement (INRUSH)
|
|
Measurement category
|
CAT IV 600V CAT III 1000V |
Maximum diameter for clamp
|
40mm |
Measuring counts
|
6000 |
Backlight
|
|
Bargraph
|
|
Autorange
|
|
Auto power off
|
|
Detection of AC voltage without contact
|
|
Data HOLD function
|
|
MIN/MAX function
|
|
PEAK function
|
|
Relative measurement
|
|
Thermal imager
|
|
Colour LCD display
|
|
Internal memory for data saving
|
|
Datalogger and Graph
|
|
PC / Smartphone or Tablet interface
|
Bluetooth |
Power supply
|
Li-ION battery |
Size (LxWx H) (mm)
|
280x100x50 |
Weight in grams (batteries included)
|
505 |
IR sensor resolution
|
80x80 |
Temperature range
|
20 + 260°C / -4 + 500°F |
Thermal sensitivity / NETD
|
<0.1°C / @ 30°C |
NETD
|
<100mK |
Spectrum range
|
8 + 14µm |
IFOV
|
4.53mrad |
Type of IR sensor
|
UFPA |
Frequency
|
50Hz |
Field of view (FOV)
|
21° X 21° |
Lens
|
7,5mm |
Focus mode
|
Fixed |
3 cursors: Central, Min, Max.
|
|
Color Palettes
|
5 |
Readings in °C, °F, °K
|
|
Class 2 laser pointer
|
|
Integrated white light illuminator
|
|
Manual and automatic span
|
Automatic |
Standard format of saved images JPEG
|
BMP |
Recharging system
|
External charging base |
Battery operation time
|
8 hours |
Provided external power supply
|
100/240VAC (50/60Hz)/ 12VDC |
Operating temperature
|
5°C + 40°C |
Operating humidity
|
<80%RH |
|
-20°C + 60°C |
Storage humidity
|
<80%RH |
Mechanical protection
|
IP40 |
Guidelines
-
EMC 2014/30/EU
-
EMC: IEC/EN61326
-
IEC/EN61010-1
STANDARD ACCESSORIES
Calibration report
Calibration report
Codmetel: -
TK101
K-TYPE WIRE PROBE
Codmetel: HA000108
- Probes: K-type thermocouple
- Operating temp.: -40÷250°C
- Response time: 4s
- Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)
T10
ADAPTER FOR CONNECTION OF TK TEMPERATURE
Codmetel: HA100010
This adapter can be used with all multimeters and clamp meters capable of carrying out temperature measurements.
4324-2
Pair of test tips red, black 2/4mm straight banana
Codmetel: HA000765
- Measurement category: CATII 1000V without cap (CATIII 1000V and CATIV 600V with cap)
- Lead overall length: 15cm
- Tip length: 18mm
- Tip diameter: 2mm without lantern / 4mm with lantern
- Cable length: 120cm cable only (140 with banana and tip)
- Banana diameter: 4mm
BAT64
RECHARGEABLE BAT
Codmetel: HA000219
Spare battery for HT64 / HT9025 / ECLIPSE
A0EC95
Multiplug charger power supply complete with charging base
Codmetel: HAEC9500
OPTIONAL ACCESSORIES
HT96U
Codmetel: HP00096U
- Measuring range: 1mA÷1000A
- Basic Precision: ± 1.0%reading
- Basic accuracy: CAT III 600V
- Clamp jaw internal diameter: 54mm
- Output connector: custom HT
HT97U
STANDARD CLAMPS FOR AC CURRENT
Codmetel: HP000972
- Measuring range: 0.1÷1000A
- Basic accuracy: ± 1.0%reading
- Measurement category: CAT III 600V
- Clamp jaw internal diameter: 54mm
- Output connector: Hypertac
HT98U
STANDARD CLAMP FOR DC CURRENT
Codmetel: HP00098U
In combination with Multimeters and Clamps, the NOCANBA adapter (optional accessory) is required.
In combination with the PQA820 instrument, the ACONBIN adapter (optional accessory) is required.
- Measuring range: 1÷1000A
- Basic precision: ±(1.0%reading +0.5A)
- Basic accuracy: CAT III 600V
- Clamp jaw internal diameter: 52mm
- Output connector: Hypertac
TK107
TEMPERATURE OF AIR AND GAS
Codmetel: HA110000
- Probes: K-type thermocouple
- Operating temp.: -40÷800°C
- Response time: 4s
- Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)
TK108
INTERNAL TEMPERATURE OF LIQUIDS AND SEMI-SOLID SUBSTANCES
Codmetel: HA110001
- Probes: K-type thermocouple
- Operating temp.: -40÷800°C
- Response time: 4s
- Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)
TK109
INTERNAL TEMPERATURES OF LIQUID AND SOLID SUBSTANCES, FRUIT AND FOOD
Codmetel: HA110002
- Probes: K-type thermocouple
- Operating temp.: -40÷800°C
- Response time: 4s
- Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)
TK110
TEMPERATURE OF SURFACES
Codmetel: HA110003
- Probes: K-type thermocouple
- Operating temp.: -40÷400°C
- Response time: 4s
- Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)
TK111
TEMPERATURE OF SURFACES WITH 90° FIXED TIP
Codmetel: HA110004
- Probes: K-type thermocouple
- Operating temp.: -40÷400°C
- Response time: 4s
- Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)
NOCANBA
HYPERTAC ADAPTER FEMALE MALE BANANA
Codmetel: HA00NOCA
F3000U
Codmetel: HP03000U
AC flexible clamp with 30/300/3000A full scales
HT4006
AC/DC current clamp with 40/400A full scales
Codmetel: 2058
- Measurement range: 0.1A÷40A AC/DC (40A range)
- Measurement range: 0.5A÷400A AC/DC (400A range)
- Basic accuracy: ± 2.5%reading
- Measurement category: CAT III 600V, CAT IV 300V to ground
- Max cable diameter: 30mm
- Output connector: safety banana, cable length 1m
