Clamp meter with measurement of powers/harmonics and inrush currents

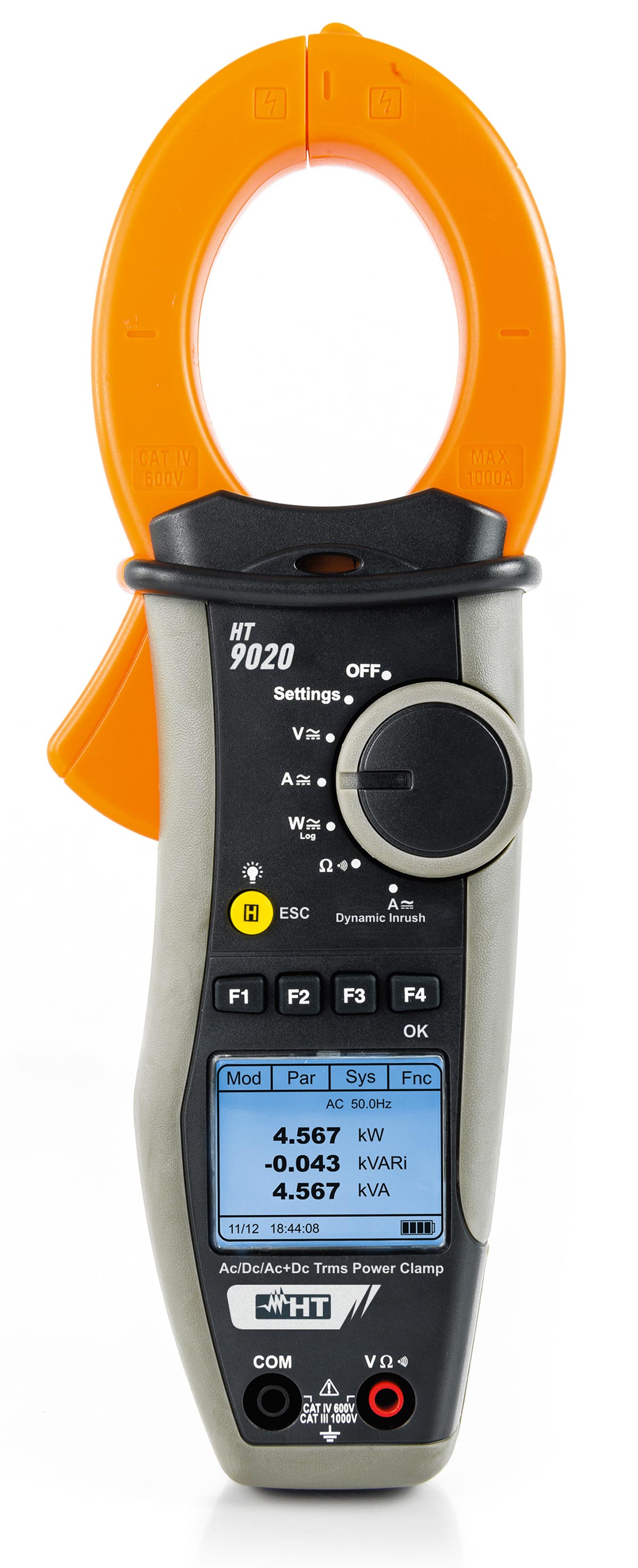

HT9020

Clamp meter with measurement of powers/harmonics and inrush currents

Professional clamp-on power quality analyzer with DYNAMIC INRUSH™

Clamp-on power quality analyzer HT9020 has been designed for measuring DC, AC+DC TRMS current up to 1000A according to CAT IV 600V in compliance with standard IEC/EN61010-1

HT9020 carries out measurements of Active, Reactive and Apparent Power and Energy, voltage and current harmonic analysis up to the 25th order with THD% calculation, in single-phase or three-phase balanced systems. It also tests phase sequence and phase conformity by 1-lead measuring method as well as detects any event related to electric motor starting currents (DYNAMIC INRUSH).  DYNAMIC INRUSH™ permits to measure inrush currents with user-defined time frames, providing measurements more reliable than standard fixed time-frame testers. The user has the chance to recall and display the measurement by applying different time frames. For example, if the user carries out a measurement using a time frame of 100 ms, he can post-process the same measurement by applying a time frame of: 16,7, 20, 50, 100, 150, or 200 ms. This grants the utmost flexibility for each measurement, and prevents to measure again and again to get the real inrush current value. HT9020 is provided with traceable calibration certificate.

Functions
Maximum diameter for clamp
TRMS
Current measuring range 1000A
Measuring counts
AC/DC voltage 1000V
AC/DC current AC+DC
Resistance and continuity test with buzzer
Frequency
AC/DC voltage, current measurement/recording
Measurement/recording of Active, Reactive, Apparent AC/DC Power
Measurement/recording of Active, Reactive, Apparent AC/DC Energy
Measurement/recording of Cosphi, Power Factor
Measurement/recording of V-I harmonics up to the 25th with THD%
Phase sequence and phase concordance
Inrush current measurement (INRUSH)
Data HOLD
Bargraph
Backlit LCD display
PEAK
MAX/MIN
Data HOLD
Autorange
Auto power off
Power supply
Measurement category CAT IV
Weight in grams (batteries included)
Size (LxWxH) (mm)
Guidelines
  • CE MARK
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • IEC/EN61010-1
  • IEC/EN61187
  • LVD 2014/35/EU

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
