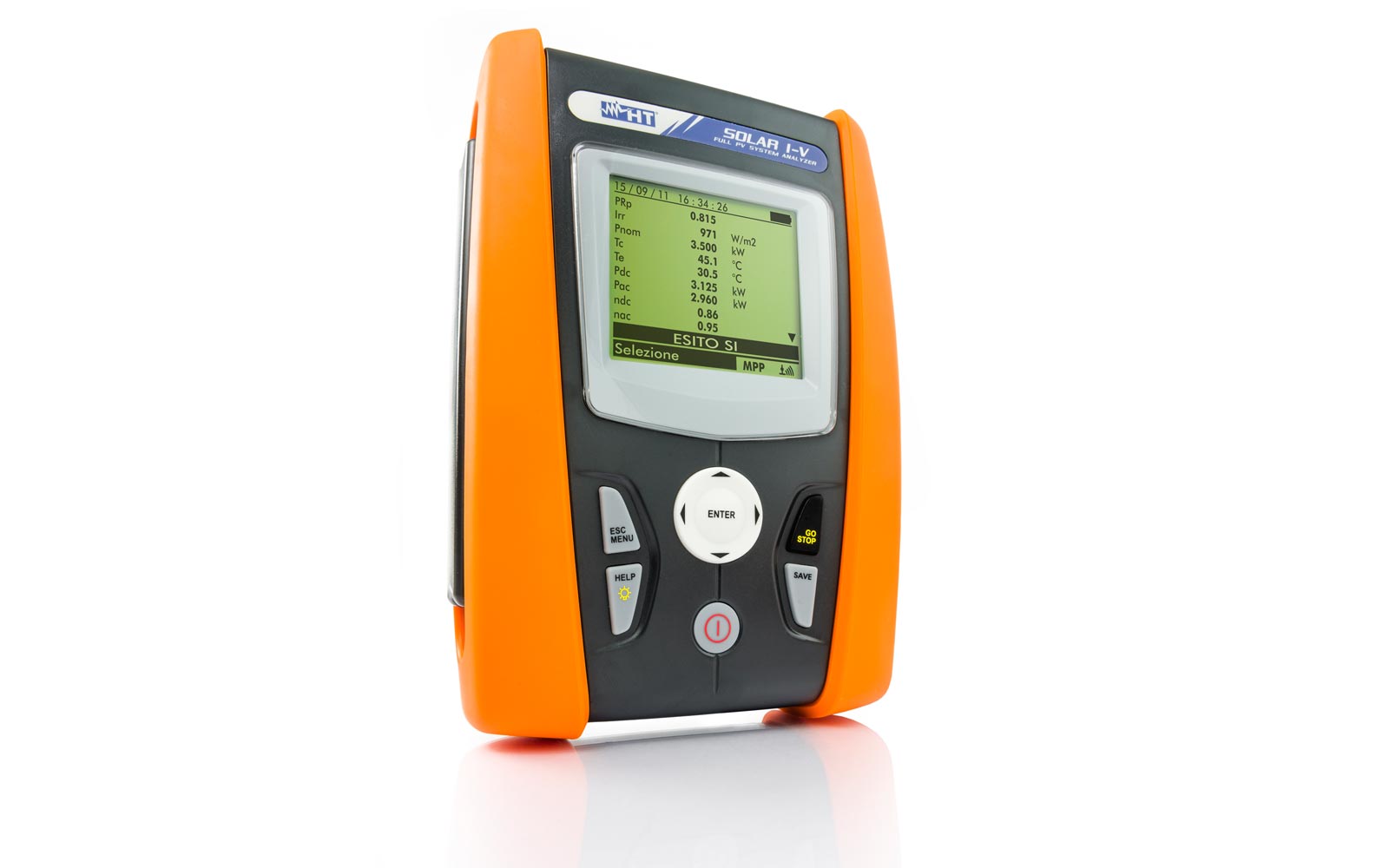

SOLAR I-Ve

1500V Multifunction I-V Curve Tracer compatible with HTANALYSIS™

1500V Multifunction I-V Curve Tracer for maintenance and efficiency tests on single-phase installations.

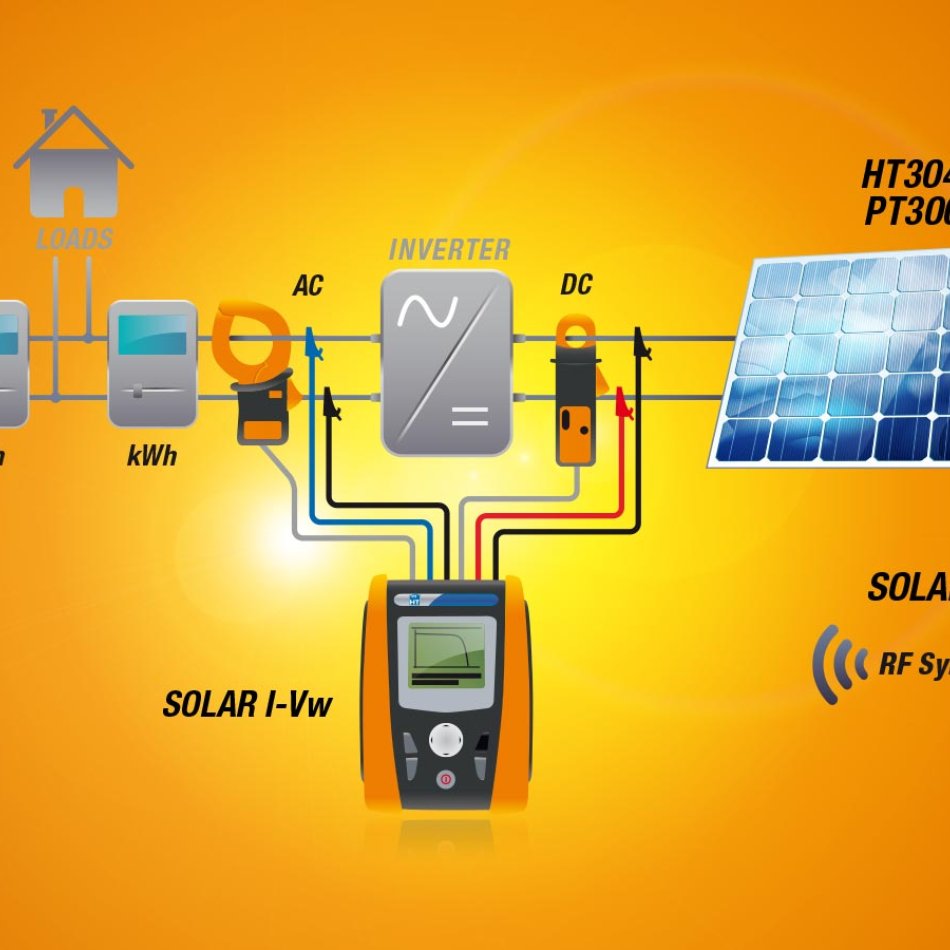

  • Measurement of efficiency of a single-phase photovoltaic system

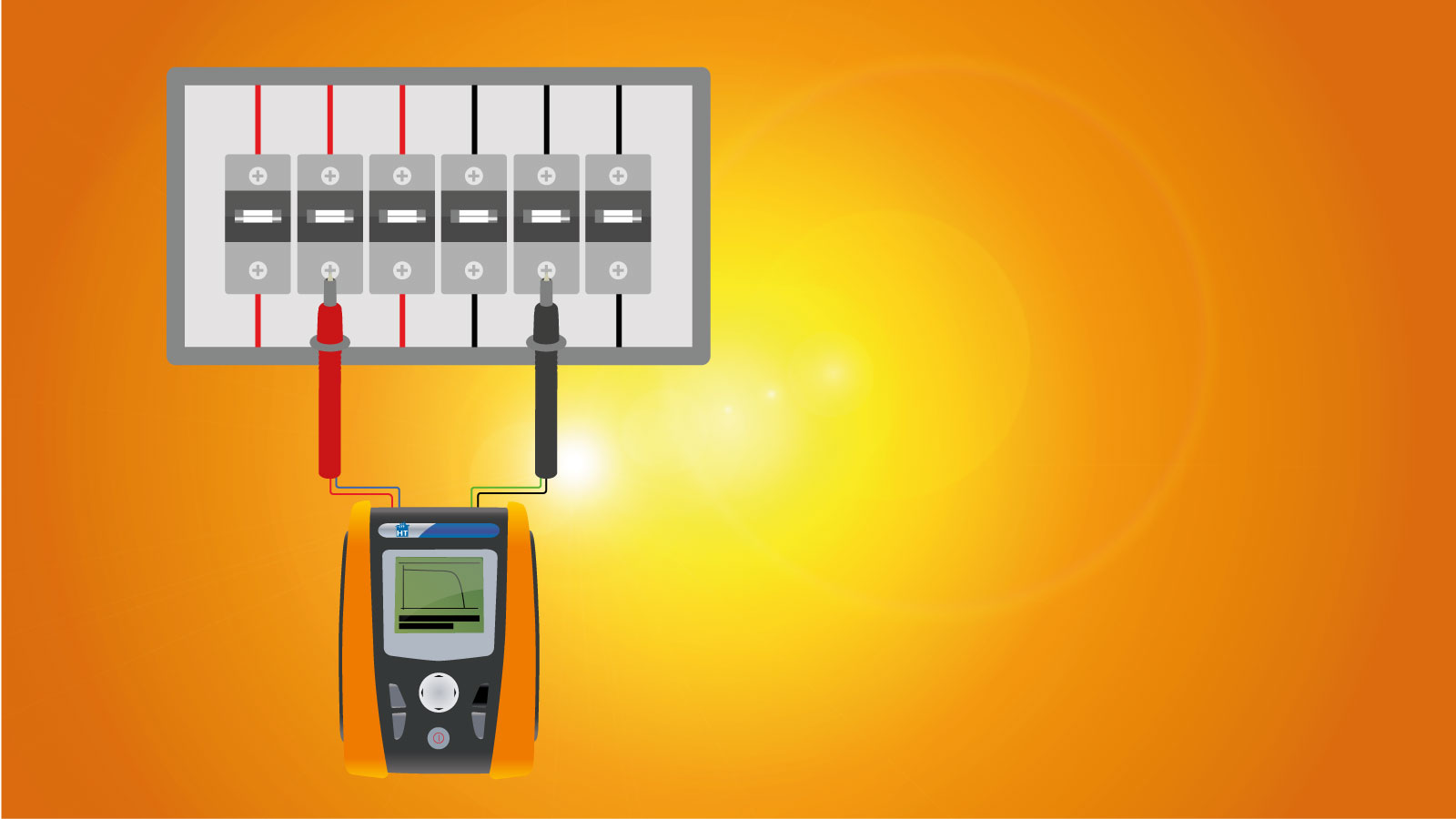

  • Measurement of I-V Curve of a module or of a string up to 1500V/10A - 1000V/15A

  • Measurement of open-circuit voltage of a module or of a string (VOC) 1500V

  • Measurement of short-circuit current of a module or of a string (ISC) 15A

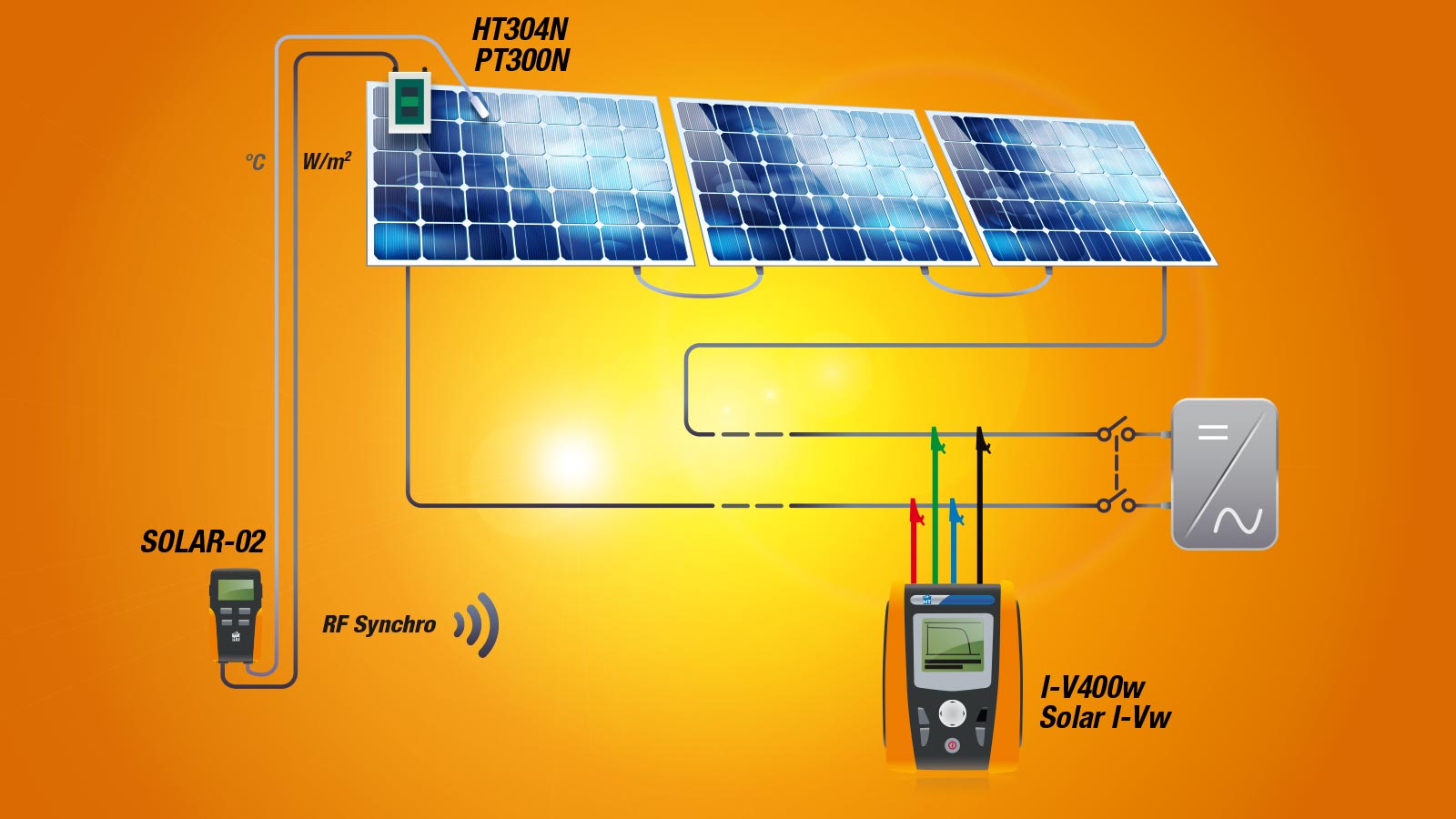

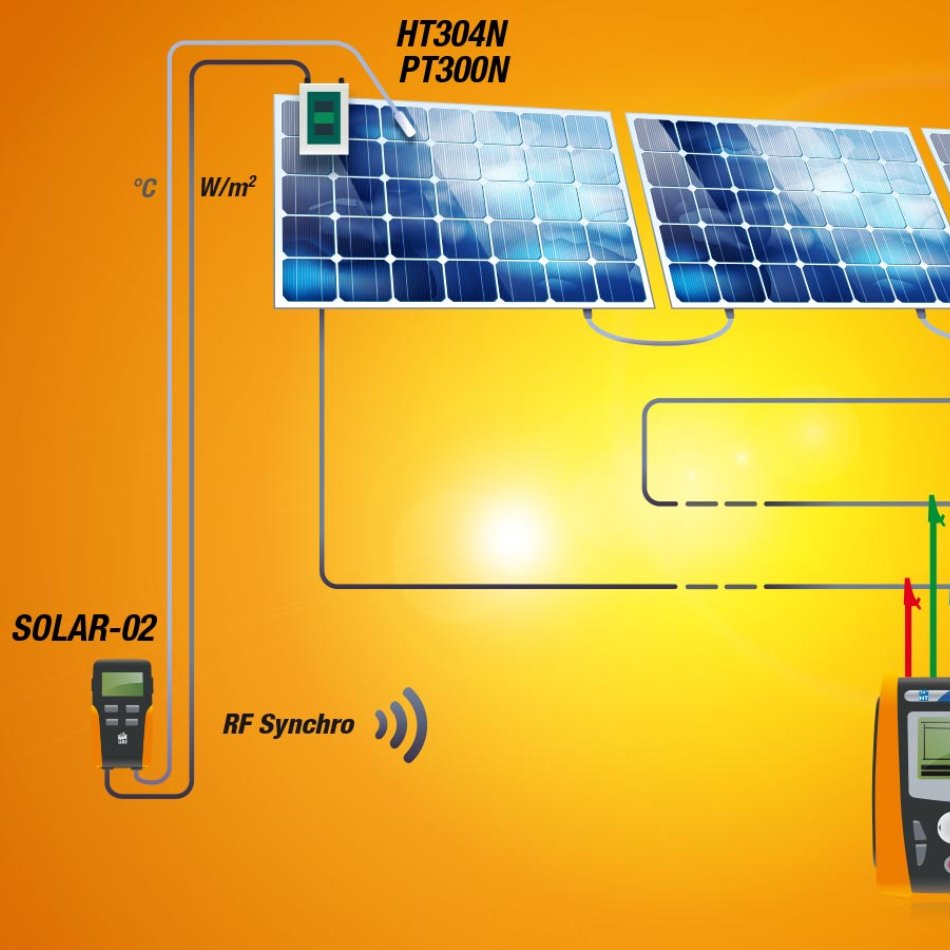

SOLAR I-Ve allows both testing a single-phase photovoltaic system and verifying I-V curve. Thanks to remote unit SOLAR02, it is possible to test the system complying with the requirement of simultaneity as provided for by the reference standard. SOLAR02 is a datalogger which, synchronized with SOLAR I-Ve, acquires the data relevant to irradiation and temperature while tests carried out by SOLAR I-Ve are carried out.

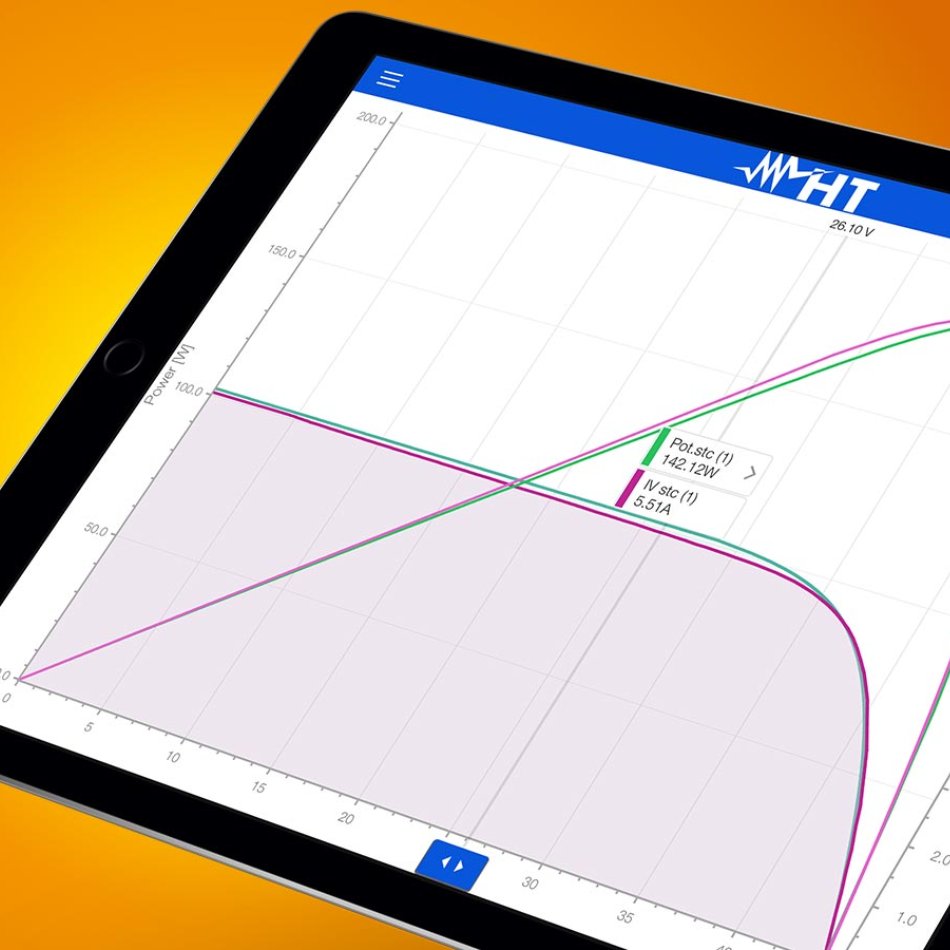

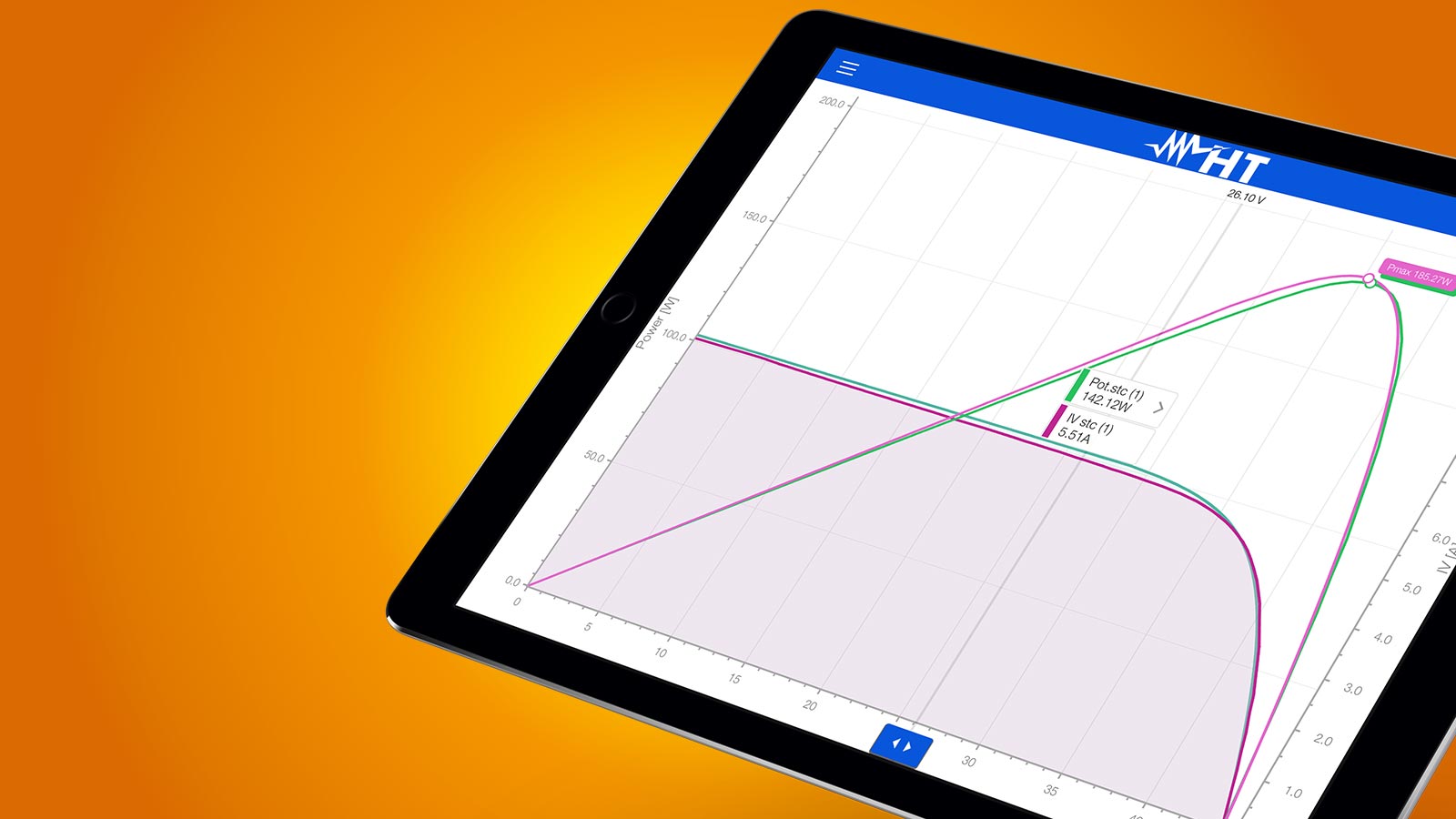

For measuring I-V curve, SOLAR I-Ve manages an internal database of the modules, which can be updated at any time by the user by comparing the measured data with the rated values, thus allowing the immediate evaluation whether the string or the module fulfills the efficiency parameters declared by the manufacturer. Current and voltage measurement at modules/strings output is measured with the 4-terminal method, which allows extending possible measuring cables without considering any compensation of their resistance, thus obtaining always precise measurements. At the end of the test, the display of I-V curve on the screen is a clear indication about the compliance with the specifications declared by the panel manufacturer.

Functions

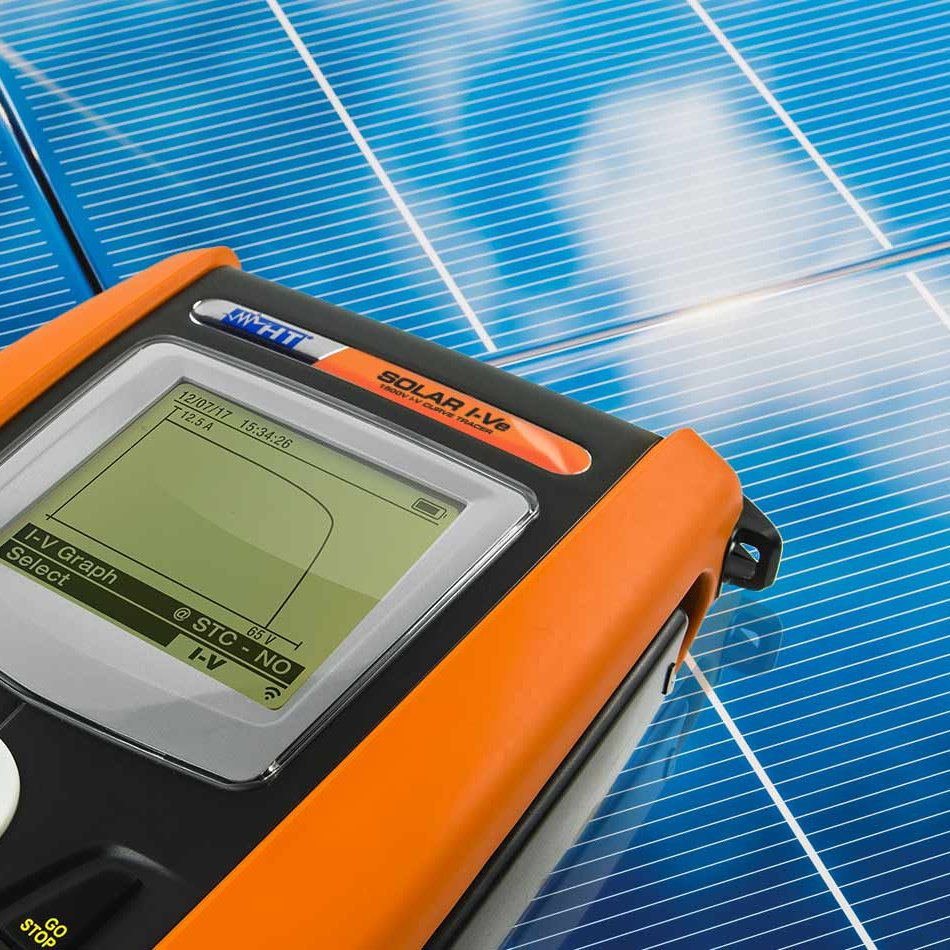

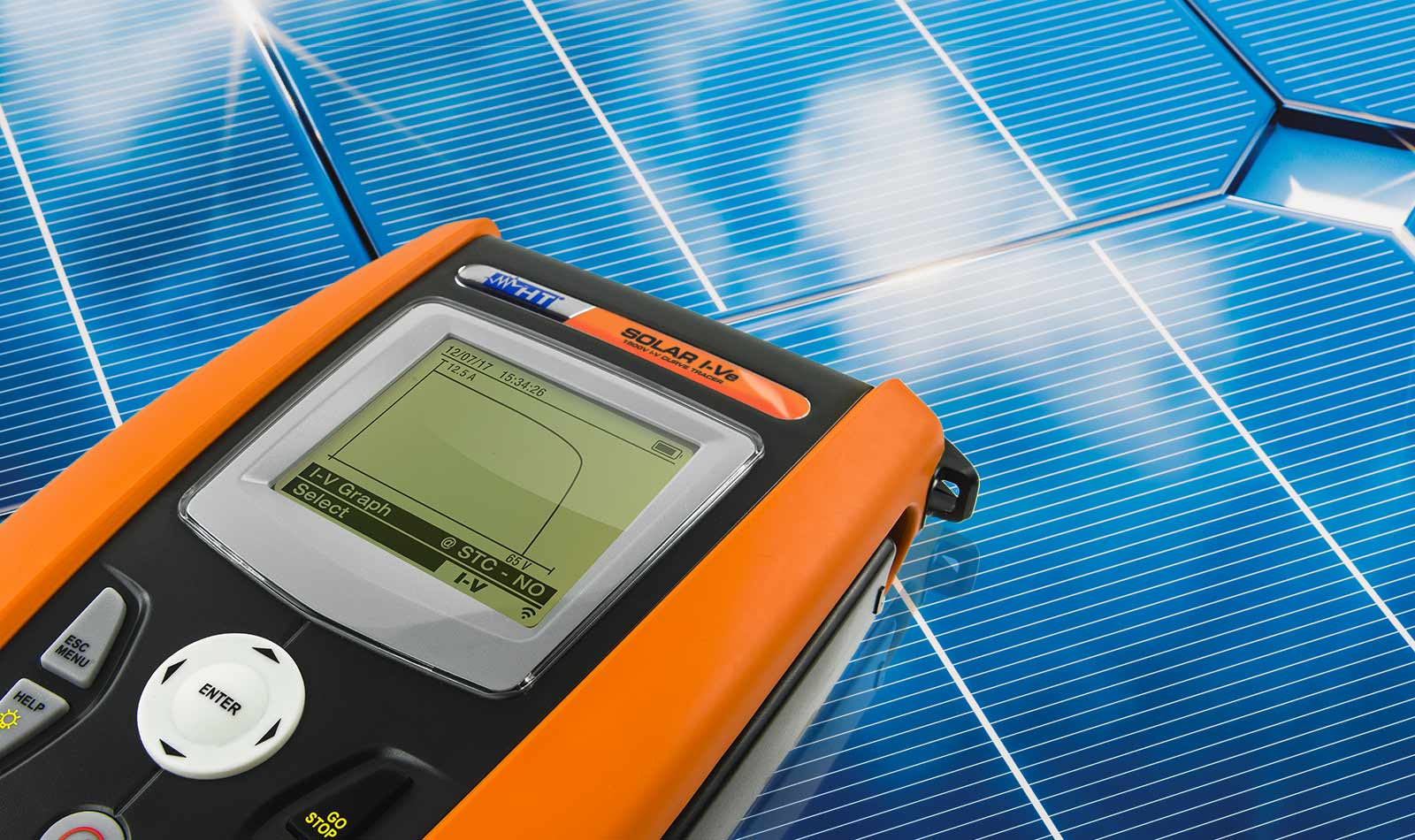

I-V curve tracing of PV modules and strings 128 points
Measuring range of I-V curve / VOC-ISC 1500V/10A - 1000V/15A

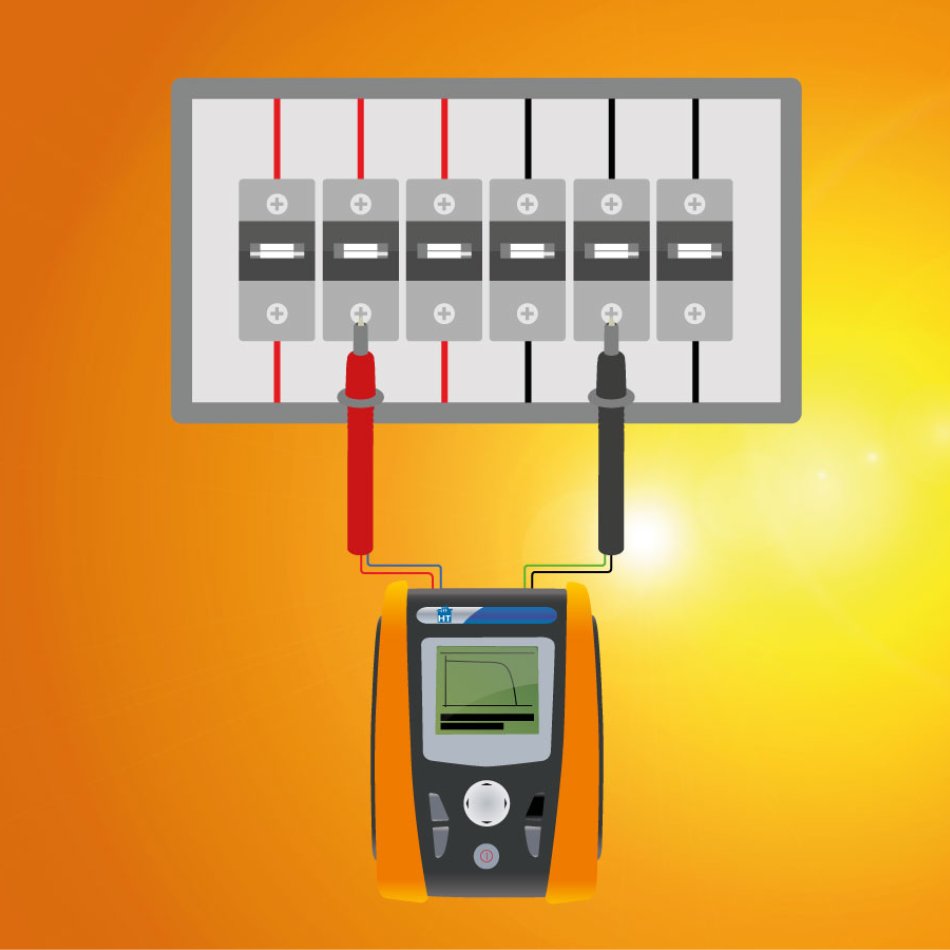

Quick IVCK test for measuring Voc and Isc on PV modules and strings VOC 1500V / ISC 15A
Single-phase/three-phase photvoltaic systems’ testing 1MPPT (3MPPT with MPP300)
Measurement of direct (front side) irradiation with reference cell
Use of remote unit SOLAR-02 with USB \ RF connection RF
Temperature measurement of cell and environment
Active P, Reactive Q, Apparent S Power/Energy only active P
Max number of simultaneously selectable parameters 9
Recording with selectable integration period 5s-60m
Indicative memory duration (in days @ PI=10min @ max number of parameters) 8
Summary table of main electric parameters
Measuring range for photovoltaic testing 1500VDC / 265VAC (Single-Phase)
Measurement category CAT III 300V
Backlit LCD display
Internal memory 249 curves I-V 8 days@ PI=10 min
Provided PC interface with software for Windows

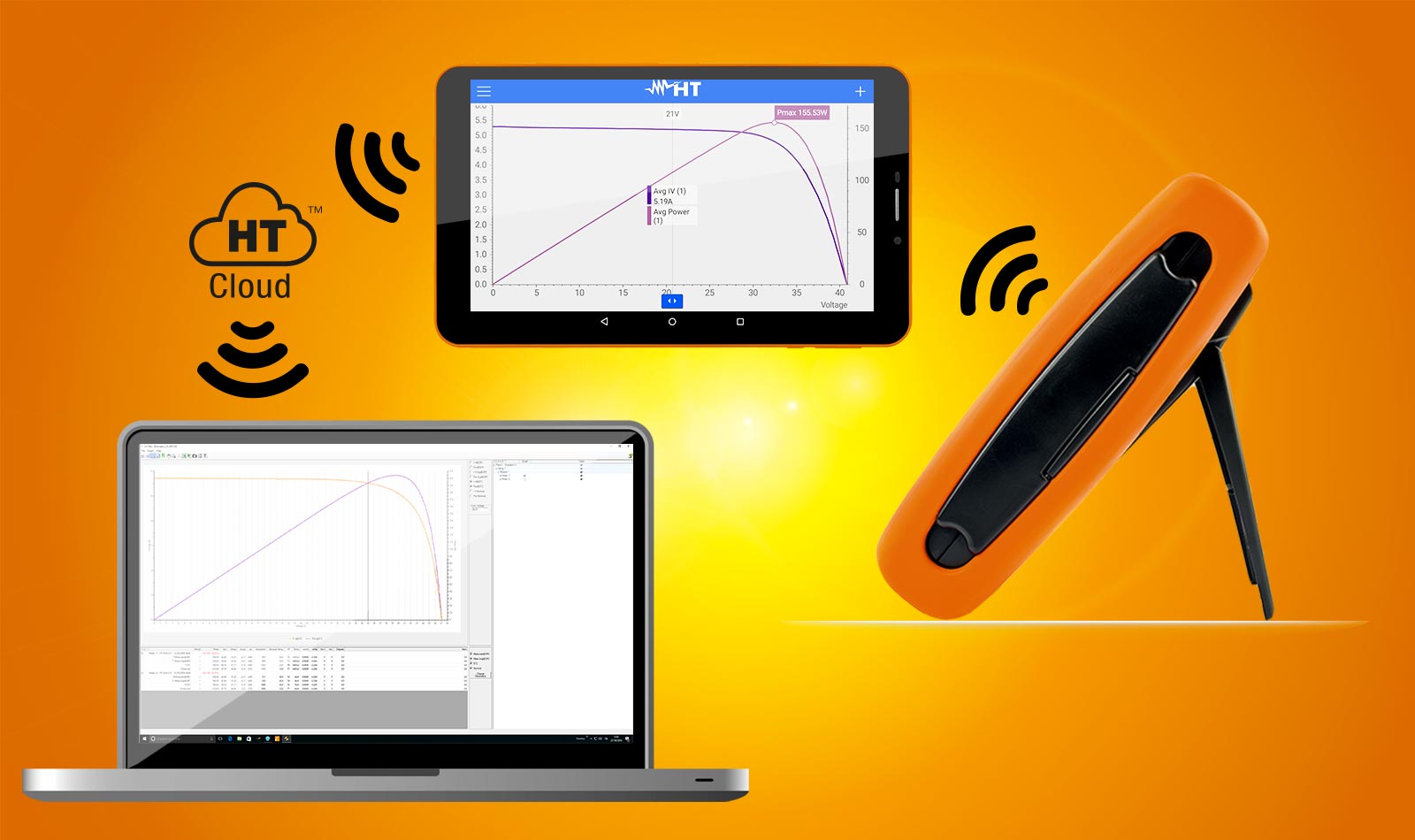

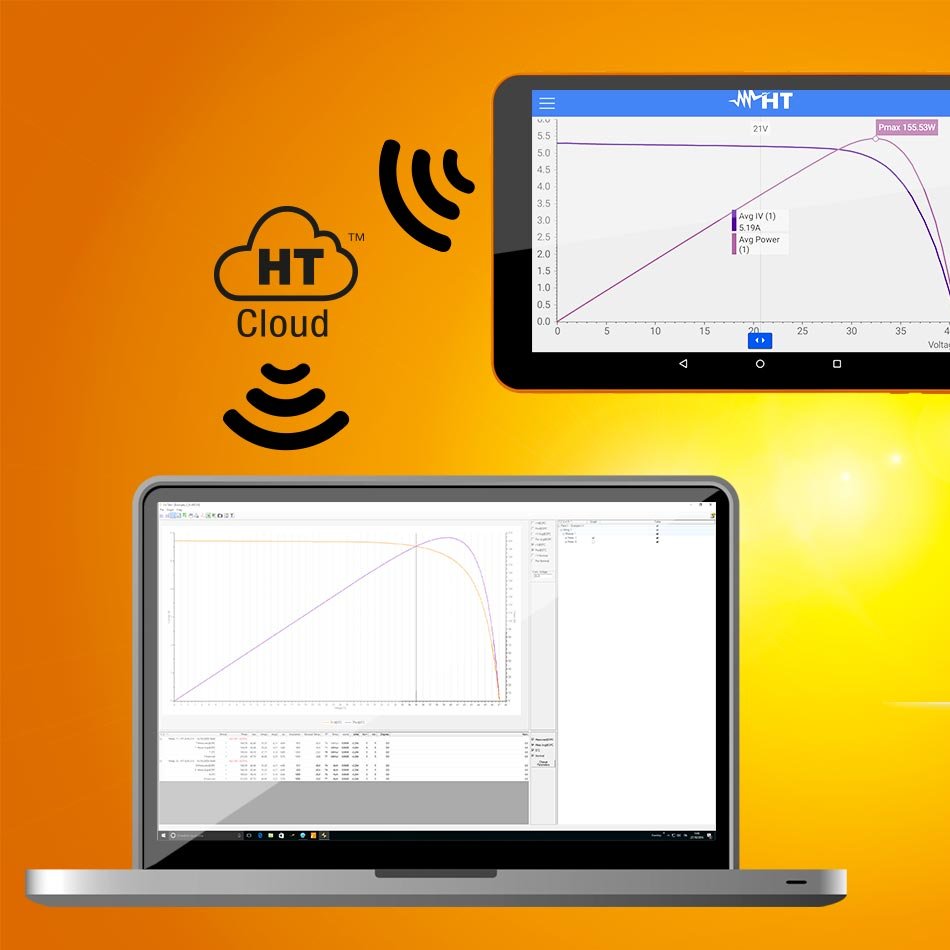

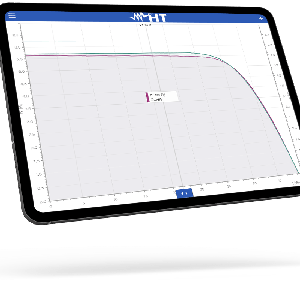

Integrated WiFi connection and compatibility with HTANALYSIS App For data download onto the PC\app

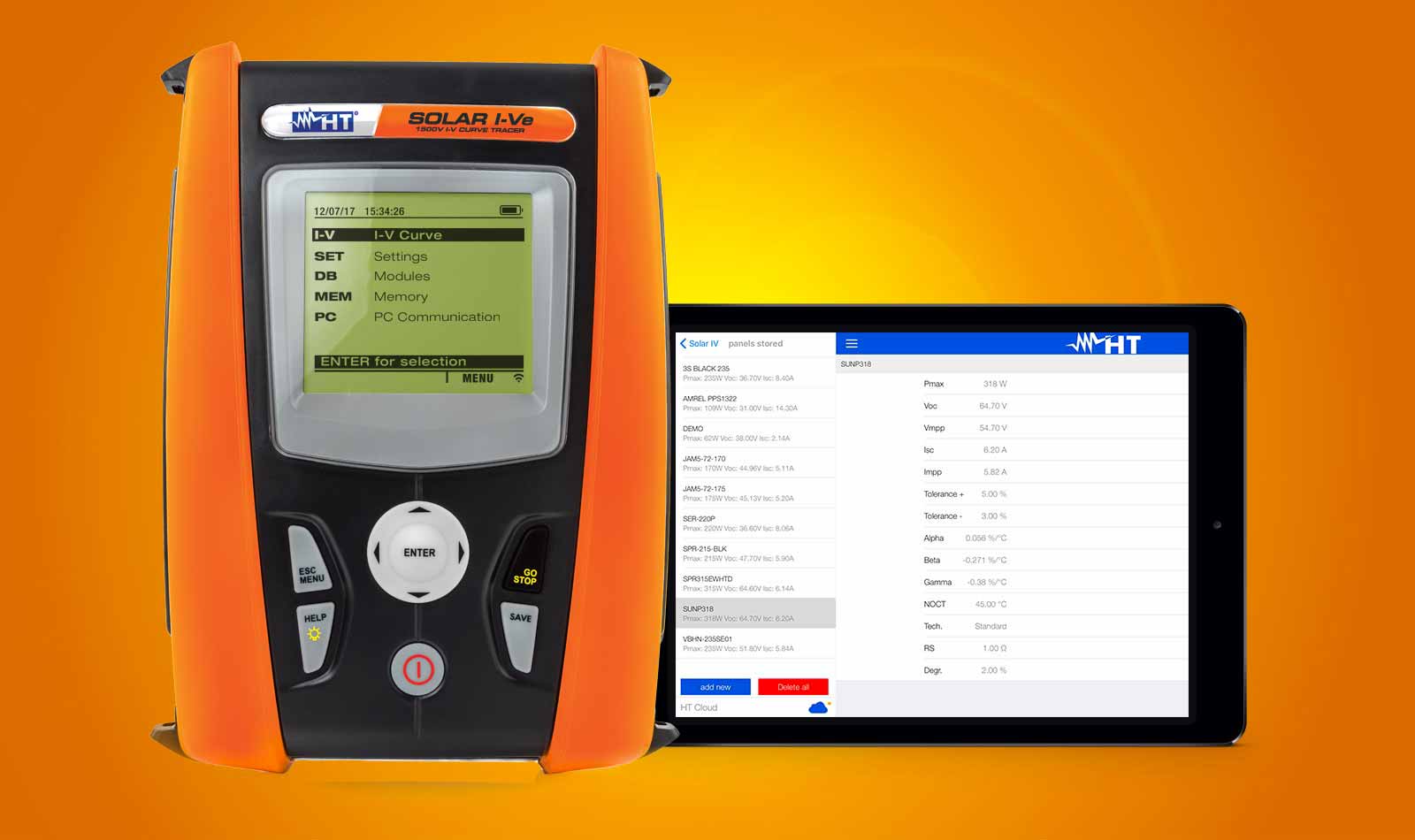

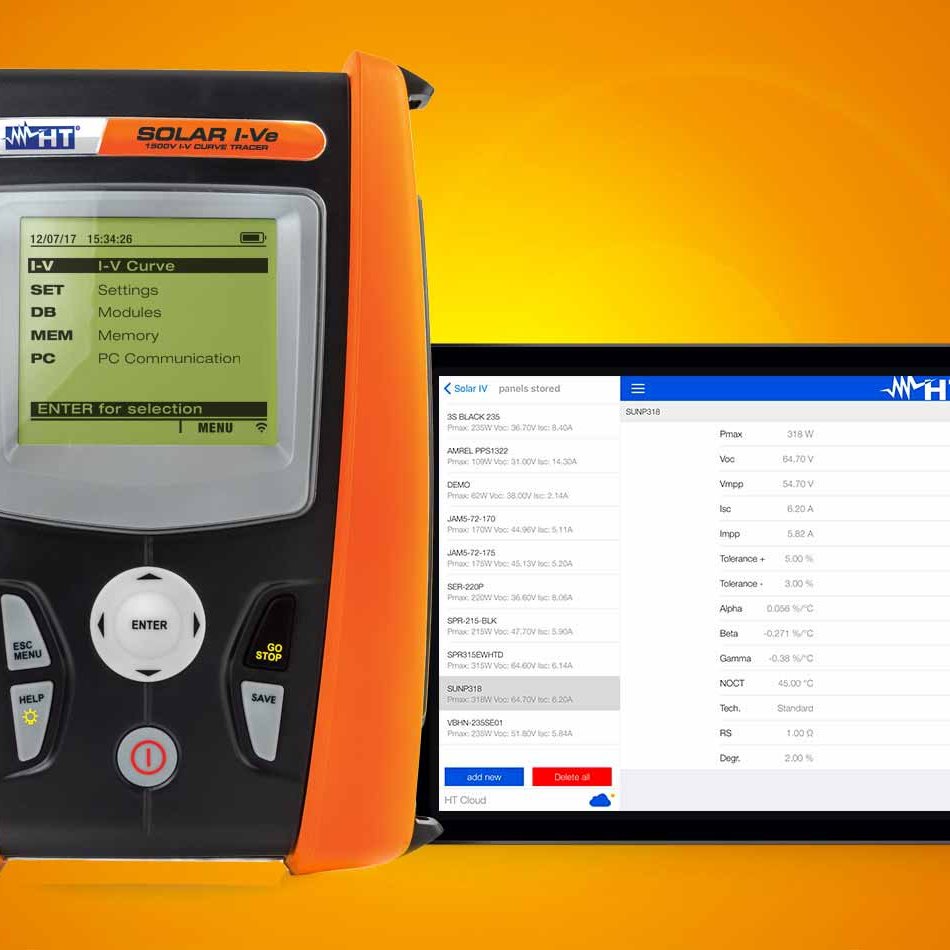

Custom management of internal PV module database 30 internal, 30.000 on software\app
Auto power off
Indication of recording duration for photovoltaic testing
Help on line on the display
Size (LxWx H) (mm) 235x165x75
Weight in grams (batteries included) 1200
Guidelines
  • CEI 64-8 612.6.2
  • CE MARK
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • Guida CEI 82-25
  • IEC/EN60891
  • IEC/EN61010-1
  • IEC/EN61187
  • LVD 2014/35/EU
