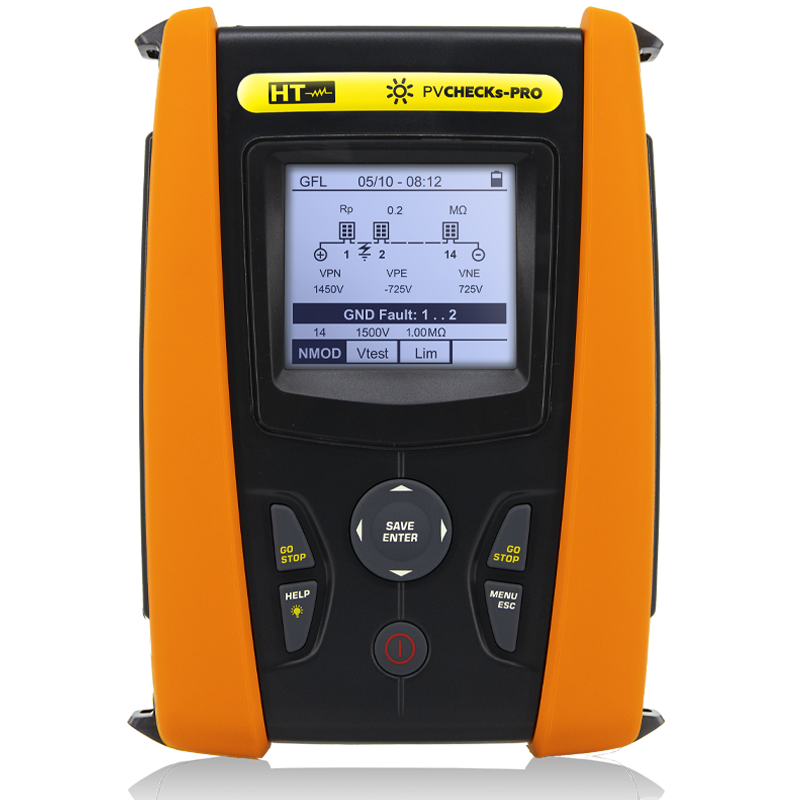

PVCHECKs-PRO
Multifunction commissioning tester up to 1500V / 40A capable of taking the following measurements:
• Insulation measurement on PV modules/strings/fields up to 1500VDC (with PI and DAR calculation)
• Open circuit voltage Voc up to 1500V in accordance with IEC/EN62446
• Short circuit current Isc up to 40A in accordance with IEC/EN62446
• Continuity of protective conductors with 200mA
• Polarity
• GFL function for fault finding on strings and PV modules
• Tests on single-facial and bi-facial modules
• Automatic acquisition of the cell calibration value (by using suitable cells)
PVCHECKs-PRO is a commissioning tester designed to take all safety measurements and verifications of PV installations in accordance with IEC/EN62446. By a single GO-key stroke PVCHECKs-PRO performs all commissioning tests. Thanks to the seamless mode, PVCHECKs-PRO is able to test in sequence all strings of a combiner box by a single GO-key stroke. Finally, the GFL - Ground Fault Locator detects the precise position of the lack of insulation, speeding the troubleshooting.
| Continuity of protective conductors with 200mA | |
| Polarity | |
| Open circuit voltage Voc of PV modules and strings | 1500V |
| Short circuit current Isc on PV modules and strings | 40A |
| PV string/field insulation with test voltage 250, 500, 1000, 1500VDC | |
| Use of SOLAR-03 remote unit with Bluetooth connection | |
| Measurement of direct (front side) irradiation with reference cell | with SOLAR03 remote unit (optional accessory) |
| Temperature measurement of cell and environment | with SOLAR03 remote unit (optional accessory) |
| Measurement of polarization index P.I. | |
| Dielectric absorption ratio D.A.R | |
| GFL function to locate the fault position in the string | |
| Measurement category | CAT III 1000V AC, CAT III 1500VDC |
| Backlit LCD display | |
| Internal memory | 999 Locations |
| Integrated WiFi connection and compatibility with HTANALYSIS App | |
| Optical/USB serial port for PC connection | |
| Custom management of internal PV module database | |
| Auto power off | |
| Help on line on the display | |
| Size (LxWx H) (mm) | 235x165x75 |
| Weight in grams (batteries included) | 1200 |
Compatibility with models provided with optical interface.
Shoulder belts (2pcs) for sheaths with hooks
Set of 2 MC4/banana cables + 2 MC4/crocodile adapters 3m RN
Set of 2 banana cables + integrated crocodile BV
SOLAR03
REMOTE UNIT FOR MEASUREMENT OF IRRADIANCE, TEMPERATURE AND INCLINATION OF PV MODULES
• Measurement range: 0÷1400W/m2
• Basic Accuracy: ± 1.0%rdg
• Type of PV modules: Single-sided and Double-sided
• Measurements: Irradiance (with HT305 cell) and module temperature (with PT305 probe)
• Recording: irradiation and temperature values coupled with Master unit
• Internal memory: about 60 hours (@ fixed PI =1s)
• Degree of protection: IP67
• Dimensions: 155x100x55mm
• Weight: 350g (including batteries)
• Power supply: 2 1.5V AA-type alkaline batteries or 1.2V AA-type NiMH rechargeable batteries
• Master unit connection: Bluetooth BLE
• Output connection: USB-C for battery charging
• Input connectors: custom HT 5 poles
• Automatic acquisition of the cell calibration value (by using suitable cells)
PT1000 probe for cell temperature measurement
Extension kit VN 20m bnaM-bnaF for PVCHECKs PRO
CALIBRATION REPORT INCLUDED.
Measuring range: 100 ÷ 1400W/m2
Basic accuracy: ±3.0% reading
Type of cell: Monocrystalline
FOV angle: >160°
IP rating: IP65 according to IEC/EN60529
Output connector: custom 5-pin HT connector
Connection cable: approx. 2m
Dimensions (WxDxH): 111x85x28mm
Weight: 240g
Internally stored calibration parameters
Strap with magnetic termination for attaching or hanging tools:
HT61, HT62, HT63, HT64, HT65
JUPITER
NEPTUNE
KIT OF 2 X HT305, REFERENCE CELLS FOR IRRADIATION MEASUREMENT
