Hand-held LAN wire mapper

QUICKLAN6055

Mobile device for cable tests in LAN networks

Hand-held LAN wire mapper

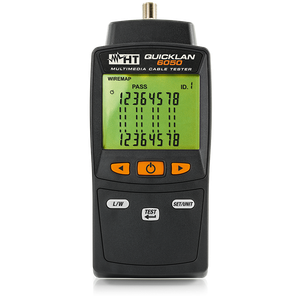

QUICKLAN6050 and QUICKLAN6055 are capable of detecting and indicating the display the presence of incorrect connections on LAN cables (crossed, split, reversed, shorted pairs, etc.) both of type UTP (unshielded) and of type STP or FTP (shielded/foiled).

QUICKLAN6050 also allows measuring cable length and saving the results of the tests in its internal memory. Each model is provided with more remote units and is capable of recognizing further (optional) ones, in order to create an efficient localization action on different spots inside a patch panel, carrying out tests very quickly with the aid of a single operator. QUICKLAN6050 and QUICKLAN6055 are the ideal solution for any installer who needs simple and efficient devices to carry out preliminary checks and verifications on RJ45 LAN installations.

Functions
Cable mapping on LAN networks
Tests on twisted pair cables RJ45 type UTP, STP and FTP
Errors of open pairs
Errors of short-circuited pairs
Errors of exchanged pairs
Errors of inverted pairs
Errors of split pairs
Generic errors (MISWIRE)
Power supply 1 x 9V type 6F22
Size (LxWxH) (mm) 190x65x45
Weight in grams (batteries included) 235
Guidelines
  • CE MARK
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • IEC/EN61010-1
  • TIA 568B

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
