HT65

TRMS digital multimeter for DC voltage measurements up to 1500V

OVERVIEW
SPEC
DOWNLOAD
ACCESSORIES

Codmetel: HR000065

HT65 belongs to the TRMS CATIV 600V series of digital multimeters, made unique by the ability to measure DC voltage up to 1500V. It is also able to measure the temperature through the K probe, the AC / DC current with an external transducer, and the LoZ low impedance voltage input. Like the other multimeters in the series, it has an Autorange function and a defined backlit display.

Functions

TRMS
AC/DC voltage	1000VAC/1500VDC
LoZ Input
AC/DC current	with external transducer
Frequency
Resistance
Continuity with buzzer
Capacity
Diode test
Duty Cycle (%)
Temperature with K-type probe
Protection category	CAT IV 600V CAT III 1000V
Measuring counts	4000
Backlight
Autorange
Auto power off
Data HOLD
Relative measurement
Power supply	1x 9V 6F22
Size (L x W x H)	175x85x55
Weight in grams (batteries included)	360

Guidelines

CE MARK

EMC: IEC/EN61326

IEC/EN61010-1

Downloads

Tutorials

STANDARD ACCESSORIES

Calibration report

Calibration report

Calibration report

Codmetel: -

B80

Codmetel: HA001180

Bag for transporting small-sized multimeters, clamps and accessories.

Downloads

TK101

K-TYPE WIRE PROBE

Codmetel: HA000108

Probes: K-type thermocouple
Operating temp.: -40÷250°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

T10

ADAPTER FOR CONNECTION OF TK TEMPERATURE

Codmetel: HA100010

This adapter can be used with all multimeters and clamp meters capable of carrying out temperature measurements.

Downloads

Batteries and user manual

Batteries and user manual

Codmetel: -

4324-2

Pair of test tips red, black 2/4mm straight banana

Codmetel: HA000765

Measurement category: CATII 1000V without cap (CATIII 1000V and CATIV 600V with cap)
Lead overall length: 15cm
Tip length: 18mm
Tip diameter: 2mm without lantern / 4mm with lantern
Cable length: 120cm cable only (140 with banana and tip)
Banana diameter: 4mm

OPTIONAL ACCESSORIES

HT96U

Codmetel: HP00096U

Measuring range: 1mA÷1000A
Basic Precision: ± 1.0%reading
Basic accuracy: CAT III 600V
Clamp jaw internal diameter: 54mm
Output connector: Hypertac

Downloads

HT97U

STANDARD CLAMPS FOR AC CURRENT

Codmetel: HP000972

Measuring range: 0.1÷1000A
Basic accuracy: ± 1.0%reading
Measurement category: CAT III 600V
Clamp jaw internal diameter: 54mm
Output connector: Hypertac

Downloads

HT97U - Datasheet

HT98U

STANDARD CLAMP FOR DC CURRENT

Codmetel: HP00098U

In combination with Multimeters and Clamps, the NOCANBA adapter (optional accessory) is required.

In combination with the PQA820 instrument, the ACONBIN adapter (optional accessory) is required.

Measuring range: 1÷1000A
Basic precision: ±(1.0%reading +0.5A)
Basic accuracy: CAT III 600V
Clamp jaw internal diameter: 52mm
Output connector: Hypertac

Downloads

HT98U - Electric specifications

TK107

TEMPERATURE OF AIR AND GAS

Codmetel: HA110000

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK108

INTERNAL TEMPERATURE OF LIQUIDS AND SEMI-SOLID SUBSTANCES

Codmetel: HA110001

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK109

INTERNAL TEMPERATURES OF LIQUID AND SOLID SUBSTANCES, FRUIT AND FOOD

Codmetel: HA110002

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK110

TEMPERATURE OF SURFACES

Codmetel: HA110003

Probes: K-type thermocouple
Operating temp.: -40÷400°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK111

TEMPERATURE OF SURFACES WITH 90° FIXED TIP

Codmetel: HA110004

Probes: K-type thermocouple
Operating temp.: -40÷400°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

NOCANBA

HYPERTAC ADAPTER FEMALE MALE BANANA

Codmetel: HA00NOCA

Downloads

YAAMK0001HT0

PAIR OF TEST LEADS ALLIGATOR CLIPS COLOUR RED/BLACK 4MM

Codmetel: HA000144

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Maximum opening of alligator clip: 3cm
Banana diameter: 4mm

Can only be used with YAAMK0000HT0 leads

F3000U

Codmetel: HP03000U

AC flexible clamp with 30/300/3000A full scales

Downloads

pdf_F3000U_En1-00.pdf

F3000U_CE_V1.03.pdf

man_F3000U_En1-00.pdf

HT4006

AC/DC current clamp with 40/400A full scales

Codmetel: 2058

Measurement range: 0.1A÷40A AC/DC (40A range)
Measurement range: 0.5A÷400A AC/DC (400A range)
Basic accuracy: ± 2.5%reading
Measurement category: CAT III 600V, CAT IV 300V to ground
Max cable diameter: 30mm
Output connector: safety banana, cable length 1m

Downloads

pdf_HT4006_En1-00.pdf

SP-2002

Strap with magnetic termination

Codmetel: HA002002

Strap with magnetic termination for attaching or hanging tools:

HT61, HT62, HT63, HT64, HT65
JUPITER
NEPTUNE

ECLIPSE

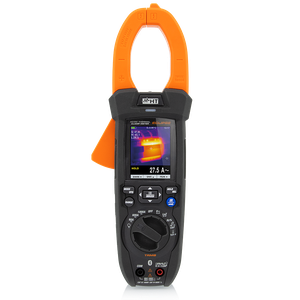

AC/DC TRMS 1000A clamp meter with integrated thermal imager
