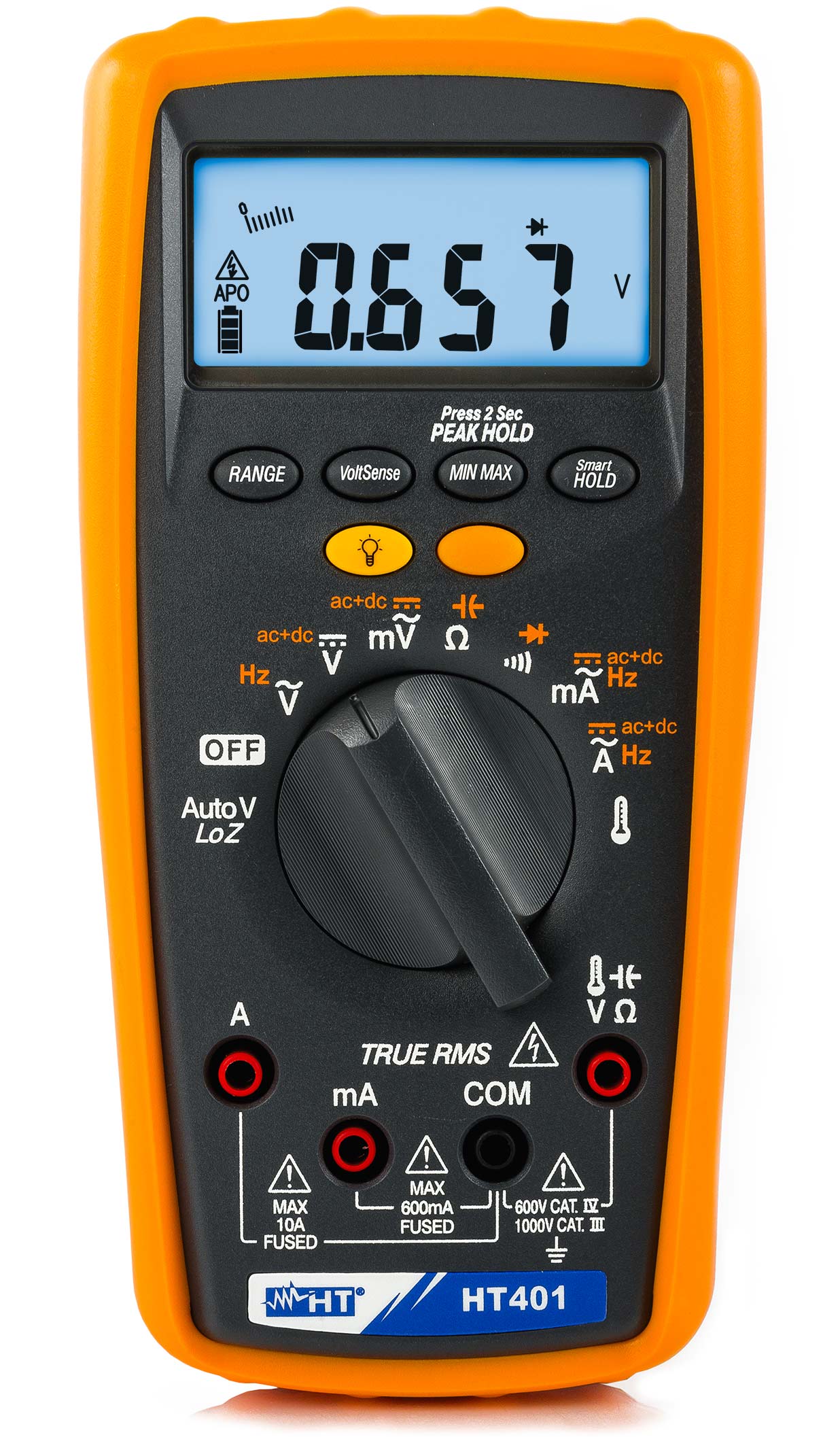

Professional TRMS multimeter with AC + DC measurement and low-impedance input LoZ

HT401

Professional TRMS multimeter with AC + DC measurement and low-impedance input LoZ

OVERVIEW
SPEC
DOWNLOAD
MEDIA
ACCESSORIES

Codmetel: HR000401

Multimetro professionale TRMS con misura AC + DC ed ingresso a bassa impedenza LoZ

Professional digital multimeter in TRMS with 6000 measuring spots which mainly carries out measurements of AC/DC voltage and AC/DC current.

Among the many functions of the device there are the AC+DC mode, used to consider also continuous components possibly overlapping the alternate signal and AC voltage measurements in conditions of low impedance (LoZ) in order to reduce the influences when measuring between adjacent conductors.

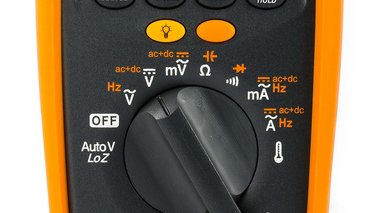

Functions

TRMS
AC/DC voltage	AC+DC 1000V
AC/DC current	AC+DC 10A
Frequency
Resistance
Continuity with buzzer
Capacity
Diode test
Temperature with K-type probe
Measurement category	CAT IV
LoZ Input
Weight
Size (LxWx H) (mm)

Guidelines

CE MARK

EMC 2014/30/EU

EMC: IEC/EN61326

IEC/EN61010-1

LVD 2014/35/EU

Downloads


Tutorials

STANDARD ACCESSORIES

TK101

K-TYPE WIRE PROBE

Codmetel: HA000108

Probes: K-type thermocouple
Operating temp.: -40÷250°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

T10

ADAPTER FOR CONNECTION OF TK TEMPERATURE

Codmetel: HA100010

This adapter can be used with all multimeters and clamp meters capable of carrying out temperature measurements.

Downloads

Batteries and user manual

Batteries and user manual

Codmetel: -

4324-2

Pair of test tips red, black 2/4mm straight banana

Codmetel: HA000765

Measurement category: CATII 1000V without cap (CATIII 1000V and CATIV 600V with cap)
Lead overall length: 15cm
Tip length: 18mm
Tip diameter: 2mm without lantern / 4mm with lantern
Cable length: 120cm cable only (140 with banana and tip)
Banana diameter: 4mm

OPTIONAL ACCESSORIES

B80

Codmetel: HA001180

Bag for transporting small-sized multimeters, clamps and accessories.

Downloads

KIT4000A

PAIR OF LEADS WITH 2MM TIP, COMPATIBLE WITH MULTIMETERS AND CLAMP METERS

Codmetel: HA000174

Measuring range: 10A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 13.5cm
Tip length: 1.9cm
Tip diameter: 2mm
Cable length: 1.5m
Banana diameter: 4mm, 90°

TK107

TEMPERATURE OF AIR AND GAS

Codmetel: HA110000

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK108

INTERNAL TEMPERATURE OF LIQUIDS AND SEMI-SOLID SUBSTANCES

Codmetel: HA110001

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK109

INTERNAL TEMPERATURES OF LIQUID AND SOLID SUBSTANCES, FRUIT AND FOOD

Codmetel: HA110002

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK110

TEMPERATURE OF SURFACES

Codmetel: HA110003

Probes: K-type thermocouple
Operating temp.: -40÷400°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK111

TEMPERATURE OF SURFACES WITH 90° FIXED TIP

Codmetel: HA110004

Probes: K-type thermocouple
Operating temp.: -40÷400°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

404-IECN

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400N

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

4717-S-IEC100B

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170B

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

5001-V

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001V

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

5004-IECN

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

6009-IECN

RIGID ALLIGATOR CLIP

Codmetel: HA60090N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 1.7cm
Overall length: 15.5cm
Banana diameter: 4mm

Downloads

6007-IECN

FLEXIBLE ALLIGATOR CLIP

Codmetel: HA60070N

Measuring range: 6A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.6cm
Overall length: 17.5cm
Banana diameter: 4mm

Downloads

44100

SET OF 2 4MM BANANA-BANANA CABLES, 2 LEADS 402-IECN+R, 2 ALLIGATOR CLIPS 6009-IECN+R + 2 LONG CLAMP TERMINALS AND A SET OF ALLIGATOR CLIPS KITMPPDCC

Codmetel: HA441000

Kit of cables, leads and alligator clips.

Downloads

425

SET OF 2 4MM BANANABANANA CABLES, 2 LEADS WITH INTERCHANGEABLE TIP AND 2 FLEXIBLE

Codmetel: HA425000

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Cable length: 2m
Maximum opening of alligator clip: 4cm
Banana diameter: 4mm

Downloads

404-IECB

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400B

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

4717-S-IEC100N

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

4717-S-IEC100R

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

5001-N

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001N

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

5001-B

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001B

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

6007-IECR

FLEXIBLE ALLIGATOR CLIP

Codmetel: HA60070R

Measuring range: 6A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.6cm
Overall length: 17.5cm
Banana diameter: 4mm

Downloads

5001-R

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001R

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

6009-IECR

RIGID ALLIGATOR CLIP

Codmetel: HA60090R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 1.7cm
Overall length: 15.5cm
Banana diameter: 4mm

Downloads

404-IECV

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400V

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

5004-IECB

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040B

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

5004-IECR

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

5004-IECV

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040V

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads
