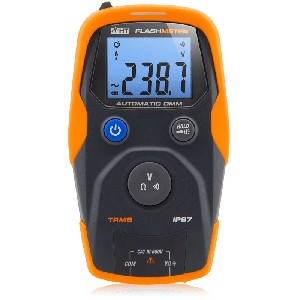

FLASHMETER is a compact DMM capable of carrying out TRMS voltage measurements up to 600V as well as resistance measurements automatically under autorange, just connecting input terminals. It was designed in compliance with safety standards IEC/EN61010-1 with double insulation protection under CAT IV 600V. FLASHMETER is provided with a white light torch, a probe to detect AC voltage without contact and is water resistant according to IP67 .
Functions
| TRMS
|
|
| Automatic recognition of internal functions
|
|
| AC/DC voltage
|
600V |
| AC/DC current
|
100A DC/CA |
| Resistance
|
400.0kΩ |
|
|
|
| Continuity with buzzer
|
|
| Integrated white light illuminator
|
|
| Measuring counts
|
4000 |
| Maximum diameter for clamp
|
10mm |
| Backlight
|
|
| Auto Power OFF
|
|
| Protection rating
|
IP67 |
| Protection category
|
CAT IV 600V |
| Power supply
|
2 x 1.5V AAA LR03 |
| Weight in grams (batteries included)
|
320 gr. |
| Size (LxWx H) (mm)
|
140x80x45 - 150x35x25 |
Guidelines
-
CE MARK
-
EMC 2014/30/EU
-
EMC: IEC/EN61326
-
IEC/EN61010-1
-
LVD 2014/35/EU
STANDARD ACCESSORIES
Calibration report
Calibration report
Codmetel: -
Quick Guide and Downloadable Manual
B80
Codmetel: HA001180
Bag for transporting small-sized multimeters, clamps and accessories.
4324-2
Pair of test tips red, black 2/4mm straight banana
Codmetel: HA000765
- Measurement category: CATII 1000V without cap (CATIII 1000V and CATIV 600V with cap)
- Lead overall length: 15cm
- Tip length: 18mm
- Tip diameter: 2mm without lantern / 4mm with lantern
- Cable length: 120cm cable only (140 with banana and tip)
- Banana diameter: 4mm

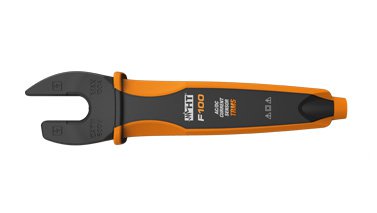

F100
Fork clamp
Fork clamp - TRMS AC/DC current sensor
OPTIONAL ACCESSORIES
404-IECN
MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP
Codmetel: HA40400N
- Measuring range: 36A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 11.5cm
- Tip length: 1.9cm
- Tip diameter: 4mm
4312-2
PAIR OF LEADS WITH 4MM TIP AND RED/BLACK PROTECTION AND STRAIGHT BANANA CONNECTOR
Codmetel: HA431200
- Measuring range: 20A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Lead overall length: 15.6cm
- Tip length: 1.8cm
- Tip diameter: 4mm
- Length of retractable tip protection: 2cm
- Cable length: 1m
- Banana diameter: 4mm
402-IEC#
MEASURING LEAD WITH SLIM TIP
Codmetel: HA40200R
- Measuring range: 16A / 1000V
- Measurement category: CAT IV 600V
- Overall length: 14cm
- Tip length: 1.8cm
- Tip diameter: 4mm
- Banana diameter: 4mm
4413-2
PAIR OF LEADS WITH 4MM TIP AND RED/BLACK PROTECTION AND 90° BANANA CONNECTOR
Codmetel: HA441200
- Measuring range: 20A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Lead overall length: 13.4cm
- Tip length: 1.8cm
- Tip diameter: 4mm
- Cable length: 1m
- Banana diameter: 4mm
6009-IECN
RIGID ALLIGATOR CLIP
Codmetel: HA60090N
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 1.7cm
- Overall length: 15.5cm
- Banana diameter: 4mm
6007-IECN
FLEXIBLE ALLIGATOR CLIP
Codmetel: HA60070N
- Measuring range: 6A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 2.6cm
- Overall length: 17.5cm
- Banana diameter: 4mm
4717-S-IEC100N
LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE
Codmetel: HA47170N
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Lead overall length: 15.6cm
- Tip length: 1.8cm
- Tip diameter: 4mm
- Length of retractable tip protection: 2cm
- Cable length: 1.5m
- Banana diameter: 4mm
4717-S-IEC100R
LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE
Codmetel: HA47170R
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Lead overall length: 15.6cm
- Tip length: 1.8cm
- Tip diameter: 4mm
- Length of retractable tip protection: 2cm
- Cable length: 1.5m
- Banana diameter: 4mm
5001-N
MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE
Codmetel: HA05001N
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 1.5m
- Banana diameter: 4mm
6007-IECR
FLEXIBLE ALLIGATOR CLIP
Codmetel: HA60070R
- Measuring range: 6A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 2.6cm
- Overall length: 17.5cm
- Banana diameter: 4mm
5001-R
MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE
Codmetel: HA05001R
- Measuring range: 10A / 1000V
- Measurement category: CAT IV 600V / CAT III 1000V
- Overall length: 1.5m
- Banana diameter: 4mm
6009-IECR
RIGID ALLIGATOR CLIP
Codmetel: HA60090R
- Measuring range: 20A / 1000V
- Measurement category: CAT III 1000V
- Maximum opening of alligator clip: 1.7cm
- Overall length: 15.5cm
- Banana diameter: 4mm
