Clamp meter AC 600A CAT IV

HT9012

Clamp meter AC 600A CAT IV

OVERVIEW
SPEC
DOWNLOAD
ACCESSORIES

Codmetel: HP009012

Professional clamp meter AC 600A TRMS, CAT IV 600V

Professional clamp meter HT9012 has been designed to measure AC current up to 600A and AC/DC voltage up to 1000V to reach CAT IV 600V and CAT III 1000V in compliance with standard IEC/ EN61010-1.

The clamp is provided with a wide backlit display with 6000 measuring spots and an auto power off function to preserve its battery.

Functions

Maximum diameter for clamp
Measuring counts
Current measuring range	600A
AC/DC current	AC
AC/DC voltage
Resistance and continuity test with buzzer
Diode test

Backlight
Autorange
Auto power off
Data HOLD
MAX
Power supply
Measurement category
Weight in grams (batteries included)
Size (LxWxH) (mm)

Guidelines

CE MARK

EMC 2014/30/EU

EMC: IEC/EN61326

IEC/EN61010-1

LVD 2014/35/EU

Downloads

Tutorials

STANDARD ACCESSORIES

Quick Guide and Downloadable Manual

Quick Guide and Downloadable Manual

Batteries

Codmetel: -

Carrying bag HT9012

Carrying bag HT9012

Codmetel: -

4324-2

Pair of test tips red, black 2/4mm straight banana

Codmetel: HA000765

Measurement category: CATII 1000V without cap (CATIII 1000V and CATIV 600V with cap)
Lead overall length: 15cm
Tip length: 18mm
Tip diameter: 2mm without lantern / 4mm with lantern
Cable length: 120cm cable only (140 with banana and tip)
Banana diameter: 4mm

OPTIONAL ACCESSORIES

B80

Codmetel: HA001180

Bag for transporting small-sized multimeters, clamps and accessories.

Downloads

KIT4000A

PAIR OF LEADS WITH 2MM TIP, COMPATIBLE WITH MULTIMETERS AND CLAMP METERS

Codmetel: HA000174

Measuring range: 10A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 13.5cm
Tip length: 1.9cm
Tip diameter: 2mm
Cable length: 1.5m
Banana diameter: 4mm, 90°

404-IECN

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400N

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

4413-2

PAIR OF LEADS WITH 4MM TIP AND RED/BLACK PROTECTION AND 90° BANANA CONNECTOR

Codmetel: HA441200

Measuring range: 20A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Lead overall length: 13.4cm
Tip length: 1.8cm
Tip diameter: 4mm
Cable length: 1m
Banana diameter: 4mm

Downloads

5004-IECN

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

YAAMK0001HT0

PAIR OF TEST LEADS ALLIGATOR CLIPS COLOUR RED/BLACK 4MM

Codmetel: HA000144

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Maximum opening of alligator clip: 3cm
Banana diameter: 4mm

Can only be used with 4324-2 leads

6009-IECN

RIGID ALLIGATOR CLIP

Codmetel: HA60090N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 1.7cm
Overall length: 15.5cm
Banana diameter: 4mm

Downloads

6007-IECN

FLEXIBLE ALLIGATOR CLIP

Codmetel: HA60070N

Measuring range: 6A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.6cm
Overall length: 17.5cm
Banana diameter: 4mm

Downloads

44100

SET OF 2 4MM BANANA-BANANA CABLES, 2 LEADS 402-IECN+R, 2 ALLIGATOR CLIPS 6009-IECN+R + 2 LONG CLAMP TERMINALS AND A SET OF ALLIGATOR CLIPS KITMPPDCC

Codmetel: HA441000

Kit of cables, leads and alligator clips.

Downloads

425

SET OF 2 4MM BANANABANANA CABLES, 2 LEADS WITH INTERCHANGEABLE TIP AND 2 FLEXIBLE

Codmetel: HA425000

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Cable length: 2m
Maximum opening of alligator clip: 4cm
Banana diameter: 4mm

Downloads

4717-S-IEC100N

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

4717-S-IEC100R

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

5001-N

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001N

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

6007-IECR

FLEXIBLE ALLIGATOR CLIP

Codmetel: HA60070R

Measuring range: 6A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.6cm
Overall length: 17.5cm
Banana diameter: 4mm

Downloads

5001-R

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001R

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

6009-IECR

RIGID ALLIGATOR CLIP

Codmetel: HA60090R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 1.7cm
Overall length: 15.5cm
Banana diameter: 4mm

Downloads

5004-IECR

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

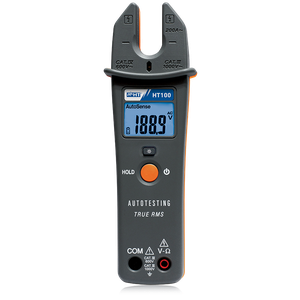

HT100
