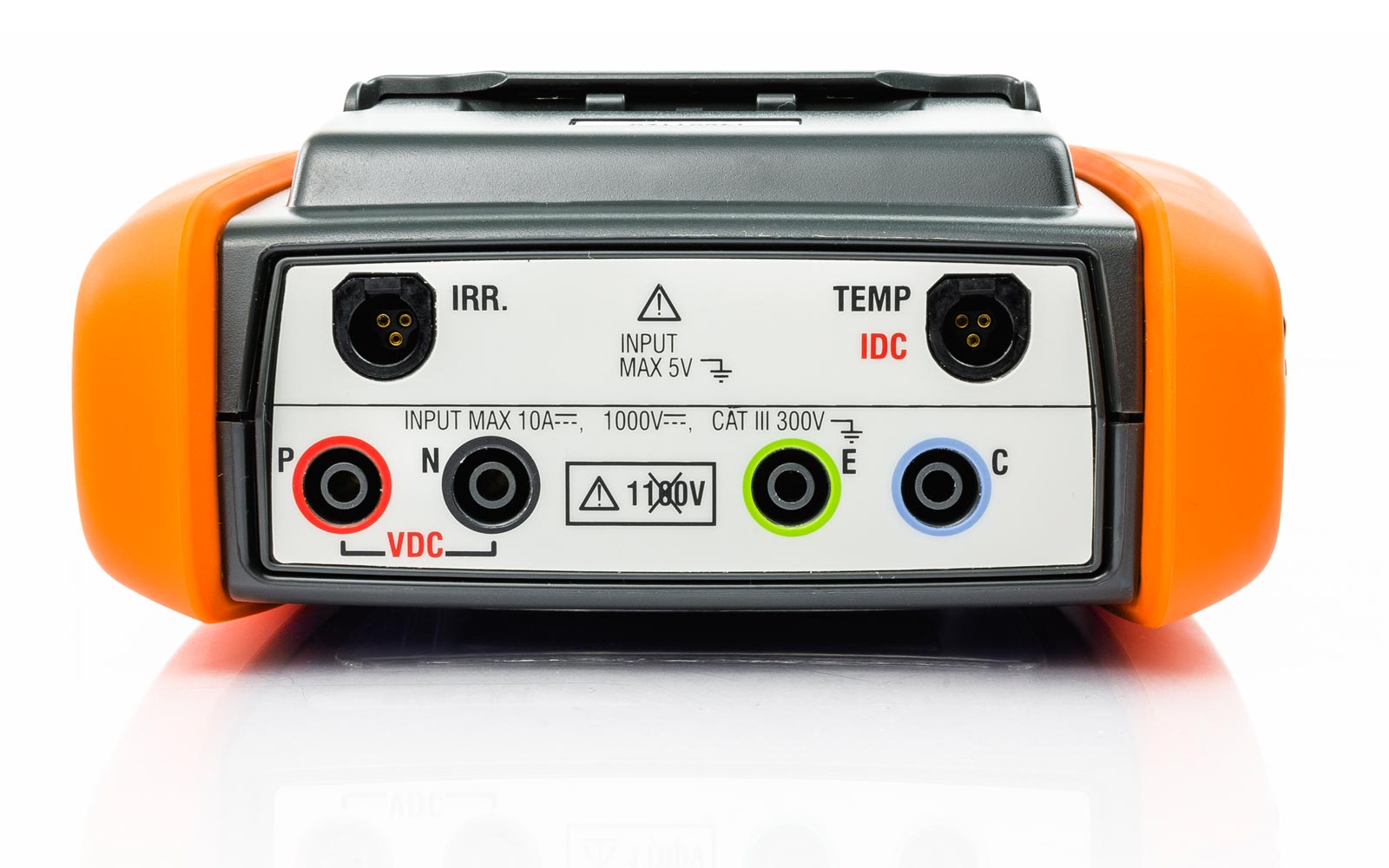

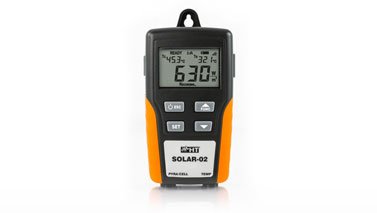

SOLAR-515w allows both testing a single-phase (three-phase with optional MPP300) photovoltaic system and verifying I-V curve. Thanks to remote unit SOLAR02, it is possible to test the system complying with the requirement of simultaneity as provided for by the reference standard. SOLAR02 is a datalogger which, synchronized with SOLAR-515w, acquires the data relevant to irradiation and temperature while tests carried out by SOLAR-515w are carried out.
For measuring I-V curve, SOLAR-515w manages an internal database of the modules, which can be updated at any time by the user by comparing the measured data with the rated values, thus allowing the immediate evaluation whether the string or the module fulfills the efficiency parameters declared by the manufacturer. Current and voltage measurement at modules/strings output is measured with the 4-terminal method, which allows extending possible measuring cables without considering any compensation of their resistance, thus obtaining always precise measurements. At the end of the test, the display of I-V curve on the screen is a clear indication about the compliance with the specifications declared by the panel manufacturer.
Available through HT China office on the Chinese market only. For the international market please refer to SOLAR I-Ve.

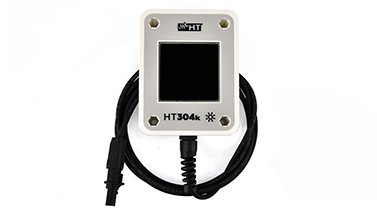

Measuring range: 100 ÷ 1400W/m2
Basic accuracy: ±3.0% reading
Type of cell: Monocrystalline
FOV angle: >160°
IP rating: IP65 according to IEC/EN60529
Output connector: custom 3-pin HT connector
Connection cable: approx. 2m
Dimensions (WxDxH): 111x85x28mm
Weight: 240g

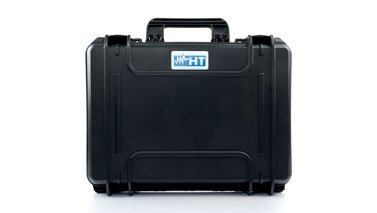

VA500 is the ideal solution for those who want to protect their devices from water, dust and hostile environments. It is also suitable to contain all accessories for a perfect management of the job.

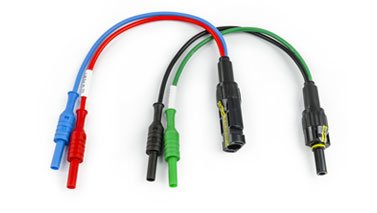

This pair of adapters allows for the connection o devices like I-V400 and Solar I-V to photovoltaic panels with connectors MC4.

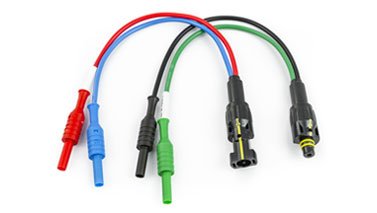

This pair of adapters allows for the connection of devices like I-V400 and Solar I-V to photovoltaic panels with connectors MC3.

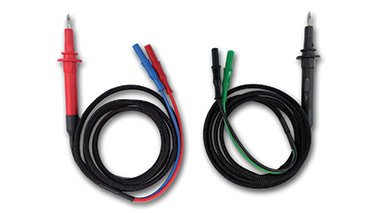

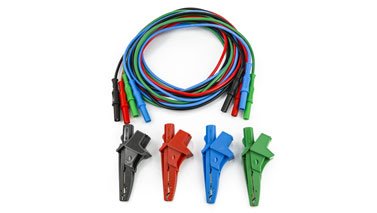

While used with SOLAR I-Ve, I-V500w and I-V400w in AUTO mode, this set of cables allows quick I-V curve tracing.
