TRMS single-phase voltage data logger

XL423

TRMS single-phase voltage data logger

TRMS single-phase voltage data logger

XL423 is a Data Logger capable of measuring and recording the true root mean square(TRMS) value of AC voltage up to 600V in single-phase electric systems for different applications (evaluation of mains voltage, load unbalance, etc.).

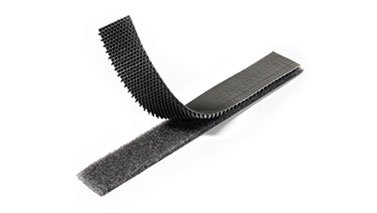

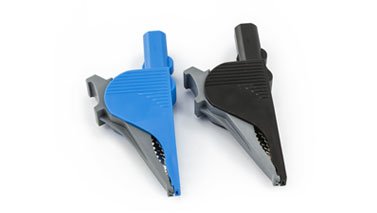

The device has a comfortable fully mobile structure complete with cables for measuring voltage with safety alligator clips. Thanks to a an advanced memory management algorithm it is possible to monitor a system even for a long time. The device starts recording with a sampling period which can be selected through software among 1, 6, 30 and 60 seconds and, when memory is almost full, the previously recorded values are “re-sampled” according to the subsequent value of the sampling period, thus freeing part of the memory; the device then goes on recording new values, using the new measuring interval. In this way, it is possible to keep the device recording up to approximately 1 year. Each recording is kept stored in the internal memory and can be downloaded and displayed on the PC always through a dedicated software. Data Logger XL423 is also provided with a special adhesive strap which makes it possible to place it in any place in the installation where measuring is needed. The high protection rating (IP65) makes this device fully reliable also under extreme operating conditions.

Functions
TRMS
AC voltage in single-phase/three-phase systems Single-phase up to 600VAC
Max number of simultaneously selectable parameters 1
Recording with selectable integration period 1s, 6s, 30s, 1min, 5min
Indicative memory duration (single-/three-phase in days @ PI=5min) 455
Internal memory 1MB
Protection rating IP65
Protection category CAT IV 600V / CAT III 1000V
Power supply 2x batteries AA

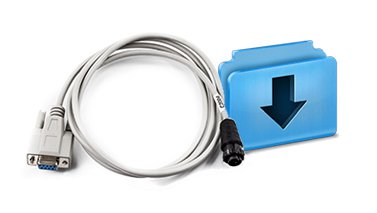

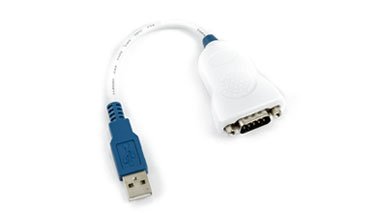

Provided PC interface with software for Windows
Size (LxWx H) (mm) 120x80x43
Weight in grams (batteries included) 500
Guidelines
  • CE MARK
  • EMC 2014/30/EU
  • EMC: IEC/EN61326
  • IEC/EN61010-1
  • LVD 2014/35/EU

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES
