Professional multimeter with insulation measurement up to 1000V

HT701

Professional Multimeter with insulation measurement up to 1000V

OVERVIEW
SPEC
DOWNLOAD
ACCESSORIES

Codmetel: HR000701

Professional Multimeter with insulation measurement up to 1000V

Professional TRMS multimeter with 10.000 measuring spots and measurement of insulation resistance with selectable test voltage between 50, 100, 250, 500, 1000VDC.

HT701 is capable of saving the results of measurements in its internal memory and has been designed in compliance with safety standard IEC/ EN61010-1 in CAT III 1000V and CAT IV 600V with double protective insulation.

Functions

TRMS
AC/DC voltage	1000V
AC/DC current	10A
Frequency
Resistance
Continuity with buzzer
Capacity
Diode test
Temperature with K-type probe
Measurement of insulation up to 1000V
Measuring range	CAT IV

Guidelines

CE MARK

EMC 2014/30/EU

EMC: IEC/EN61326

IEC/EN61010-1

IEC/EN61557-2

LVD 2014/35/EU

UNE20460

Downloads

Tutorials

STANDARD ACCESSORIES

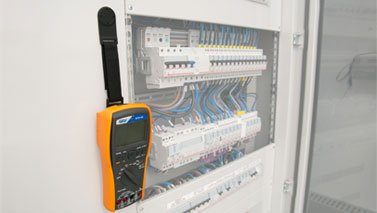

Strap with magnetic terminal

Strap with magnetic terminal

Anti-shock protection shell

Anti-shock protection shell

Codmetel: -

TK101

K-TYPE WIRE PROBE

Codmetel: HA000108

Probes: K-type thermocouple
Operating temp.: -40÷250°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

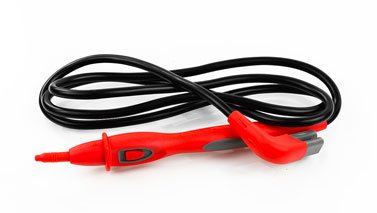

PR701

REMOTE LEAD WITH TEST STARTING BUTTON FOR HT701

Codmetel: HA000701

Measuring range: 10A / 1000V
Measurement category: CAT III 1000V
Overall length: 18.3cm
Tip length: 1.8cm
Tip diameter: 2mm

T10

ADAPTER FOR CONNECTION OF TK TEMPERATURE

Codmetel: HA100010

This adapter can be used with all multimeters and clamp meters capable of carrying out temperature measurements.

Downloads

YAAMK0001HT0

PAIR OF TEST LEADS ALLIGATOR CLIPS COLOUR RED/BLACK 4MM

Codmetel: HA000144

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Maximum opening of alligator clip: 3cm
Banana diameter: 4mm

Can only be used with YAAMK0000HT0 leads

Batteries and user manual

Batteries and user manual

Codmetel: -

4324-2

Pair of test tips red, black 2/4mm straight banana

Codmetel: HA000765

Measurement category: CATII 1000V without cap (CATIII 1000V and CATIV 600V with cap)
Lead overall length: 15cm
Tip length: 18mm
Tip diameter: 2mm without lantern / 4mm with lantern
Cable length: 120cm cable only (140 with banana and tip)
Banana diameter: 4mm

OPTIONAL ACCESSORIES

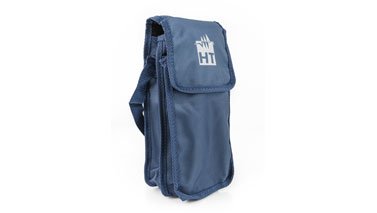

SP-6085

Soft carrying bag for devices of series M

Codmetel: HU000325

Downloads

KIT4000A

PAIR OF LEADS WITH 2MM TIP, COMPATIBLE WITH MULTIMETERS AND CLAMP METERS

Codmetel: HA000174

Measuring range: 10A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 13.5cm
Tip length: 1.9cm
Tip diameter: 2mm
Cable length: 1.5m
Banana diameter: 4mm, 90°

TK107

TEMPERATURE OF AIR AND GAS

Codmetel: HA110000

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK108

INTERNAL TEMPERATURE OF LIQUIDS AND SEMI-SOLID SUBSTANCES

Codmetel: HA110001

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK109

INTERNAL TEMPERATURES OF LIQUID AND SOLID SUBSTANCES, FRUIT AND FOOD

Codmetel: HA110002

Probes: K-type thermocouple
Operating temp.: -40÷800°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK110

TEMPERATURE OF SURFACES

Codmetel: HA110003

Probes: K-type thermocouple
Operating temp.: -40÷400°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

TK111

TEMPERATURE OF SURFACES WITH 90° FIXED TIP

Codmetel: HA110004

Probes: K-type thermocouple
Operating temp.: -40÷400°C
Response time: 4s
Accuracy at 100°C: ±2.2 reading (in compliance with IEC 584)

Downloads

404-IECN

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400N

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

4717-S-IEC100B

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170B

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

5001-V

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001V

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

5004-IECN

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

6009-IECN

RIGID ALLIGATOR CLIP

Codmetel: HA60090N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 1.7cm
Overall length: 15.5cm
Banana diameter: 4mm

Downloads

6007-IECN

FLEXIBLE ALLIGATOR CLIP

Codmetel: HA60070N

Measuring range: 6A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.6cm
Overall length: 17.5cm
Banana diameter: 4mm

Downloads

44100

SET OF 2 4MM BANANA-BANANA CABLES, 2 LEADS 402-IECN+R, 2 ALLIGATOR CLIPS 6009-IECN+R + 2 LONG CLAMP TERMINALS AND A SET OF ALLIGATOR CLIPS KITMPPDCC

Codmetel: HA441000

Kit of cables, leads and alligator clips.

Downloads

425

SET OF 2 4MM BANANABANANA CABLES, 2 LEADS WITH INTERCHANGEABLE TIP AND 2 FLEXIBLE

Codmetel: HA425000

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Cable length: 2m
Maximum opening of alligator clip: 4cm
Banana diameter: 4mm

Downloads

404-IECB

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400B

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

4717-S-IEC100N

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170N

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

4717-S-IEC100R

LEADS WITH RETRACTABLE PROTECTION CAP IP2X AND PROTECTION FUSE

Codmetel: HA47170R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Lead overall length: 15.6cm
Tip length: 1.8cm
Tip diameter: 4mm
Length of retractable tip protection: 2cm
Cable length: 1.5m
Banana diameter: 4mm

Downloads

5001-N

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001N

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

5001-B

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001B

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

6007-IECR

FLEXIBLE ALLIGATOR CLIP

Codmetel: HA60070R

Measuring range: 6A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.6cm
Overall length: 17.5cm
Banana diameter: 4mm

Downloads

5001-R

MEASURING CABLE WITH LENGTH 1.5M WITH VARIOUS COLOURS AVAILABLE

Codmetel: HA05001R

Measuring range: 10A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 1.5m
Banana diameter: 4mm

6009-IECR

RIGID ALLIGATOR CLIP

Codmetel: HA60090R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 1.7cm
Overall length: 15.5cm
Banana diameter: 4mm

Downloads

404-IECV

MEASURING LEAD WITH EXTRACTABLE PROTECTION CAP

Codmetel: HA40400V

Measuring range: 36A / 1000V
Measurement category: CAT IV 600V / CAT III 1000V
Overall length: 11.5cm
Tip length: 1.9cm
Tip diameter: 4mm

Downloads

5004-IECB

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040B

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

5004-IECR

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040R

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads

5004-IECV

ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA

Codmetel: HA50040V

Measuring range: 20A / 1000V
Measurement category: CAT III 1000V
Maximum opening of alligator clip: 2.3cm
Banana diameter: 4mm

Downloads
